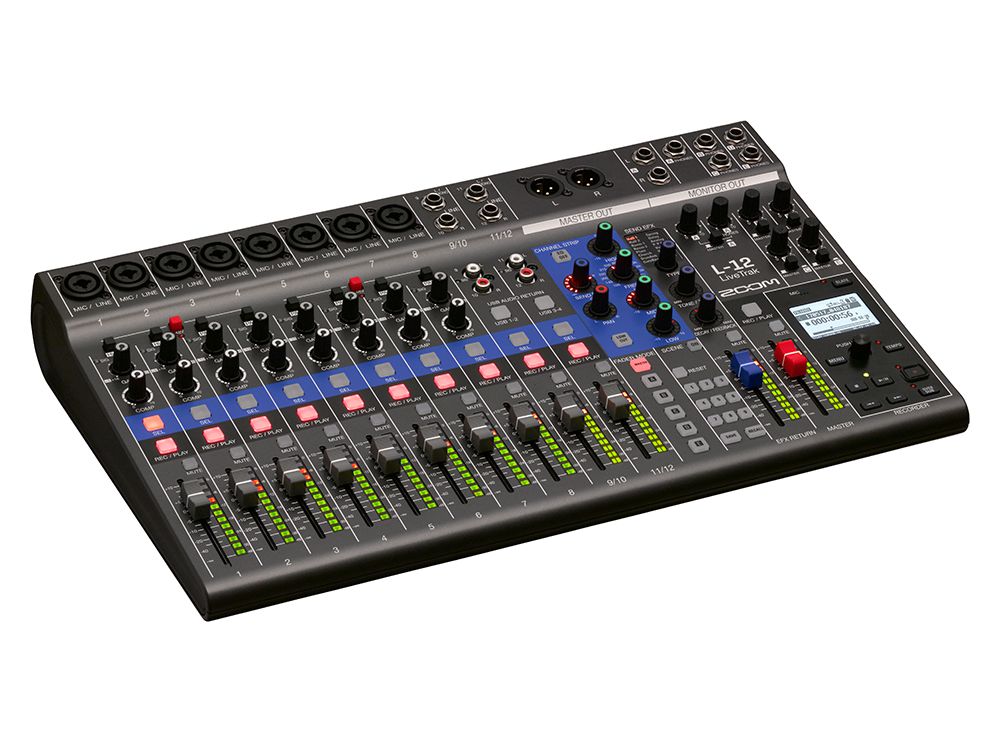

Zoom LiveTrak L-12

Mix, Record, Monitor, Playback, and Remix

With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

  Feature List

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TRS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to 0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch

Specs NUMBER OF INPUT AND OUTPUT CHANNELS

Inputs:	Mono (MIC/LINE): 8 Stereo (LINE): 2
Outputs:	MASTER OUT: 1    MONITOR OUT: 5

INPUTS

Mono (MIC/LINE):	Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
	Input gain | PAD OFF: +16 - +60 dB, PAD ON: −10 – +34 dB, Hi-Z ON: +6 - +50 dB
	Input impedance | XLR: 3 kΩ, TRS: 10kΩ/1 MΩ (when Hi-Z ON)
	Maximum input level | PAD OFF: 0 dBu (at 0 dBFS), PAD ON: +26 dBu (at dBFS)
	Phantom Power | +48 V
Stereo (LINE):	Type: TS phone/RCA pin (unbalanced) jacks
	Maximum input level : +10 dBu

OUTPUTS

MASTER OUT:	Type: XLR jacks (balanced)
	Maximum output level: +14.5 dBu
	Output impedance: 100 Ω
MONITOR OUT A (TRS):	Type: TRS phone jacks (balanced)
	Maximum output Level: +14.5 dBu
	Output impedance: 100 Ω
MONITOR OUT A-E (PHONES):	Type: Standard Stereo phone jacks
	Maximum output level: 42 mW + 42 mW at 60 Ω
	Output impedance: 100 Ω

BUSES

MASTER:	1
MONITOR:	5
SEND EFX:	1

CHANNEL STRIP

COMP:
LOW CUT:	75 Hz, 12 dB/OCT
EQ:	HIGH: 10 kHz, ± 15 dB, shelving, MID: 100 Hz-8 kHz, ±15 dB, peaking, LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS

Level segments:	12

SEND EFFECTS

16 types:	Hall 1 & 2 (reverb)
	Room 1 & 2(reverb)
	Plate (reverb)
	Church (reverb)
	DrumAmb (reverb)
	GateRev (reverb)
	Spring (reverb)
	Delay (delay)
	Analog (delay)
	P-P Dly (delay)
	Vocal 1-4 (delay + reverb)

RECORDER

Maximum simultaneous recording tracks:	14 at 44.1/48 kHz (12 channel + stereo mix). 12 at 96 kHz
Maximum simultaneous playback tracks:	12
Recording format:	WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media:	16 MB - 2 GB SD cards, 4 GB - 32 GB SDHC cards, 64 GB - 1 TB SDXC cards

AUDIO INTERFACE

44.1/48 kHz:	Recording: 14 channels, Playback: 4 channels
Bit depth:	24-bit
Interface:	USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

Windows:	OS: Windows® 8.1 / 10 / 11 (32bit/64bit) CPU: Intel® Core i3 or faster*USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
Mac:	OS: macOS® 10.14 ~ 15 CPU: Intel® Core i3 or fasterUSB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards.
iPhone/iPad:	OS： iOS 8 ~ 18, iPadOS 17 ~ 18 * Apple Lightning-to-USB Camera Adapter required.

CARD READER

Class:	Mass storage, USB 2.0 High Speed

USB HOST

Class:	USB 2.0 High Speed

SAMPLING RATE

	44.1/48/96 kHz

FREQUENCY CHARACTERISTICS

44.1 kHz:	-1.0 dB: 20 Hz - 20 kHz
96 kHz:	-3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE

Actual measurements:	-128 dB EIN (IHF-A) with +60 dB/150 Ω input

Display:	LCD with backlight (128x64 resolution)
Power supply:	ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption:	17W maximum
External dimensions:	445 mm (W) x 282 mm (D) x 70.5 mm (H) 17.5” (W) x 11.1” (D) x 2.78” (H)
Weight (main unit only):	2.53 kg / 5.58 lbs

Note: 0 dBu = 0.775 V



Here's what comes included with the L-12:

• AC adapter (AD-19)
• USB 2.0 cable
• Quick Guide
