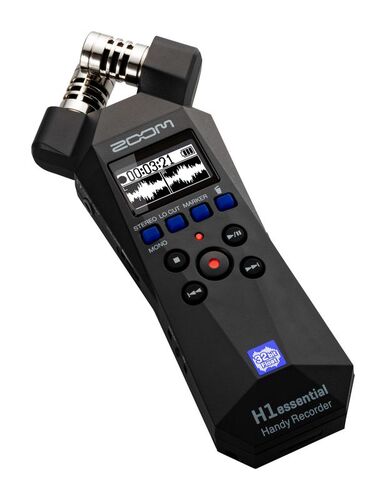

Zoom H1 Essential
32-bit float recording
Product Code: ZOOMH1E
$176.00
Pay it in 4 payments of $44.00 with
| Buy 1+ | $176.00 (incl. GST) |
With the push of a button the H1essential captures perfect audio for musicians, podcasters, filmmakers, and content creators. Simply hit record and discover the power of 32-bit float.
- 32-bit float recording: perfect audio with no need to set gain
- 120 dB SPL 90º XY Mics
- Records up to 96kHZ sample rate
- New OLED Display
- Overdubbing, auto record, pre-record and timer functions
- USB Microphone Function
- Audio guidance function for the blind and visually impaired
- 10 hours of battery life on 2 AAA Batteries or USB-C Bus power
Specs
INPUTS
Built-in mic90º XY stereo format
Directionality Unidirectional
Sensitivity –37 dB/1 Pa at 1 kHz
Maximum sound pressure input 120 dB SPL
MIC/LINE IN jack Connector Stereo mini jack
Input impedance 2 kΩ or more
Plug-in power 2.5 V
OUTPUTS
PHONE / LINE OUT jack Connector Stereo mini jack
Maximum output level 20 ｍW + 20 ｍW(into 32Ω load)
Output impedance 10 Ω or less
Built-in speaker Type 20 x 30mm oval dynamic speaker
Practical maximum output 250mW
RECORDER
Recording formats WAV
44.1/48/96 kHz、32-bit Float
Stereo / Mono
BWF and iXML formats supported
Recording media 4–32GB cards compatible with the microSDHC specification
64GB–1TB cards compatible with the microSDXC specification
DISPLAY
OLED 128 x 64
USB
Connector USB Type-C
• Use a USB cable that supports data transfer.
USB Mic USB 2.0 High Speed
48 kHz, 24-bit
File transfer USB 2.0 High Speed
POWER
2 AA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter ZOOM AD-17: DC 5 V/1 A
• USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
Alkaline batteries About 10 hours
NiMH batteries (800 mAh) About 9 hours
Lithium batteries About 18 hours
Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
Power consumption 5 W maximum
Dimensions 53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H)
Weight (including batteries) 92 g
Note: 0 dBu = 0.775 Vrms
