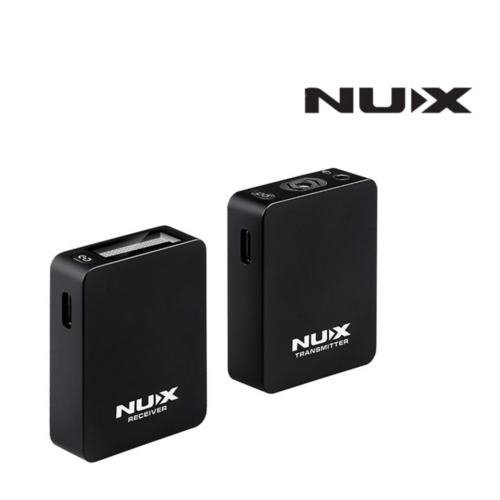

NUX B-10 Vlog 2.4GHz Wireless Vlog System

Wireless Microphone System

NUX B-10 Vlog is a compact and lightweight wireless microphone system, consisting of a receiver and a transmitter, which can achieve a wireless distance of up to 30 meters. NUX B-10 can provide a stable wireless connection, record high-quality, low-noise, low-latency audio. It’s compatible with most existing cameras/mobile phones/tablets. And it’s a solution for Vlog shooting, product evaluation, event speeches, live broadcasts and web conferences.

B-10 Vlog equips a high-quality omnidirectional microphone unit, which can pick up sounds from different directions. It makes 44.1Khz/24bit high-quality recording with latency as low as 5ms and intelligent noise reduction. It ensures the sound and video are synchronized.

The transmitter has a 3.5mm TRS input for external lavalier microphone. A knob-style fur windscreen are also provided to dampen wind noise in windy outdoor weather conditions for extremely clear, professional sound in any situation.

Stable Wireless Connection

NUX B-10 Vlog features universal 2.4GHz digital transmission technology, and the transmission distance is up to 30 meters. Whether in dense urban environments, shopping malls or offices, whether shooting indoors or outdoors, the B-10 Vlog can provide you with stable and reliable wireless audio transmission.

Multi-level Gain Control

The Gain of the B-10 Vlog can be adjusted in 5 steps from -12dB to +12dB, helping you to record more sound details.

High-definition OLED display

B-10 Vlog has a built-in high-definition OLED display, and with the optimized UI design, it clearly displays the current working status of the wireless connection, which is convenient for shooting.

4 hours long battery life

The battery life of the B-10 Vlog can be up to 4 hours for the transmitter and 6 hours for the receiver. It comes with a USB-C Y-cable, you can charge the transmitter and receiver at the same time.

Included Accessories

1 x fur windshield, 1 x USB-C Y-cable, 1 x TRS(female) to TRRS(male) adaptor cable for Mobile Phone(CTIA), 1 x 3.5mm TRS cable for RX to Camera, 1x 3.5mm TRS Y-cable for 2 RXs to Camera, 1 x Cold-shoe RX mount

Specifications

Operating Frequency Band 2.4 GHz

Operation Length < 100 feet (30m)

Sampling Rate 24bit / 44.1 kHz

Frequency Response 50Hz-20kHz

Latency < 5ms

Dynamic Range 96dB

THD+ Noise <0.2%@1 kHz

Built-in Battery Capacity (TX & RX) 400mAh/3.7V

Maximum Input Level(3.5mm TRS) 100mVrms(-20dBV)

Battery Running Time 4 hours for TX，6 hours for RX

Microphone on TX Omnidirectional Electret Condenser Microphone

Maximum Sound Pressure Level 110dB SPL

Dimensions(TX/RX) 51 mm(L) × 42mm(W) x 13mm(H)

Weight(TX/RX) each 28g
