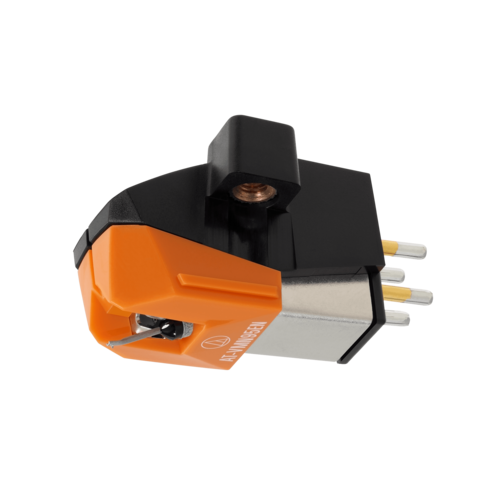

Audio Technica AT-VM95EN Dual Moving Magnet Cartridge
Elliptical Nude stylus
Product Code: N 903
Product description
The AT-VM95EN, features a Nude Elliptical Diamond. The construction of the stylus being a one piece diamond with a round shank inserted in the cantilever creates a lighter and more rigid transmission system than a diamond tip bonded on a round titanium shank such as in the AT-VM95E. Also the use of nude diamond implies a substantial difference in pricing, yet the quality of the reproduction will be immediately noticed, specifically in the fidelity of high frequencies and in the quality of the transient responses.
Specifications:
Model: AT-VM95EN
Type: Dual Magnet
Mounting: ½" centres
Frequency Response: 20 - 23,000Hz
Channel Separation: 22dB (at 1kHz)
Output Channel Balance: 2.0dB
Output Voltage: 3.5mV (mV at 1kHz, 5cm/sec)
Vertical Tracking Angle: 23o
Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0g)
Stylus Shape: Elliptical
Stylus Size: 0.3mil x 0.7 mil
Stylus Construction: Nude Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 3.3 KΩ (1 kHz)
Coil Inductance: 550mH (1kHz)
DC Resistance: 485Ω
Static Compliance: 20 x 10-6cm/dyne
Dynamic Compliance: 7 x 10-6cm/dyne (100Hz)
Wire used for Coil: T.P. Copper
Recommended Load Impedance: 47 KΩ
Recomended Load Capitance: 100 - 200pF
Weight: 6.1g
Dimensions: H17.2 x W18.9 x D28.3mm
Replacement Stylus: AT-VMN95EN
Audio Technica
Audio-Technica was established in 1962 in Tokyo, Japan by Hideo Matsushita as a phonograph cartridge manufacturer. Its first products were the AT-1 and the AT-3 MM stereo phono cartridges. Business rapidly developed and Audio-Technica expanded into other fields....
