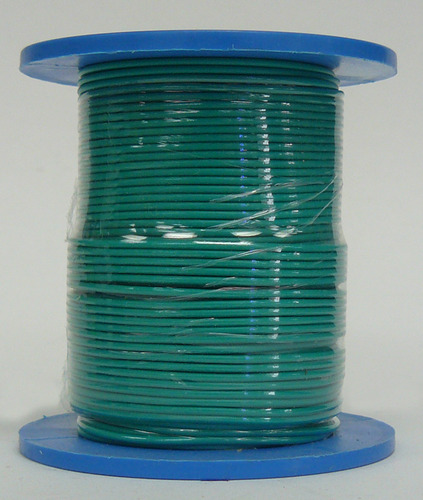

Hook up Wire - Green Stranded
13 x 0.12mm 26 AWG - 50 Metres
Product Code: CBL0300G
Hook up Wire - Green Stranded
This is a spool of great quality hook-up wire, 50 metres in length This is stranded wire, which is much more flexible than solid wire and is good for projects where you need the wire to be able to bend. You can easily use this wire while prototyping on a breadboard by stripping the end and giving the strands a firm twist. The gauge is 26AWG and here are the technical details for that number! Wire and Cable| Conductor Overall Diameter | 1.8mm |
| Resistance per Linear Metre | 136.5mΩ |
| Wire Category | Hook up / power |
| Retail Sales Unit | Roll |
| Roll Length | 50m |
| Individual Conductor Strand Diameter | 0.12mm |
| AWG | 26 |
| Number of Conductor Strands | 13pc |
| DC current rating | 1.0A |
