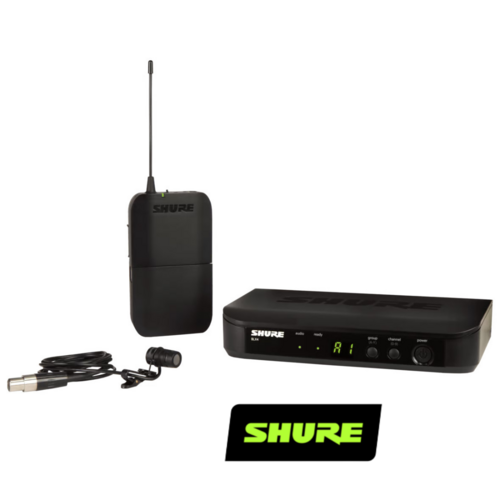

Shure BLX14-WL185 Lapel Radio Mic System
with WL185 Lapel
Product Code: BLX14-WL185
The Shure BLX14-WL185 Lapel Radio Mic System with WL185 brings a presentation microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the compact and lightweight BLX4 single-channel tabletop receiver with internal antennas, ideal for portable use.
The BLX14/WL185 also includes a WL185 Cardioid TQG lavalier microphone offers an interchangeable cartridge and consists of a rotatable tie clip, and snap-fit foam windscreen and a bodypack transmitter.
The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
Key Features: Cardioid TQG Lavalier MicrophoneCardioid TQG lavalier microphone offers an interchangeable cartridge and consists of a rotatable tie clip, and snap-fit foam windscreen.
Lightweight Bodypack TransmitterThe durable BLX1 bodypack transmitter offers a lightweight, ergonomic design that is comfortable for the instructor to wear. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off switch, adjustable gain control, and a TA4M 4-pin input jack.
Easy-to-Use Tabletop Receiver for Quality AudioThe BLX4 receiver employs microprocessor-controlled internal antenna diversity to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.
A Versatile System to Meet Your NeedsShure offers a variety of lavalier, instrument, headset, and handheld microphone options to adapt your BLX system as your needs evolve.
- The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
- The PGA31 is a comfortable headset microphone for lectures and presentations.
- The CVL lavalier mic offers low visibility and clear vocal reproduction for discreet applications.
- Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
- The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
- The BLX2 handheld transmitter is available with three different mic capsules for presenters who prefer the flexibility of a handheld microphone.
System | |
Wireless Transmission | Analogue UHF |
Number of RF Channels | 123 |
Included Transmitters | 1 x Bodypack |
Diversity | Antenna Diversity |
RF Frequency Band | J11: 596 to 608 MHz 614 to 616 MHz |
RF Bandwidth | 14 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 300' / 91.4 m (Line of Sight) |
Max Systems per Setup | 12 |
Dynamic Range | 100 dBA |
Receiver | |
Form Factor | Tabletop |
Antenna | 2 x Internal, Fixed |
Number of Audio Channels | 1 |
Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
Audio Output Level | XLR Output: -27 dBV (Mic Level) 1/4" Output: -13 dBV (Instrument Level) |
Frequency Response | 50 Hz to 15 kHz (Dependant on Mic) |
Impedance | XLR Output: 200 Ohms 1/4" Output: 50 Ohms |
Power Requirements | AC/DC Power Adapter |
AC/DC Power Adapter | 12 to 15 VDC at 160 mA, Centre-Positive (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 150 mA |
Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 2 x LED (AF Level, Sync) |
Housing | ABS |
Dimensions | 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm |
Weight | 8.5 oz / 241 g |
Transmitter | |
Form Factor | Bodypack |
RF Output Power | 10 mW |
Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input (Lockable) |
Muting | Off/On Switch |
Auto-Level Control | No |
Gain Range | -16 to +10 dB |
Sync Method | Manual |
Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) |
Approx. Battery Life | 14 Hours (Alkaline) |
Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
Housing | ABS |
Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
Weight | 2.6 oz / 75 g (without Batteries) |
Microphone | |
Form Factor | Headset |
Sound Field | Mono |
Capsule | Electret Condenser |
Polar Pattern | Cardioid |
Frequency Range | 45 Hz to 20 kHz |
SNR | 66 dB |
Maximum SPL | 145 dB SPL |
Dynamic Range | 117 dB |
Output Connectors | 1 x TA4/Mini XLR 4-Pin Female (Lockable) |
Cable Length | 3.61' / 1.1 m |
Operating Voltage | 5 V |
Weight | 2.12 oz / 60 g |
