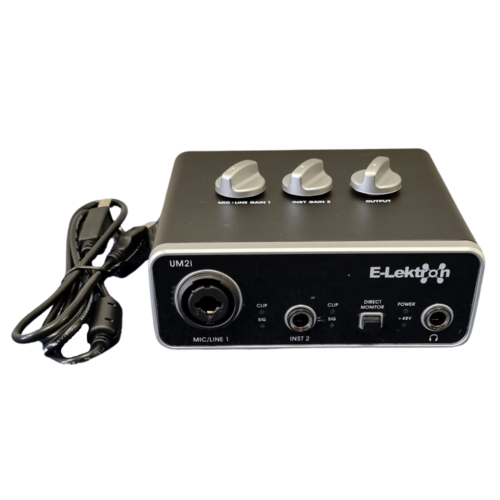

2x2 USB Audio Interface with XENYX Mic Preamplifier

2x2 USB Audio Interface with XENYX Mic Preamplifier

2x2 USB audio interface for recording microphones and instruments

●System requirements: USB2.0 or USB-C,Win7(32 or 64 bit or MAC OS X10.8 ,XP)

●24-bit/48kHz sound quality

●2 Outputs:6.3mm balanced jack-volume control for output 1+2

●1 XLR jack combo input MIC/LINE +48V phantom power

●Instrument input 6.3mm jack

●1/4" instrument input with gain control

●1/4" stereo headphone output

●USB bus-powered

●State-of-the-art,+48V powered Mic Preamp comparable to stand-alone boutique preamps

●Powerful phones output with Level control and Direct Monitor select

Status, Signal and Clip indications for perfect overview

●USB connector (bus-powered from computer)

"Built-like-a-tank”,impact-resistant metal chassis

Specfications

Input

Preamp: 1 x XENYX

Type: 1 x XLR/TRS combo connector (Mic/Line), 1 x ¼" TRS (Instrument)

Frequency response: 10 Hz – 30 kHz (0 / - 0.5 dB)

Impedance: Mic in: 3 kΩ / Instrument in: 1 MΩ

Max. input level: Mic: +2 dBu / Line: +22 dBu / Instrument: +2 dBu

Phantom power: +48 V, switchable

Output

Type : 1 x ¼" stereo (Phones), 2 x RCA (Line Out)

Frequency response:10 Hz – 30 kHz (0 / -0.5 dB)

Max. output level: 10 Hz – 30 kHz (0 / -0.5 dB)

Dimensions (H x W x D) : 46.45 x 128 x 118 mm

(1.8 x 5.1 x 4.7")

Weight 0.3 kg (0.6 lbs)
