Stage Mixer 8-Channel DSP/MP3

Product Code: 172.662

$469.00

Pay it in 4 payments of $117.25 with Afterpay

Store Stock:
Henderson In Stock
Albany In Stock

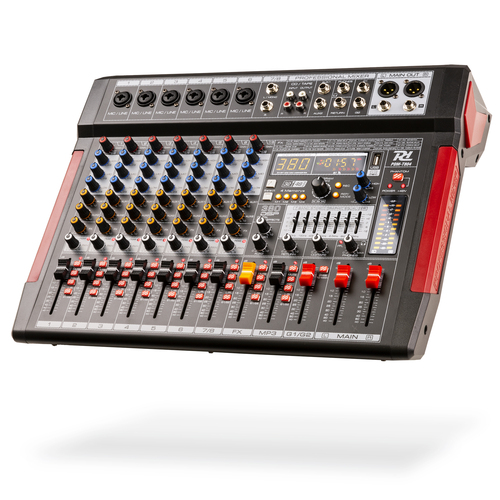

PDM-T804 Stage Mixer 8-Channel DSP/MP3

The PDM-T series is a series of stage mixers equipped with a 32-bit DSP effect processor, stereo 7-band graphic equalizer, BT streaming capability and USB input/output for easy connection to the computer for music recording, etc. It’s also possible to use the one click recording function for easy MP3 recordings on a USB stick. Each channel has its own gain control with treble, mid and bass controls. The microphone preamps offer selectable 48V phantom power on all microphone channels. The PDM-T mixers are designed to provide multi-channel mixing capabilities for bands, musicians, sound engineers, conferences, studio recording and a variety of other live stage application

  • 8-Channel multipurpose audio mixer
  • MP3 recording/playing via full-duplex USB port (one click recording)
  • BT receiver for audio streaming
  • +48V phantom power
  • Stereo 7-band graphic equalizer
  • 380 DSP multi effects with 4 memories
  • USB to PC for record and play music (USB interface)
  • 8x Microphone-/line input (Combi XLR/Jack)
  • High, Mid and Low control for each channel
  • Adjustable Pan, aux return input and FX send output
  • Adjustable headphone output
  • Stereo balanced main outputs (XLR/6.3mm Jack)
  • MUTE, PFL (Pre-fader listening), L/R, G1/G2 control on each channel
  • LED VU meter and Peak LEDs
Specifications
Playback options BT streaming, USB
Input connections 6.3mm Jack, RCA, USB, XLR (3-pin)
Output connections 6.3mm Jack, RCA, USB, XLR (3-pin)
Presets 380
DSP Resolution 32-bit
Frequency response 20Hz - 20.000Hz
THD <0,5%
Equalizer 7-Bands
Equalizer: Low 80Hz +15dB
Equalizer: High 12KHz +15dB
Power supply 240VAC 50Hz

Dimensions (L x W x H) 377 x 455 x 120mm
Weight 4,85
