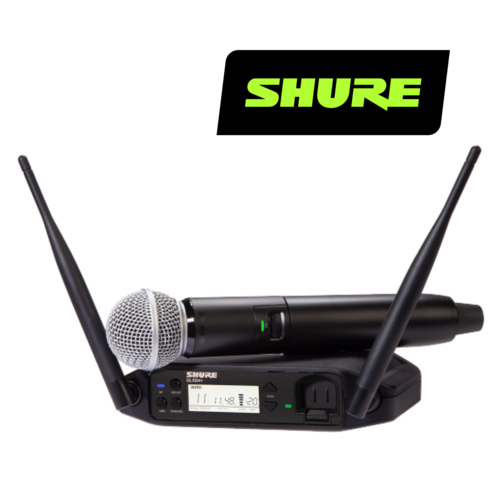

Shure GLXD24+ Digital Wireless Handheld System

Ready-To-Go. Every time. Automatically.

Featuring the industry standard SM58® vocal microphone, the new GLXD24+/SM58 Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

In the box:

• GLXD4+ Receiver
• SM58 Wireless Microphone GLXD2+
• SB904 Lithium-Ion Rechargeable Battery
• Swivel Adapter
• Black Carrying Case
• PS43 Power Supply

GLXD4+ DUAL BAND WIRELESS RECEIVER

GLXD4+ DUAL BAND WIRELESS RECEIVER

Dimensions 7.2 x 4.8 x 1.6 in. (182.8 x 121.97 x 40.3 mm), H x W xD, antennas folded

Weight 10.9 oz (310 g)

Housing Molded Plastic

Power Requirements 14.5 V - 17 V, 600mA

Spurious Rejection >35 dB, typical

Gain Adjustment Range -20 to 40 dB in 1 dB steps

Phantom Power Protection Yes

Configuration XLR Output Impedance balanced

6.35 mm (1/4“) output Impedance balanced

Impedance XLR Output 100 Ω

6.35 mm (1/4“) output 100 Ω (50 Ω, Unbalanced)

Maximum Audio Output Level XLR connector (into 600 Ω load) 1 dBV

6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV

Pin Assignments XLR Output 1=ground, 2=hot, 3=cold

6.35 mm (1/4“) connector Tip=audio, Ring/Sleeve=ground

RECEIVER ANTENNA INPUT

Impedance 50 Ω

Antenna Type Dual Band 1/2 Wave Sleeve Dipole, non-removable

Maximum Input Level −20 dBm

GLXD2+ DUAL BAND HANDHELD TRANSMITTER

DIMENSIONS

SM58 51 mm x 246mm x 37 mm

WEIGHT

SM58 275 g (9.7 oz), without battery

Housing Aluminum alloy, ABS plastic

Power Requirements 3.6 V Rechargeable Li-Ion

RF Output Power 10 mW E.I.R.P. max

Maximum Input Level 146 dB SPL
