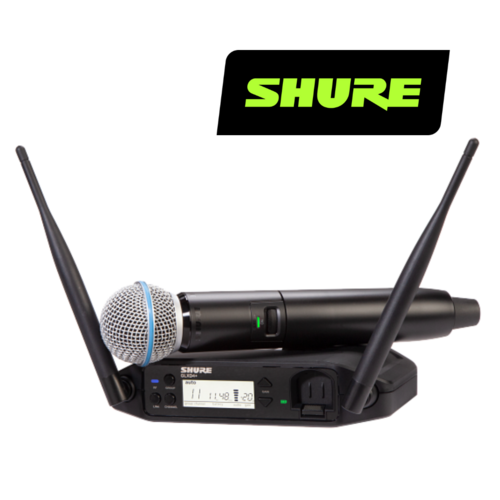

Shure GLXD24+ Digital Wireless Handheld System
with BETA58A Vocal Microphone
Product Code: GLXD24+-BETA58
Ready-To-Go. Every time. Automatically.
Featuring the industry standard BETA®58A vocal microphone, the new GLXD24+/B58 Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
In the box:
- GLXD4+ Receiver
- BETA58A Wireless Microphone GLXD2+
- SB904 Lithium-Ion Rechargeable Battery
- Swivel Adapter
- Black Carrying Case
- PS43 Power Supply
GLXD4+ DUAL BAND WIRELESS RECEIVER
Dimensions 7.2 x 4.8 x 1.6 in. (182.8 x 121.97 x 40.3 mm), H x W xD, antennas folded
Weight 10.9 oz (310 g)
Housing Molded Plastic
Power Requirements 14.5 V - 17 V, 600mA
Spurious Rejection >35 dB, typical
Gain Adjustment Range -20 to 40 dB in 1 dB steps
Phantom Power Protection Yes
Configuration XLR Output Impedance balanced
6.35 mm (1/4“) output Impedance balanced
Impedance XLR Output 100 Ω
6.35 mm (1/4“) output 100 Ω (50 Ω, Unbalanced)
Maximum Audio Output Level XLR connector (into 600 Ω load) 1 dBV
6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
Pin Assignments XLR Output 1=ground, 2=hot, 3=cold
6.35 mm (1/4“) connector Tip=audio, Ring/Sleeve=ground
RECEIVER ANTENNA INPUT
Impedance 50 Ω
Antenna Type Dual Band 1/2 Wave Sleeve Dipole, non-removable
Maximum Input Level −20 dBm
GLXD2+ DUAL BAND HANDHELD TRANSMITTER
DIMENSIONS
BETA 58 51 mm x 246mm x 37 mm
WEIGHT
BETA 58 BETA 58 - 225 g (7.9 oz), without battery
Housing Aluminum alloy, ABS plastic
Power Requirements 3.6 V Rechargeable Li-Ion
RF Output Power 10 mW E.I.R.P. max
Maximum Input Level 146 dB SPL
