GLXD16+ Digital Wireless Guitar Pedal System
Product Code: GLXD16+
Ready-To-Go. Every time. Automatically.

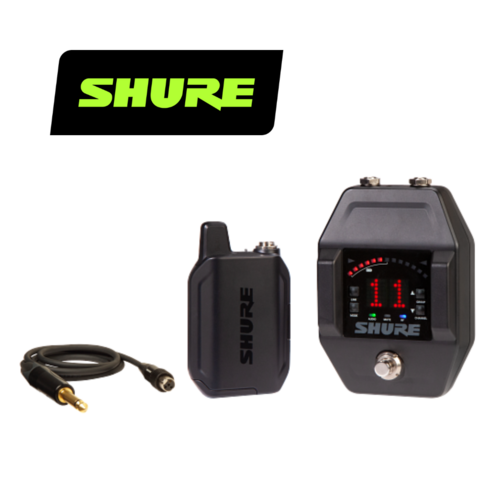

The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver.
In the box:
- GLXD1+ DUAL BAND BODYPACK TRANSMITTER
- GLXD6 DUAL BAND GUITAR PEDAL RECEIVER
- SB904 Lithium-Ion Rechargeable Battery
- WA305 Premium Instrument Cable
- PS43 Power Supply
GLXD6 DUAL BAND GUITAR PEDAL RECEIVER
Dimensions 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm, H x W x D
Weight 19.75 oz (560 g)
Housing Aluminum alloy
Power Requirements 9 V - 15 V, 400mA (efficiency level VI power supply)
Spurious Rejection >35 dB, typical
Gain Adjustment Range -20 to 40 dB in 1 dB steps
Configuration 6.35 mm (1/4“) output Impedance balanced
Impedance 6.35 mm (1/4“) output 100 Ω (50 Ω, Unbalanced)
Maximum Audio Output Level 6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
Pin Assignments 6.35 mm (1/4“) connector Tip=audio, Ring/Sleeve=ground
Audio Input Modes Tuner or True Bypass
RECEIVER ANTENNA INPUT
Impedance 50 Ω
Antenna Type Dual Band Internal Monopole
Maximum Input Level −20 dBm
GLXD1+ DUAL BAND BODYPACK TRANSMITTER
Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), H x W x D, without antenna
Weight 5.4 oz (153.1 g), without battery
Power Requirements 3.7 V Rechargeable Li-Ion
Housing Cast Metal, Black Powdercoat
Input Impedance 900 kΩ
RF Output Power 10 mW E.I.R.P. max
TRANSMITTER INPUT
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Maximum Input Level
(1 kHz at 1% THD)
+8.4 dBV (7.5 Vp-p)
Antenna Type Dual Band Internal Monopole
Pin Assignments
TA4M
1: Ground (cable shield)
2: + 5 V Bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
