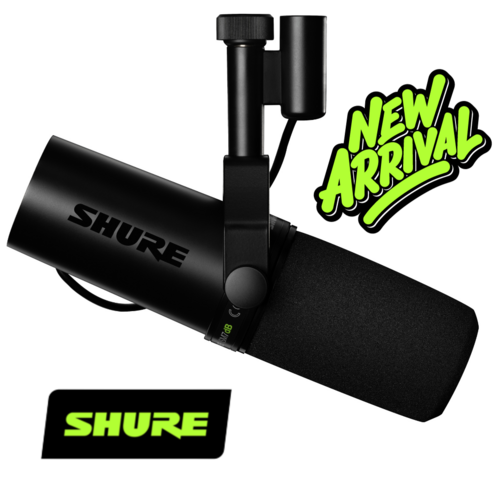

SM7dB Dynamic Vocal Microphone with Built-In Preamp
Product Code: SHSM7dB
The SM7dB is a cardioid dynamic microphone with a Shure-designed built-in preamp providing up to +28 dB of low-noise,
flat, transparent gain ideal for lower-output interfaces and simplified audio chains. Delivers warm and smooth audio for vocal
and studio applications. Preamp bypass switch, adjustable bass roll-off and presence boost, electromagnetic hum shielding,
internal shock mounting, and external windscreen ensure clear and consistent audio reproduction.
• Built-in active preamp providing either +18dB or +28dB of extra gain delivers levels suitable for any interface.
• Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech.
• Preamp bypass switch to revert to original SM7B performance.
• Bass roll-off and mid-range emphasis (presence boost) EQ switch controls.
• Superior rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by
• Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission.
• Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close- up
vocals or narration.
• Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position.
• Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and
minimum coloration of off-axis sound.
• Rugged construction and excellent cartridge protection for outstanding reliability.
Type Dynamic (moving coil)
Polar Pattern Cardioid
Frequency Response 50 Hz to 20 kHz
Output Impendance 150 Ω in Bypass Mode
27 Ω in Preamp Mode
(at 1 kHz, open circuit voltage)
 1 Pa=94 dB SPL
-59 dBV/Pa (1.12 mV) Flat Response Bypass Mode
-41 dBV/Pa (1.12 mV) Flat Response +18 Preamp Mode
-31 dBV/Pa (1.12 mV) Flat Response +28 Preamp Mode
Polarity relative to Pin 3 Positive pressure on diaphragm produces positive voltage on Pin 2
Net Weight 837 g (1.875 lbs)
Housing Black enamel aluminum and steel case with black foam windscreen
