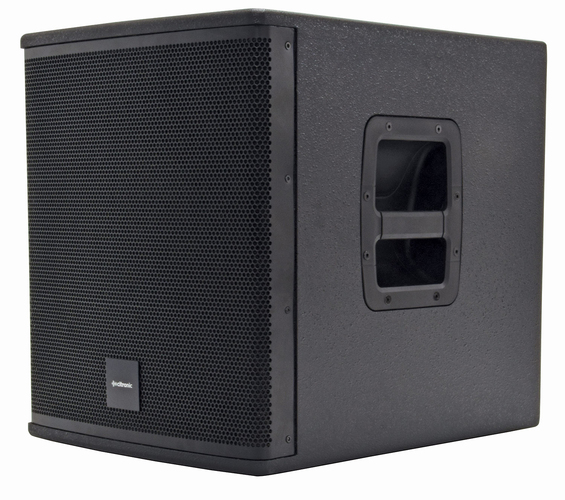

CASA-12BA Active Subwoofer 12"

400Wrms

Product Code: 178.122

This product is coming soon, and is due to arrive on or near February 07, 2025
Jump to:
Manuals and Downloads
CASA Active Subwoofer - 12"   Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.
  • Compact and lightweight design
  • 15mm MDF cabinet with polyurea finish
  • 2 x side carry handles
  • 35mm pole mount socket
  • Weight18.86kg
  • Dimensions480 x 450 x 380mm
  • Frequency response55 - 150Hz
  • SPL max.122.0dB
  • Peak output1400W
  • Output power : max.700W
  • Output power : rms400W
  • Voice coil62mmØ (2.5")
  • Sub driver300mmØ (12")
  • Power supply230Vac, 50Hz (IEC)
  • Construction15mm MDF with durable texture paint finish
  • Hardware2 x side carry handles + 35mm pole mount socket
  • Amplifier : constructionClass D
  • Line inputsL+R balanced XLR
  • Line outputsL+R balanced XLR & L+R link XLR
  • ControlsOutput level, phase switch, high pass x-over (output)
