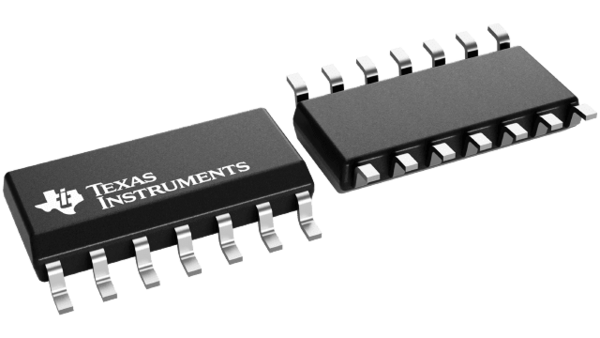

Quad, 16-V, 3-MHz operational amplifier - TLV274C

SOIC (14)

Product Code: CT1200

$3.50

Pay it in 4 payments of $0.88 with Afterpay

Buy 1+ $3.50 (incl. GST)
Buy 50+ $2.00 (incl. GST)
Store Stock:
Henderson In Stock
Albany Out of Stock
Jump to:
Manuals and Downloads

TLV274

TLV27x Family of 550-μA/Ch, 3-MHz, Rail-to-Rail Output
Operational Amplifiers

Features
1• Rail-to-Rail Output
• Wide Bandwidth: 3 MHz
• High Slew Rate: 2.4 V/μs
• Supply Voltage Range: 2.7 V to 16 V
• Supply Current: 550 μA/Channel
• Input Noise Voltage: 39 nV/√Hz
• Input Bias Current: 1 pA
• Specified Temperature Range:
– Commercial Grade: 0°C to 70°C
– Industrial Grade: −40°C to 125°C
• Ultrasmall Packaging:
– 5-Pin SOT-23 (TLV271)
– 8-Pin MSOP (TLV272)
• Ideal Upgrade for TLC72x Family
2 Applications
• E-Bike
• Power Banks
• Smoke detectors
• Solar Inverters
• Low-Power Motor Controls
• Battery-Powered Instruments
• Building Automation
