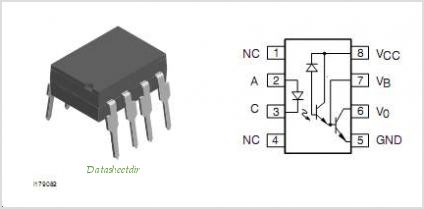

Darlington Optocoupler 6N139

Product Code: LA0238

$1.00

Pay it in 4 payments of $0.25 with Afterpay

Jump to:
Manuals and Downloads

Single-Channel: 6N139

Features
???Low current – 0.5mA
???Superior CTR-2000%
???Superior CMR-10kV/μs
???CTR guaranteed 0–70°C
???U.L. recognized (File # E90700)
???VDE recognized (File # 120915) Ordering option V,e.g., 6N138V
???Dual Channel – HCPL2730, HCPL2731
Applications
???Digital logic ground isolation
???Telephone ring detector
???EIA-RS-232C line receiver
???High common mode noise line receiver
???μP bus isolation
???Current loop receiver
