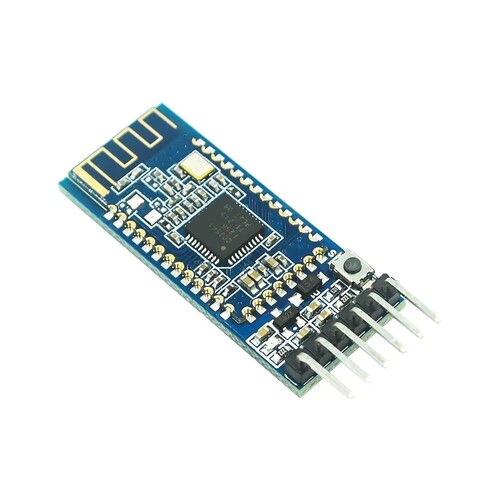

AT-09 HM-10 Android IOS BLE 4.0 Bluetooth module
Product Code: MOD0762
This small size Bluetooth 4.0 TTL transceiver module allows your target device communicate with. your iPhone/iPAD, IOS 6 or Android 4.3 above devices.
It's easy to use and completely encapsulated. You can set it as slave or master. You can use AT command set the baudrate.
Specifications: Ultra-low standby power consumption 90uA~400uA
Coverage up to 60 meters
Built in PCB antenna
Power input: 3.6V-6V DC(Can not higher than 6V)
Size: 43mm x 15mm Color: Blue Net Weight: 4g
Description
HM-10 Transparent Serial Port Bluetooth 4.0 Module With Logic Level Conversion/Anti
Description:
1.The internal logic level conversion circuit. No external 5V level to 3.3V level
2.The power input port with anti reverse circuit. To avoid accidental power plug in module, the burning issue.
Ultra Low Standby Power 90ua~400ua
