Mini Fresnel Zoom 2x 50W LED WW/CW
Product Code: 155.095
The beamZ BTK050Z is a compact yet powerful fixture features dual 50W warm white and cool white LEDs, delivering a seamless blend of white tones (2700K – 6500K) for natural lighting effects. With an adjustable zoom range from 10° to 60°, the BTK050Z is perfect for highlighting key areas or washing large spaces with ease. Its robust design ensures durability, while the silent operation makes this fresnel ideal for theatres, studios, and live performances.

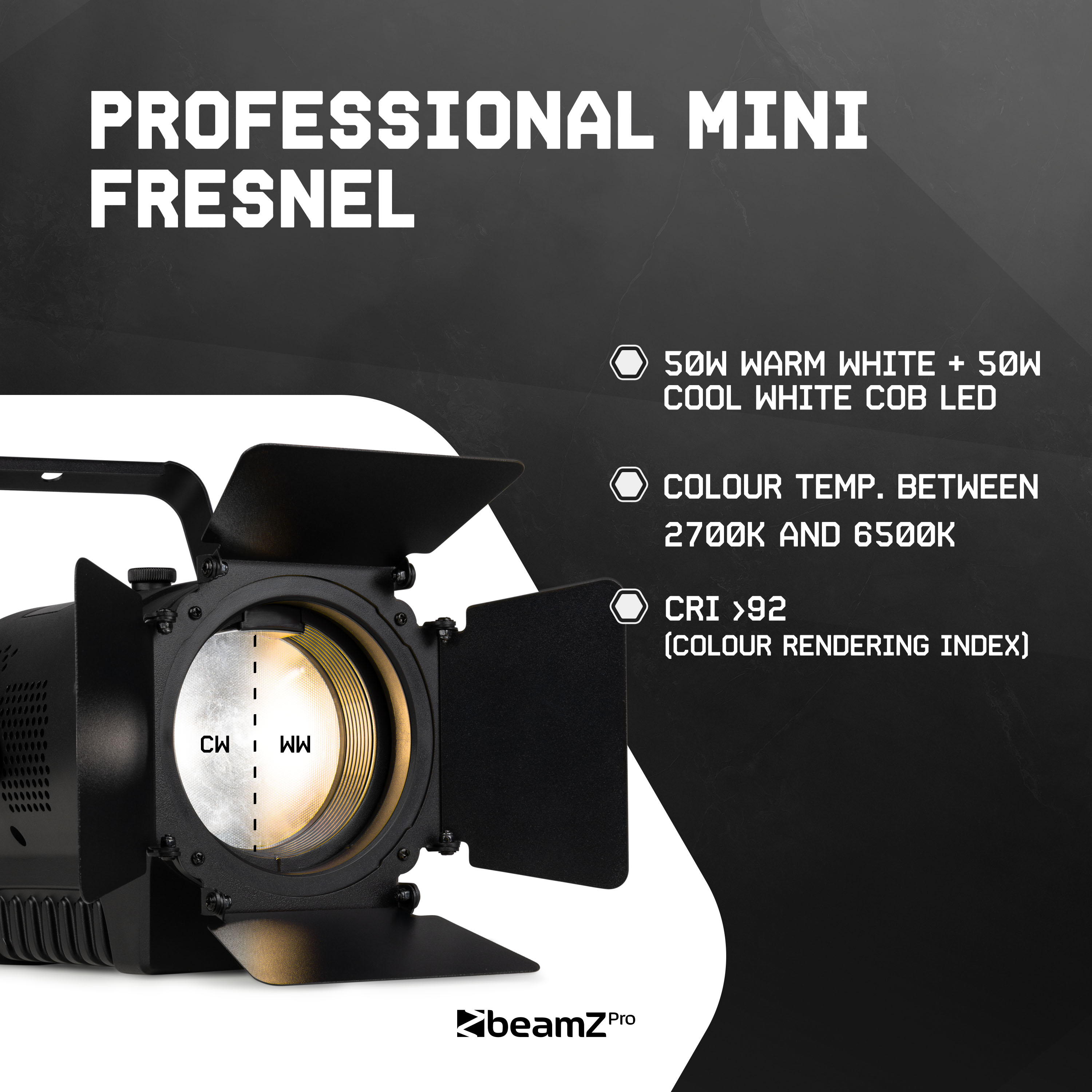

- 50W Cool White + 50W Warm White COB LED
- Colour Temperature: 2700K - 6500K
- Replaces 300-500W Halogen Lamps
- 10° to 60° Manual zoom
- Compact and lightweight body
- HQ optical system
- CRI 92 (Colour Rendering Index) TLCI 98(3200K), TLCI 96(5600k)
- 16 bit dimming via DMX
- Flicker free

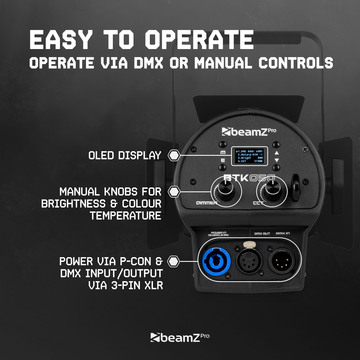

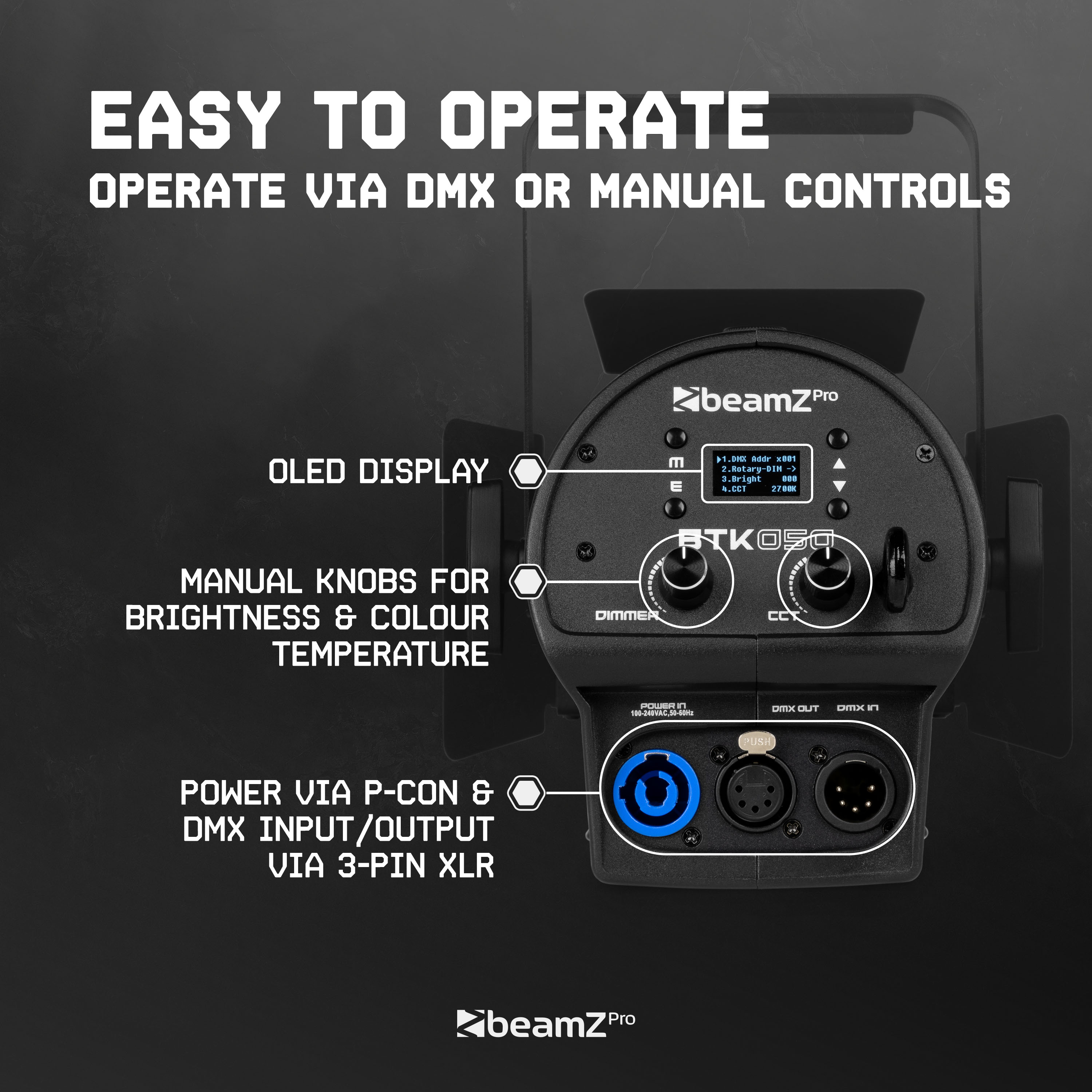

- Control Panel: OLED Display
- DMX (5-pin) and manual control options
- Intelligent temperature control for silent operation
- P-Con Powerconnector input
- Including barndoor
| Product colour | Black |
|---|---|
| Light source | Single colour LED |
| Colour temperature | 2700K - 6500K |
| Colours | Cool White, Warm White |
| LED power (single LED) | 50W |
| Quantity of LEDs | 1 |
| Beam angle: Min | 10° |
| Beam angle: Max | 60° |
| Illuminance | 18.668 lx @ 1m |
| Flash rate per second | 1 - 13Hz |
| DMX channels | 2, 3 |
| DMX connection | 5-pin XLR |
| Modes | DMX, Manual |
| IP rating | IP20 |
| Cooling | Convection |
| Display | oLed |
| Power plug | P-Con |
| Power consumption | 0.722 - 0.359A |
| Power supply | 240VAC 50Hz |

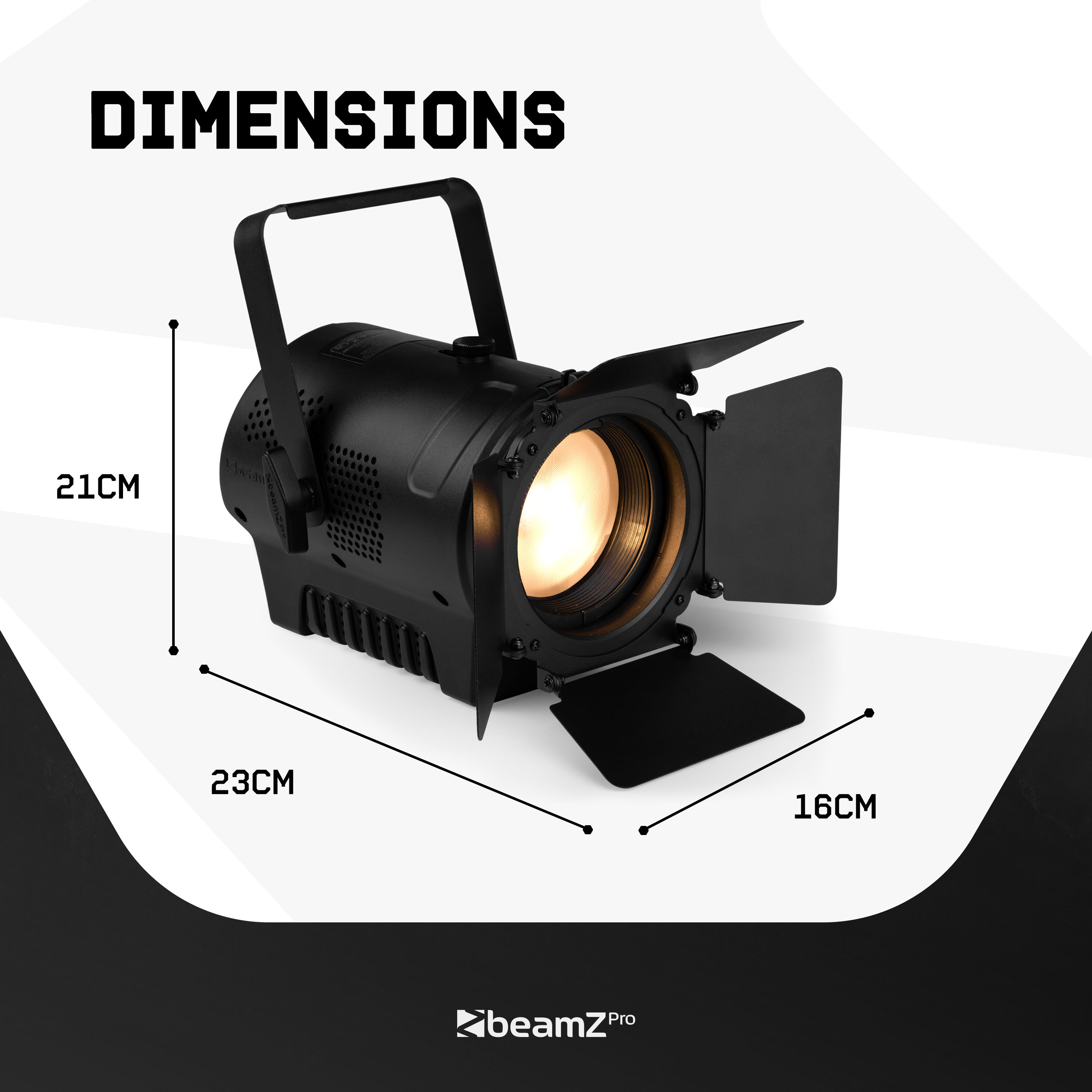

| Dimensions (L x W x H) | 230 x 160 x 210mm |
| Weight (kg) | 1,55 |
| Included accessories | Barndoor, Mounting bracket, Power cable |
