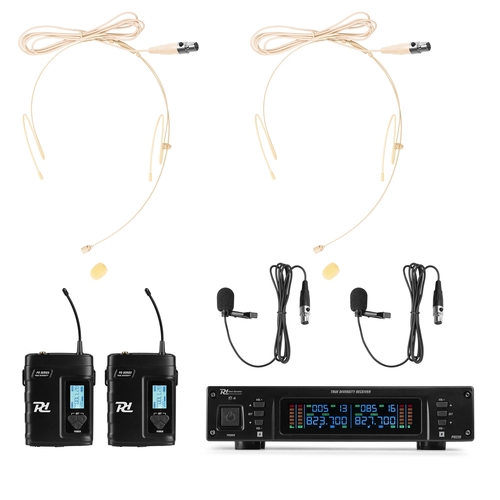

2x 80-Channel UHF Wireless Microphone True Diversity System BP
Product Code: 179.037
The PD220 is a professional, reliable UHF wireless microphone system with true diversity reception. True diversity design means interference free reception in high radio frequency environments and a built in noise reduction system compensates for high levels of background noise. The receiver can be placed on a surface or built into a rack case in combination with the mounting brackets. Further features include different UHF selectable frequencies, automatic channel detection, IR frequency matching, an intuitive control panel and a large LCD display. The microphone system operates in the MHz band and is suitable for stage, presentation, voice and other applications.
- 2x 80-channel UHF system
- 2x Bodypacks with display
- True diversity reception
- Compact half-rack size
- LCD display on bodypacks
- Two detachable antennas
- Auto Scan function
- Balanced XLR output pro channel
- 6.35 mm Jack for mixed output
- Including case
- Incl. Skin colour headset and tie-clip microphone
- 19" Mounting brackets
| Product colour | Black |
|---|---|
| Output connections | 6.3mm Jack, XLR (3-pin) |
| Microphone channels | 2 x 80 channels |
| Dynamic range | >85dB |
| Frequency | MHz |
| Frequency headset (bodypack) | MHz |
| Frequency response | 40Hz - 17.000Hz |
| Frequency stability | 0.002% |
| RF output | <10mW |
| Sensitivity | -90dB |
| Signal-to-noise ratio | >90dB |
| THD | <1% |
| Batteries | 3V (2x AA) |
| Power supply | 240VAC 50Hz (12V Adapter) |
| Power consumption | 0.055 - 0.028A |
| Dimensions: Receiver | 320 x 380 x 95mm |
| Dimensions: Body pack | 30 x 68 x 100mm |
| Weight (kg) | 2,15 |
| Weight: Receiver | 0.8 |
| Weight: Bodypack | 0.2 |
