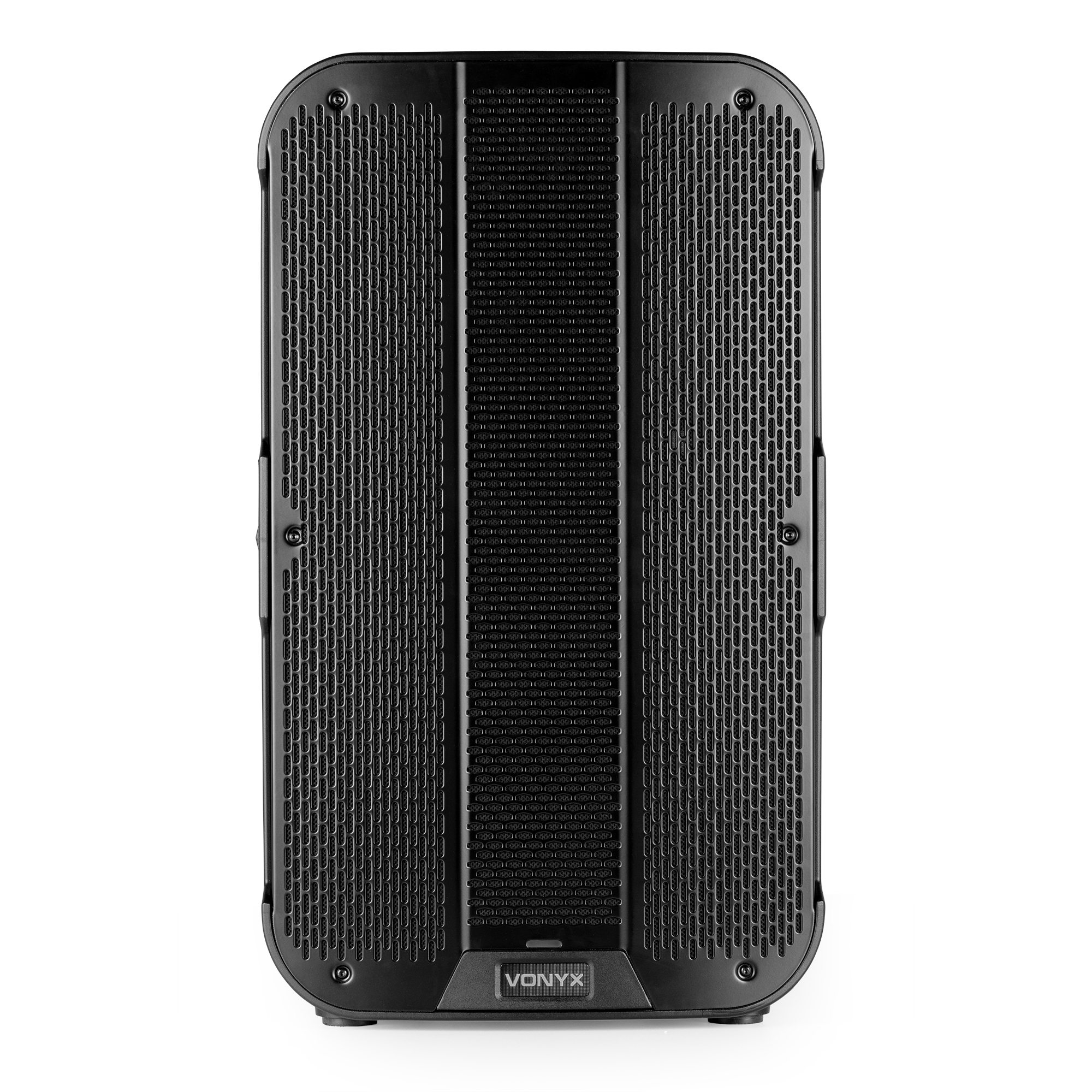

Bi-Amplified Active Speaker 12" DSP
Class D 800W amplifier
Product Code: 178.280
The VDA series consists of a range of high-power speakers equipped with two built-in amplifiers - a dedicated LF amplifier and an HF amplifier - that ensure optimal sound reproduction across all frequencies. The built-in amplifier unit is also equipped with a digital sound processor with DSP mode selector. Crafted from durable ABS material, these speakers are built to withstand the rigours of the road while offering good handling for easy transportation and installation. From live shows to club installations, the VDA series is the ultimate choice for those who demand quality and reliability for their audio equipment.
- Professional Bi-amplified 12" speaker

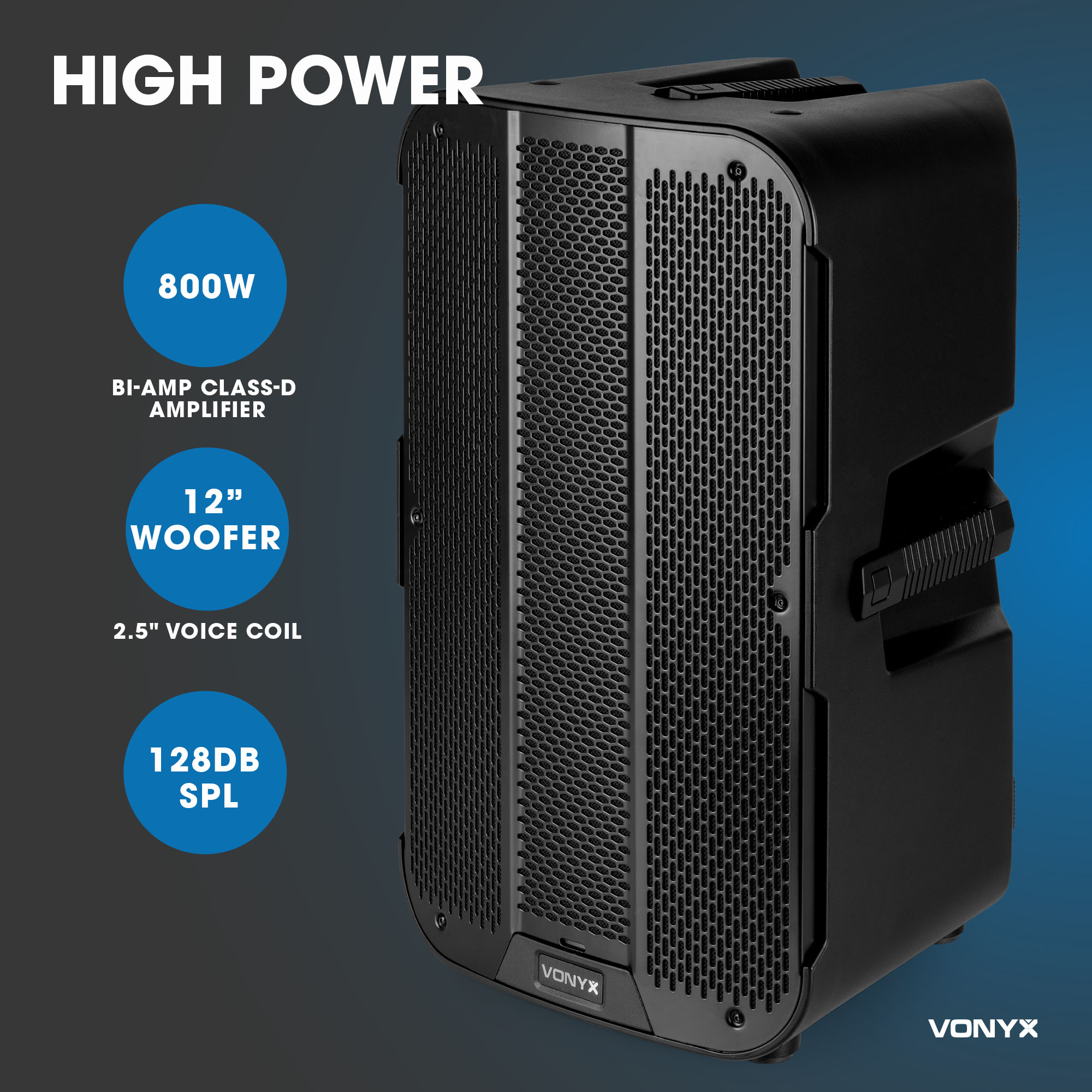

- High power class D 800W amplifier
- 1.75" Compression driver

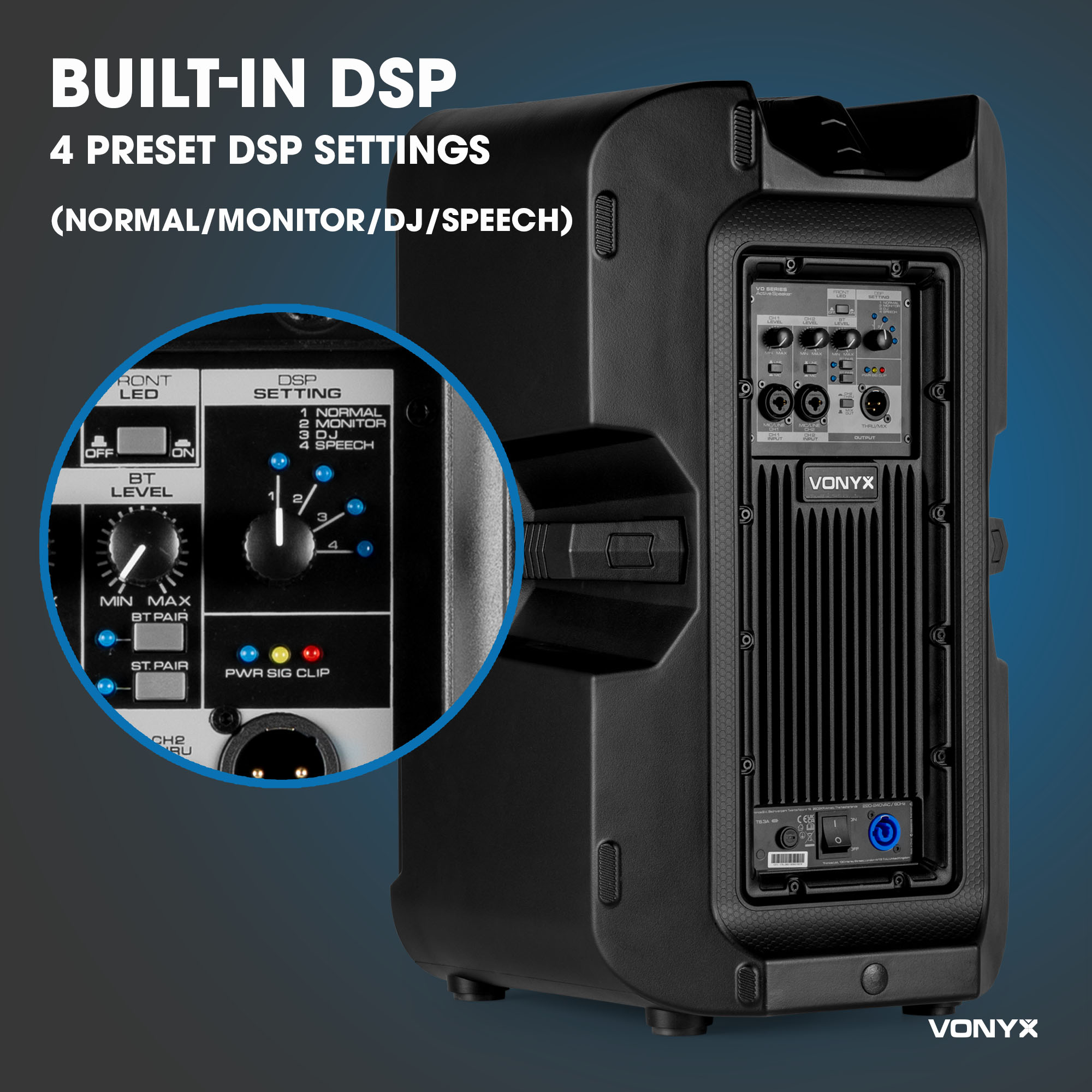

- 4 Preset DSP settings (normal/monitor/DJ/speech)

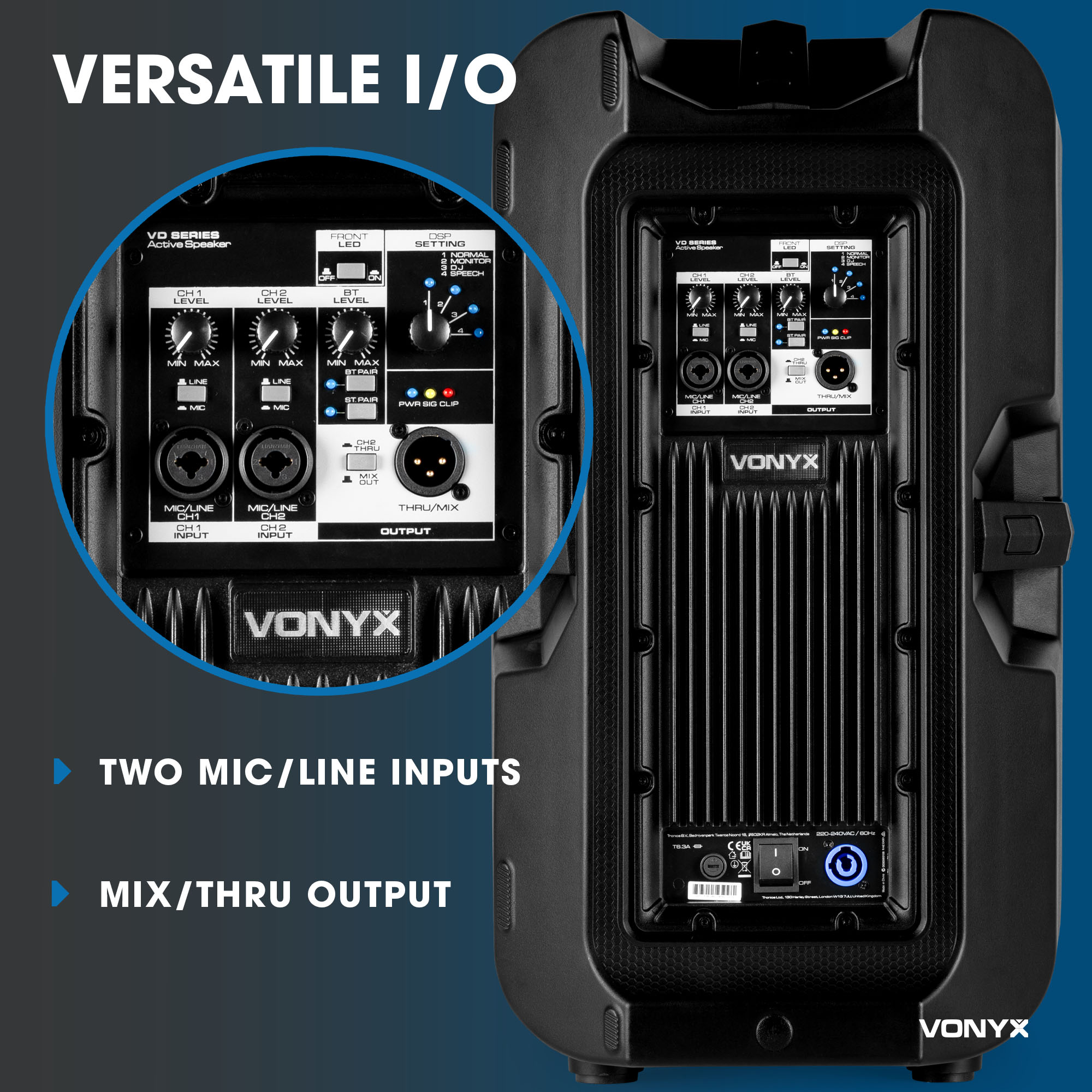

- Two combi Jack/XLR connectors for microphone/line input
- Mix/Thru output (XLR)
- Built-in 2-way active crossover

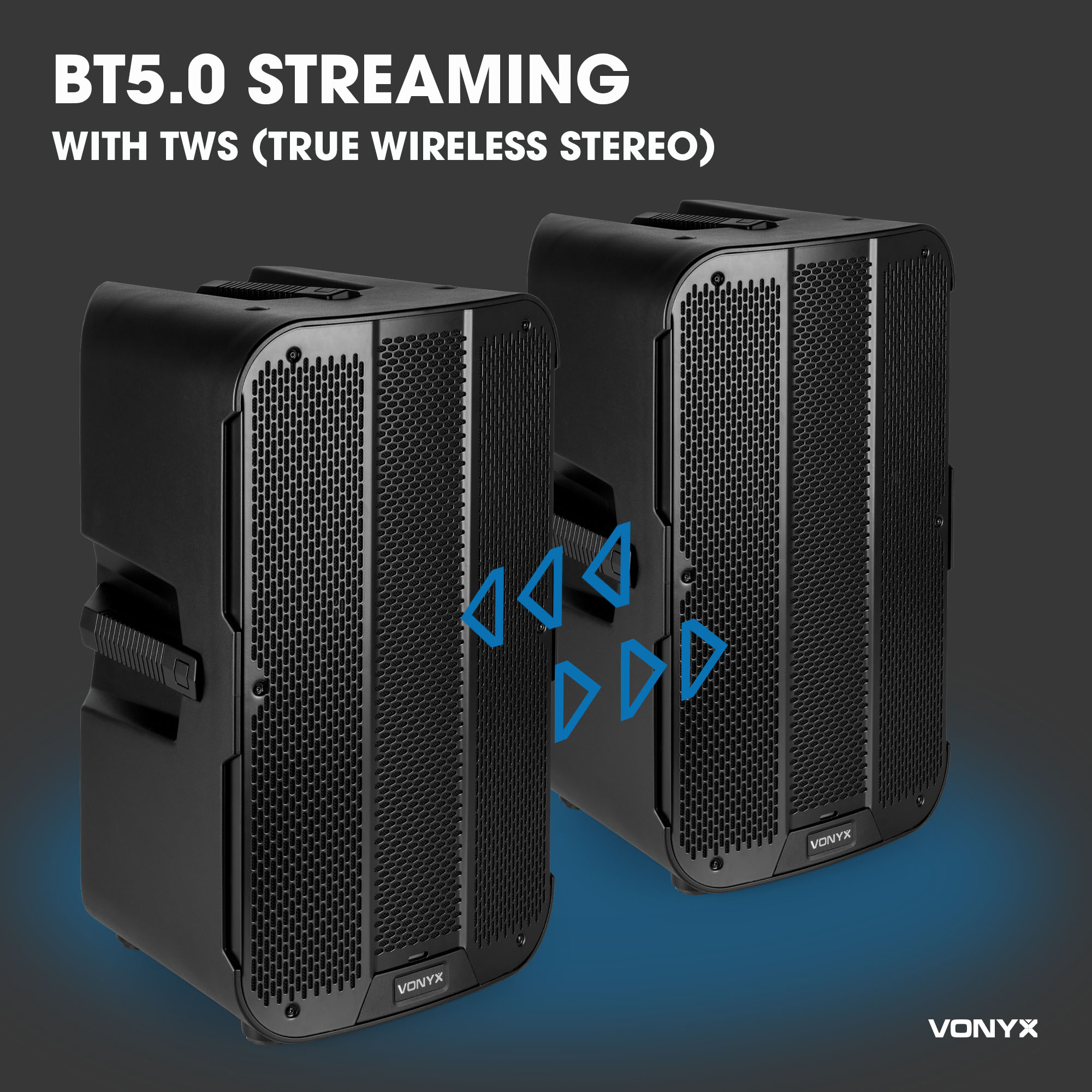

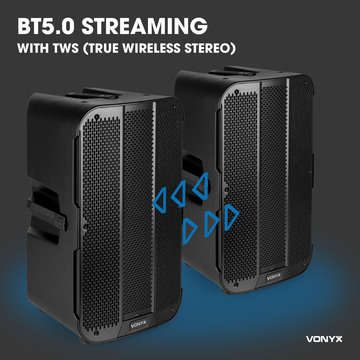

- BT 5.0 with TWS (True Wireless Stereo)

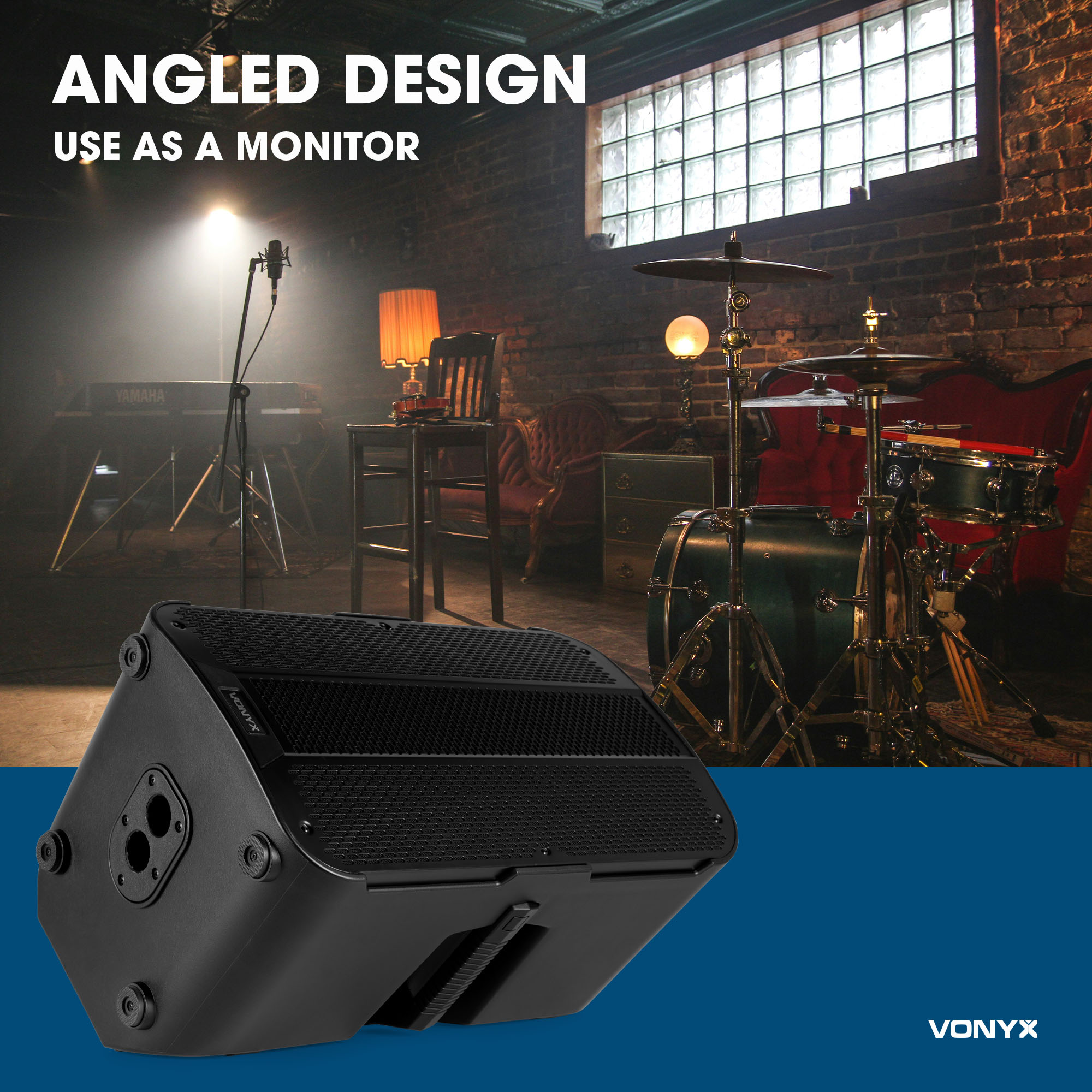

- Angled design, also for use as stage monitor
- 35mm socket for tripod or pole-mounting

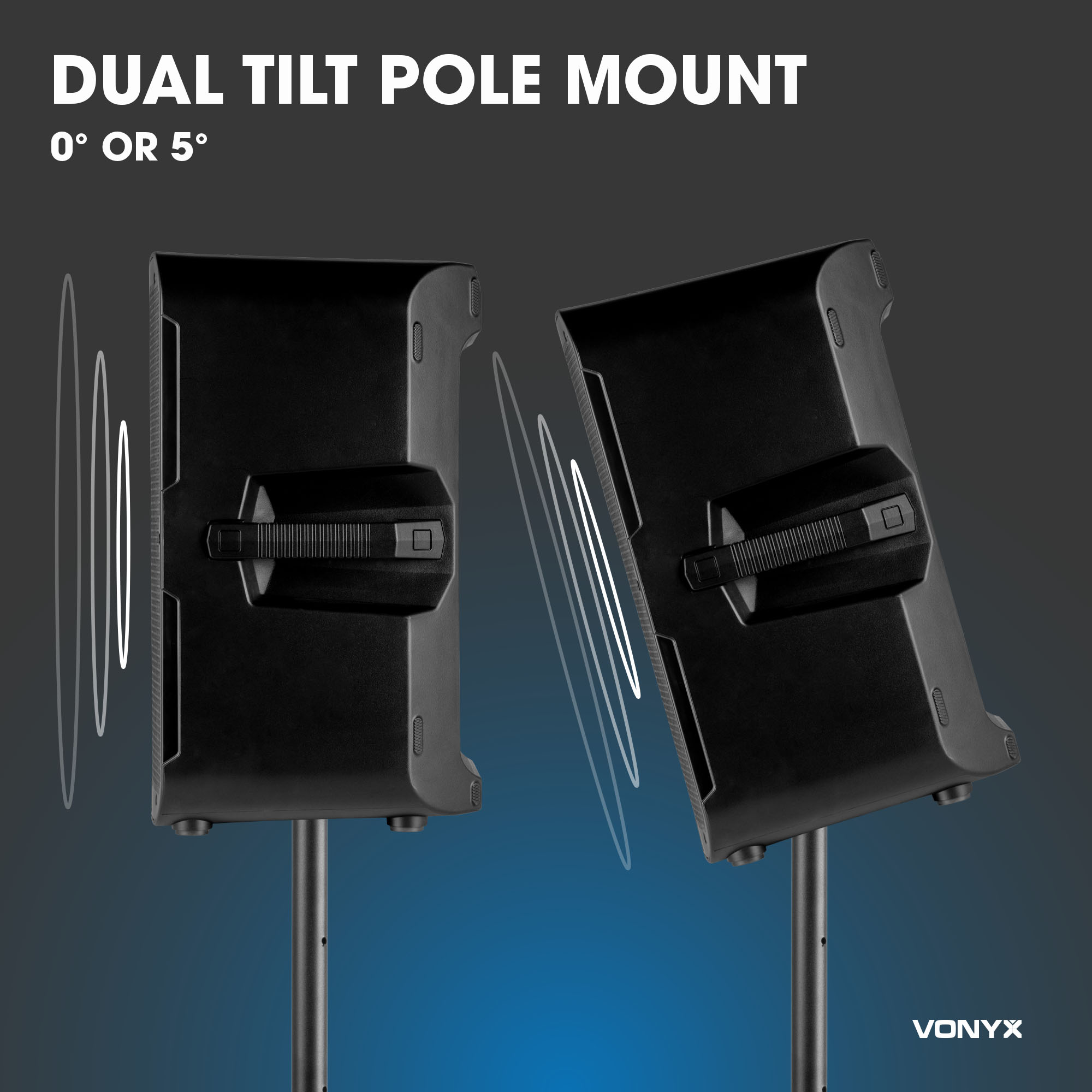

- Dual tilt pole mount; 0° or 5°
| Product colour | Black |
|---|---|
| Speaker type | Active (amplified) |
| Amplifier type | Bi-amp Class D |
| Playback options | BT 5.0 streaming, Line input, Microphone (input) |
| Output power: Max | 800W |
| Output power: RMS | 400W |
| Tweeter type | Titanium Compression Driver |
| Diameter tweeter | 1" |
| Voice coil HF | 1.75" |
| Diameter woofer | 12" |
| Voice coil | 2.5" |
| Magnet type | Ferrite |
| Magnet weight | 60 oz |
| Frequency response (± 3dB) | 50 - 20kHz |
| Frequency response (-10dB) | 40 - 20kHz |
| SPL @ 1W/1m | 95dB |
| SPL max | 128dB |
| Dispersion | 90° x 60° |
| DSP Resolution | 24-bit |
| Input connections | 6.3mm Jack, XLR (3-pin) |
| Output connections | XLR (3-pin) |
| Power supply | 240VAC 50Hz |
| Supplied features | Dual tilt speaker pole mount |

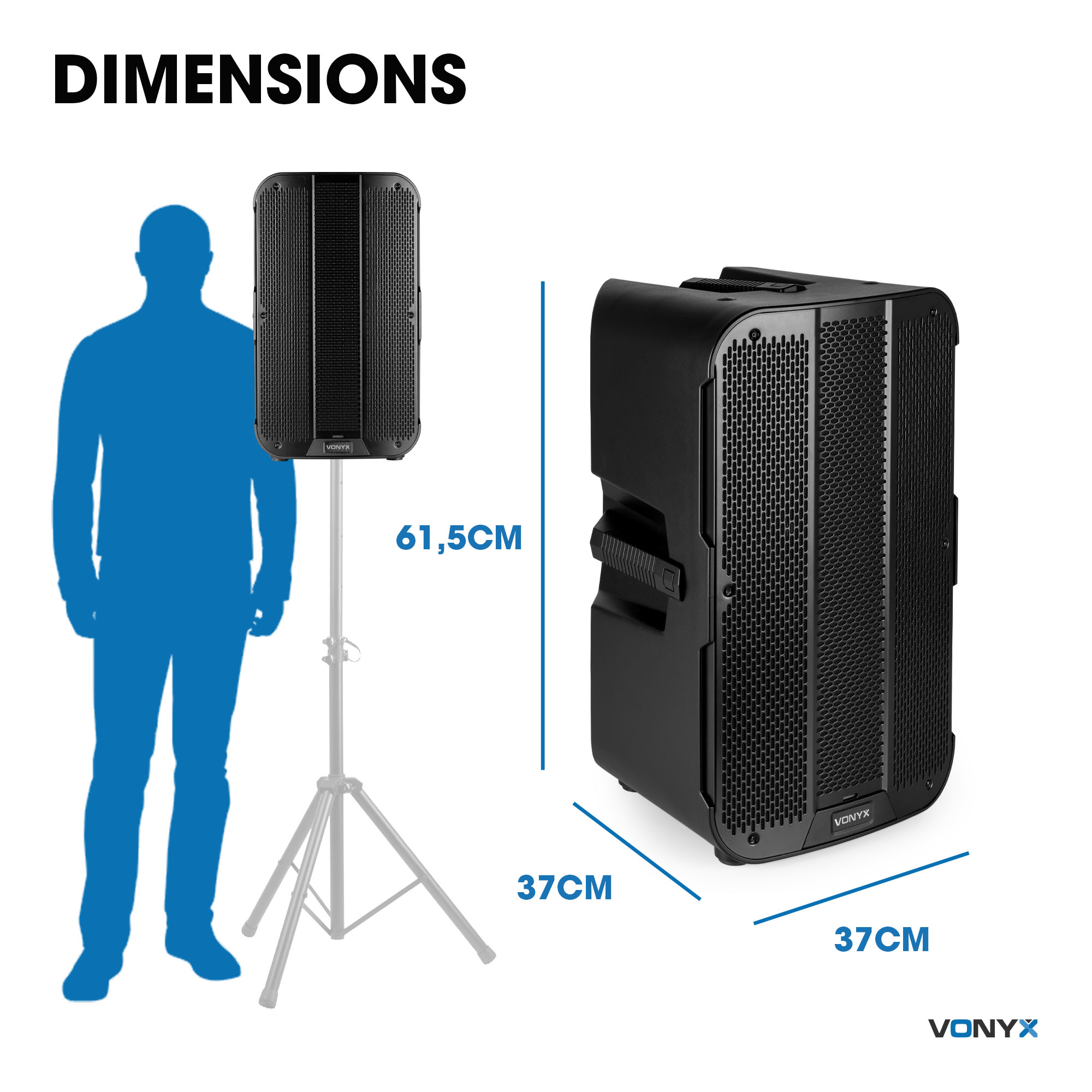

| Dimensions (L x W x H) | 370 x 370 x 615mm |
| Weight (kg) | 19,70 |
| Included accessories | Power cable |
