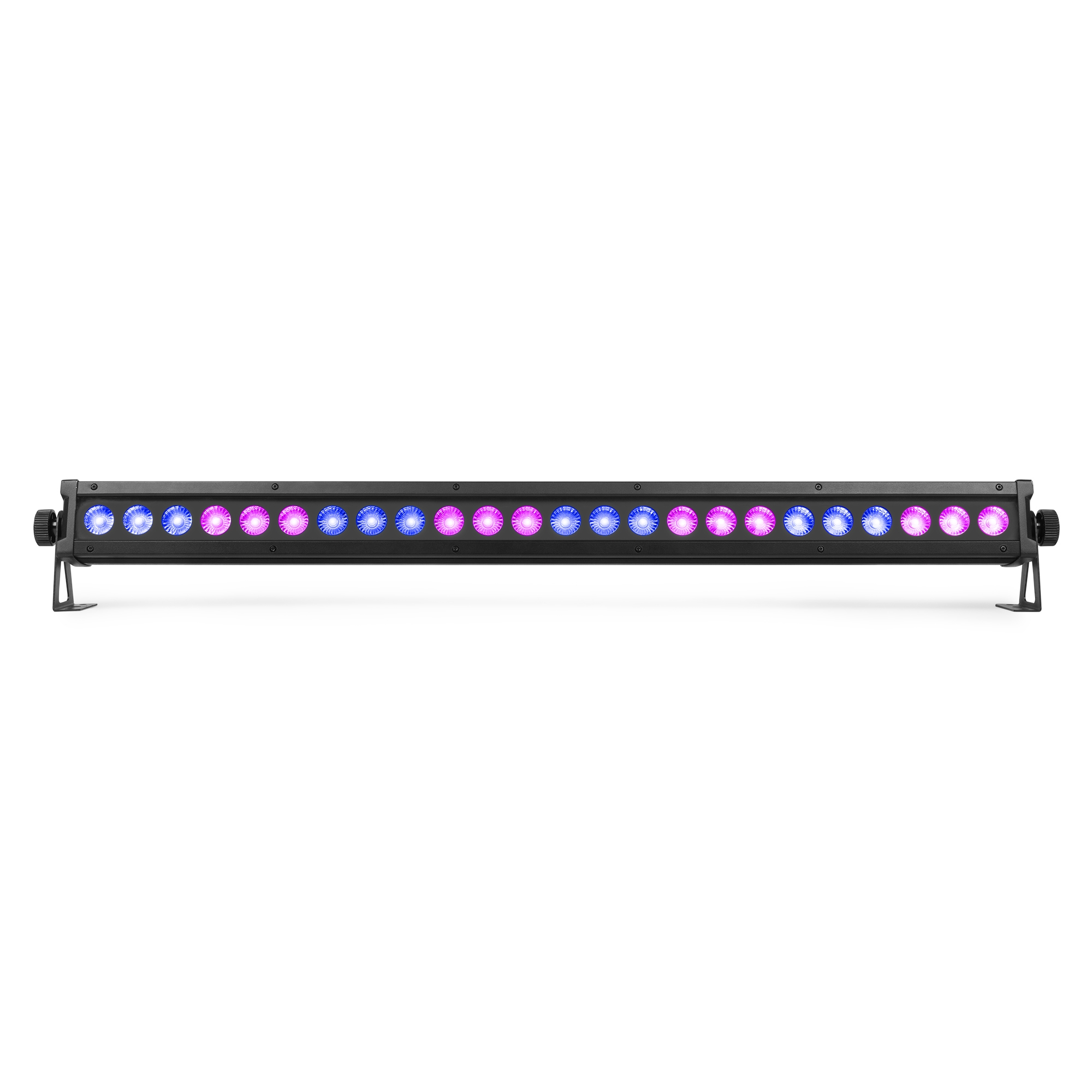

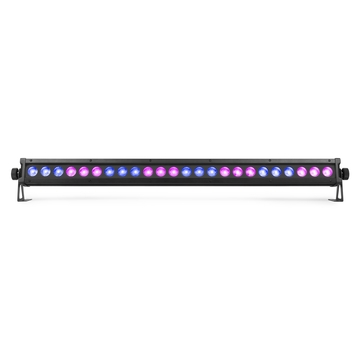

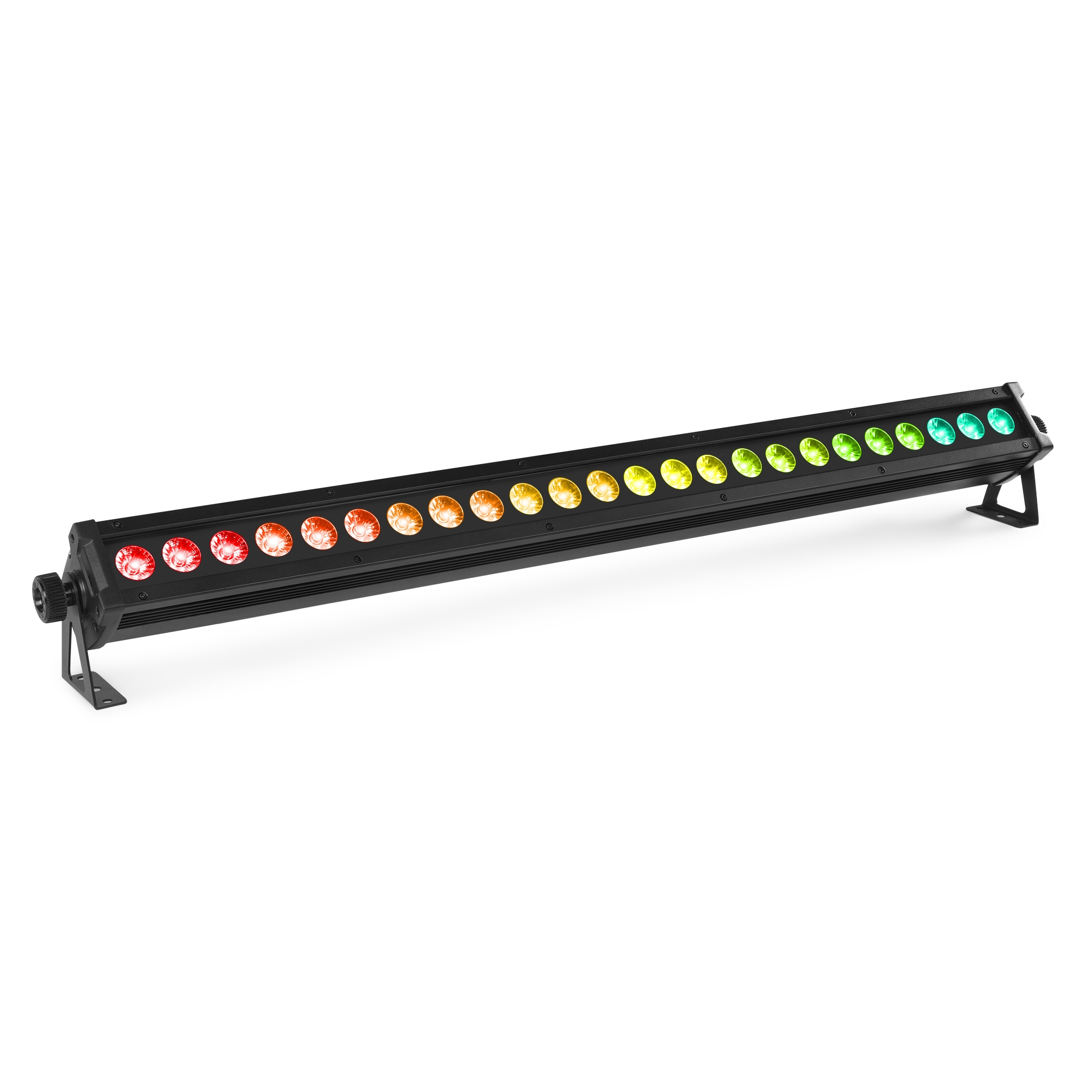

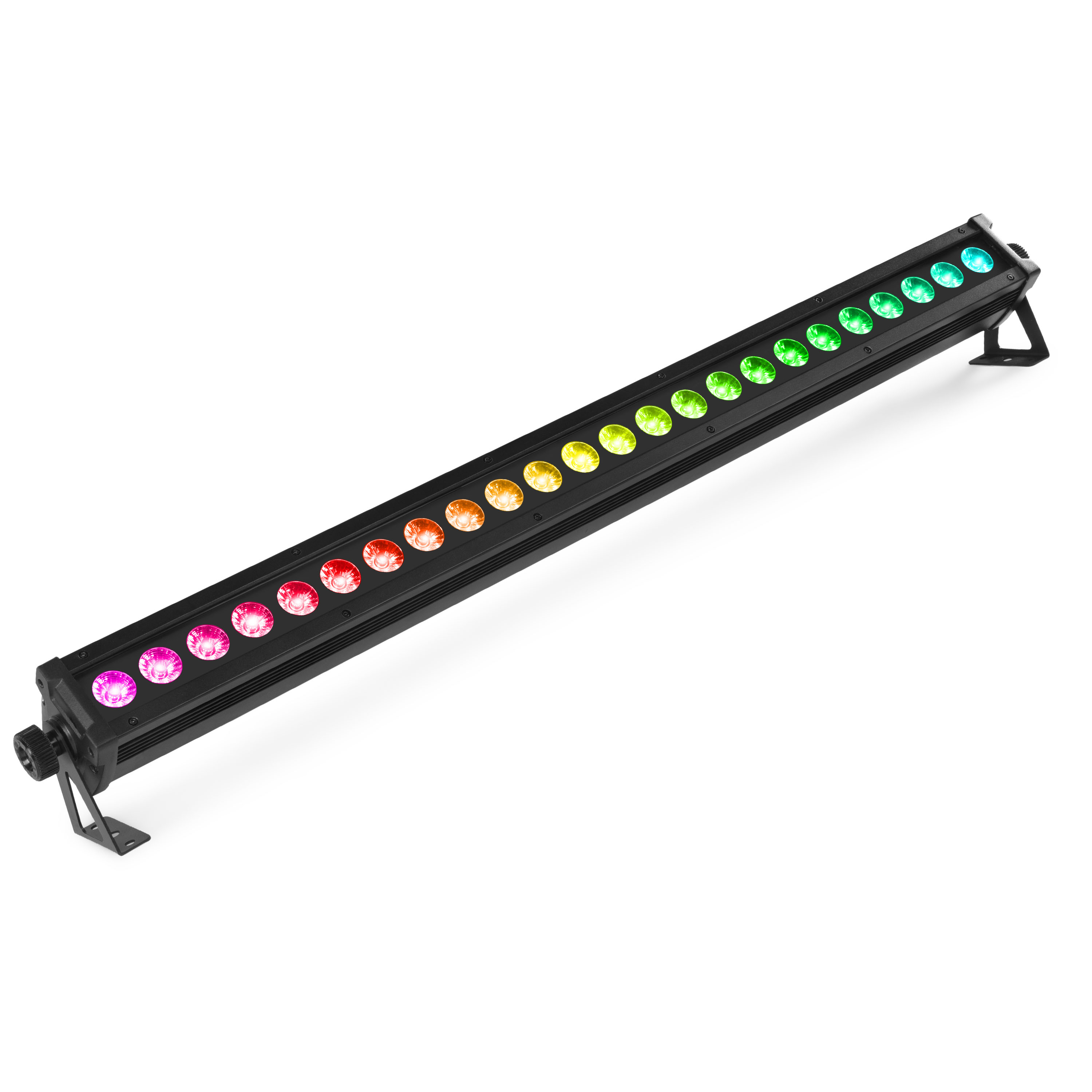

LCB246IP Outdoor LED BAR 24x 6W
Product Code: 150.190
The LCB246IP is a durable aluminium LED bar engineered for outdoor environments. Leveraging cutting-edge LED technology, the LCB246IP delivers stunning wash effects. This fixture is versatile, perfect for everything from uplighting expansive venues and buildings to illuminating stages for live events. Featuring a convection-cooled cast aluminium housing, it includes watertight internal gaskets and weather-resistant power and DMX cable in/out connections. Delivery includes an infrared remote control for quick and easy operation.
- 24x 6W 6-in-1 LEDs
- RGBWA-UV colour mixing
- LEDs with independent control ability
- Waterproof IP65 for indoor/outdoor use
- Different colour presets
- Pre-programmed shows and adjustable speed
- Electronic dimming
- Strobe effect

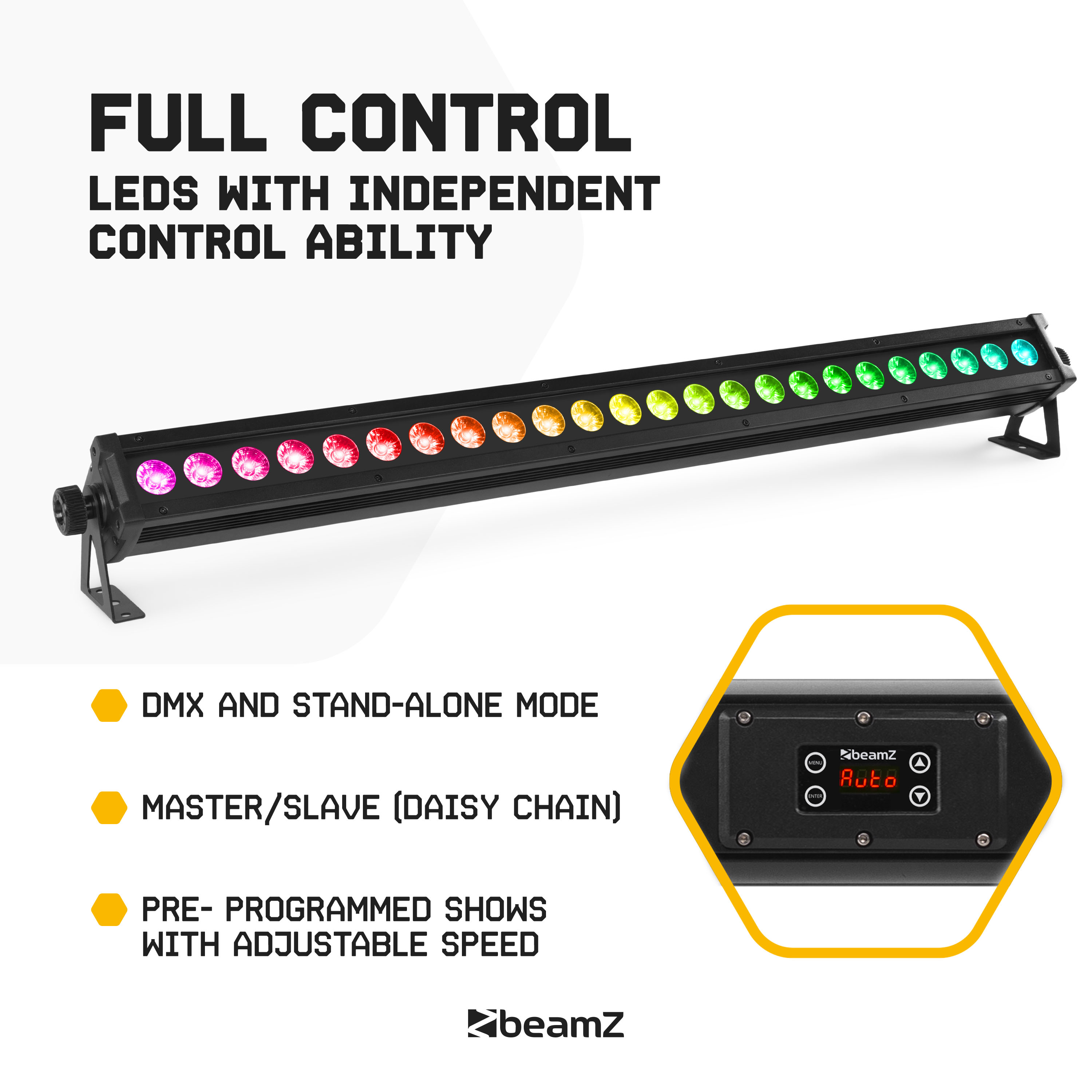

- DMX and Stand-alone mode
- Master/Slave function
- Control panel with LED display (touch button)
- Aluminium housing with convection cooling

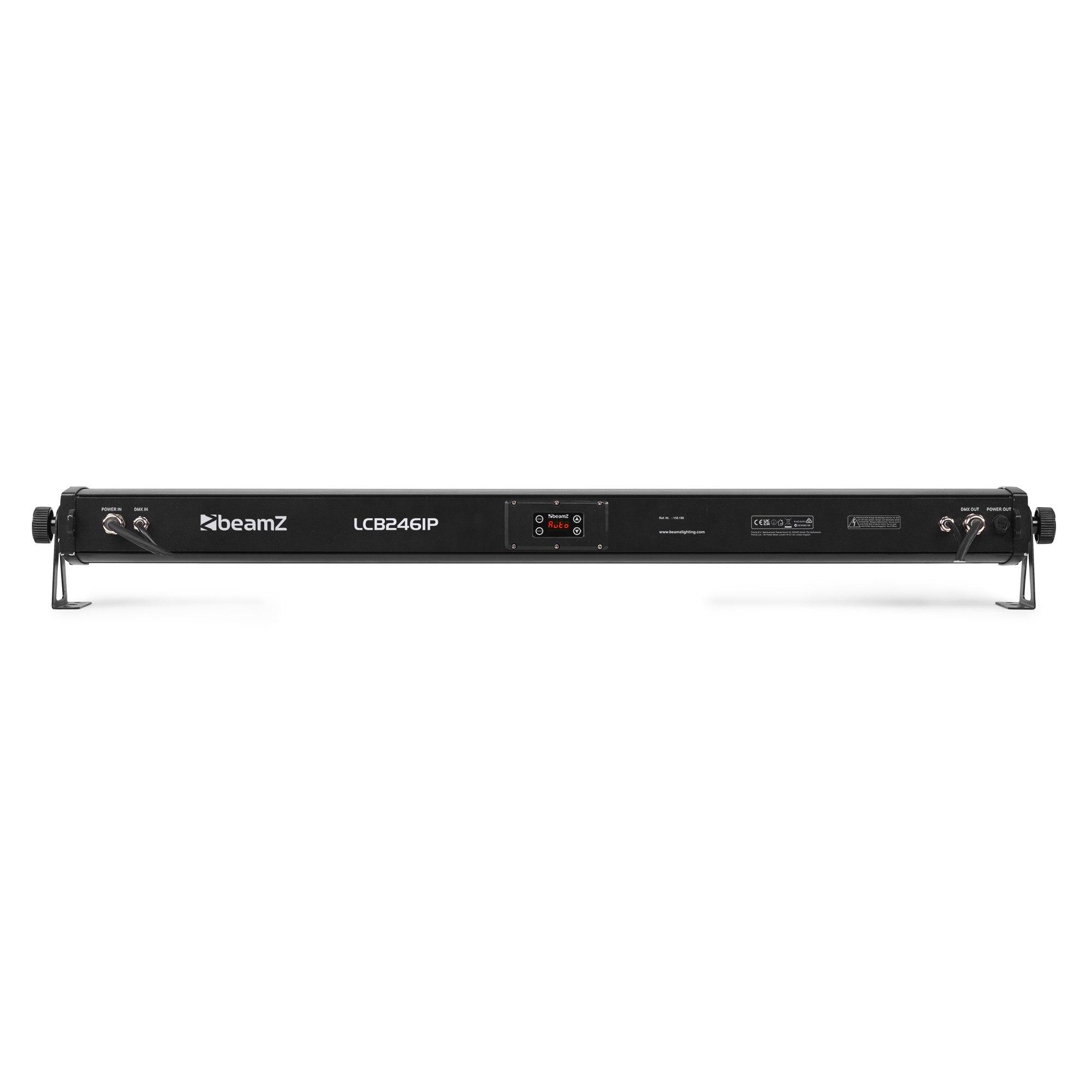

- Waterproof connectors DMX and power
| Product colour | Black |
|---|---|
| Light source | 6-in-1 LED |
| Colours | Red, Green, Blue, Amber, White, Ultra Violet |
| LED power (single LED) | 6W |

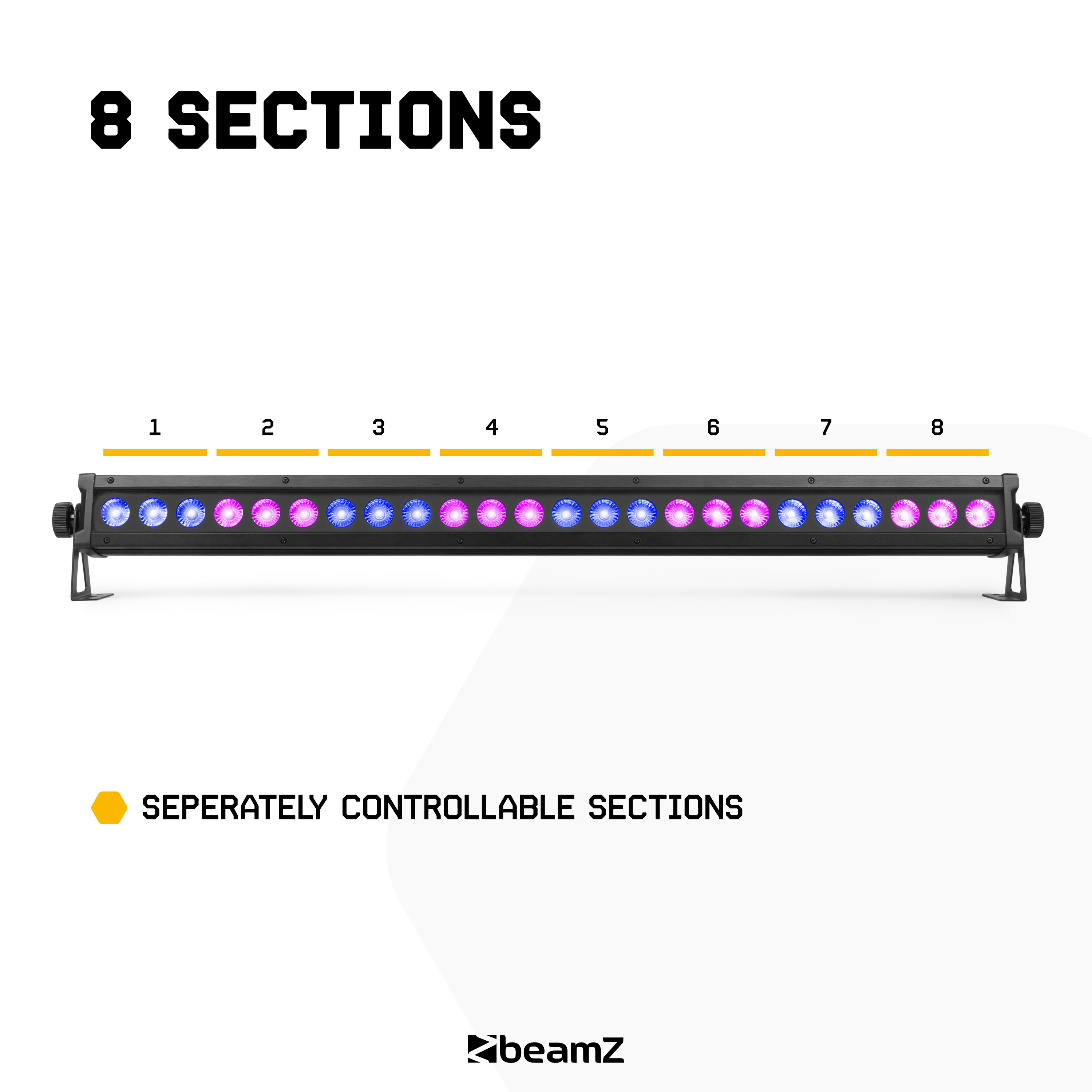

| Quantity of LEDs | 24 (8 sections) |
| Beam angle | 20° |
| Field angle | 48° |
| Illuminance | 11.023 lx @ 1m |
| Flash rate per second | 1 - 23Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to light mode | Yes |
| DMX channels | 6, 8, 11, 48, 52 |
| DMX connection | 3-pin Screw Connector |
| Daisy chain | Yes (max. 6 bars) |
| IP rating | IP65 |
| Cooling | Convection |
| Display | LCD |
| Power plug | Fixed power lead |
| Power consumption | 1.395 - 0.751A |
| Power supply | 240VAC 50Hz |

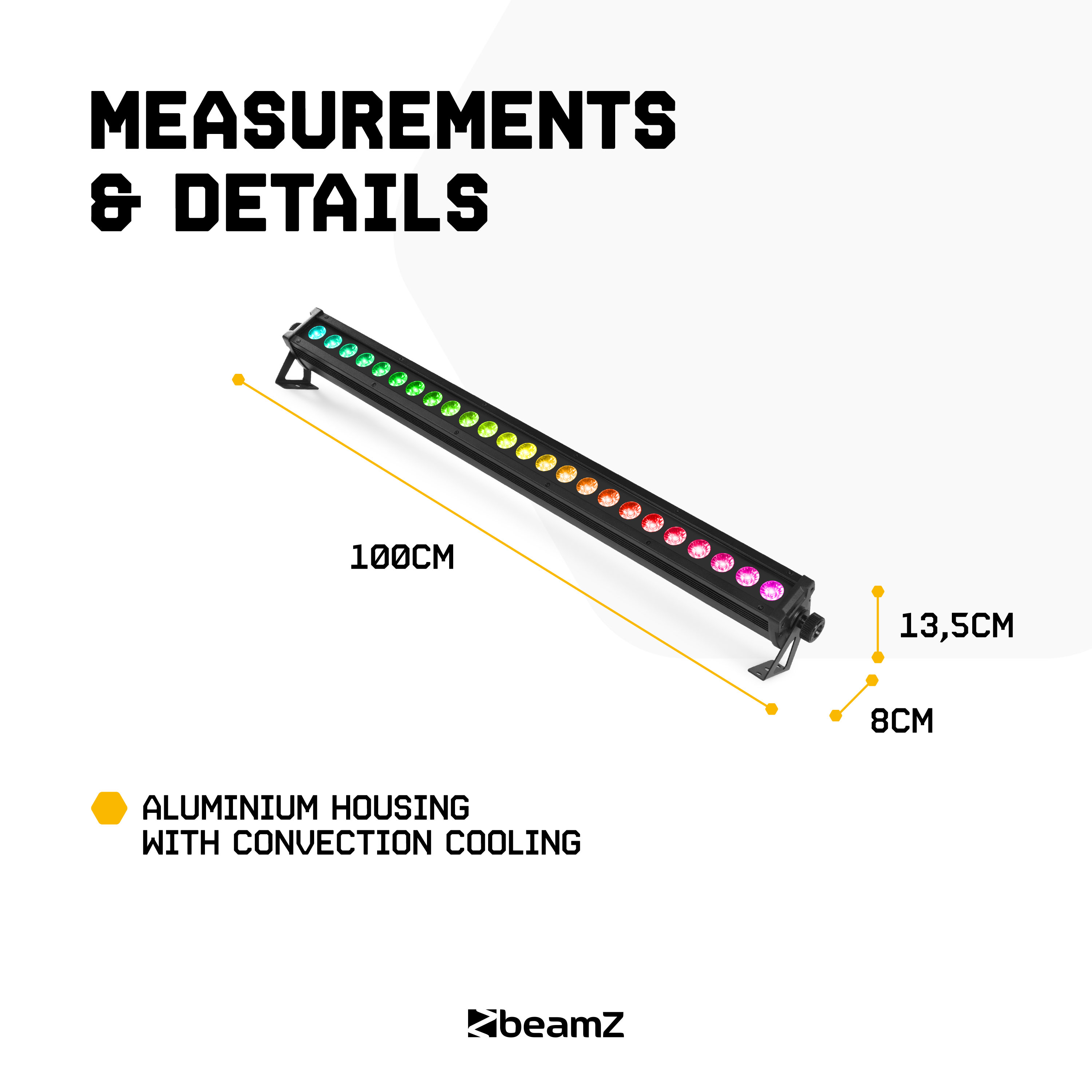

| Dimensions (L x W x H) | 1000 x 80 x 135mm |
| Weight (kg) | 3,75 |
| Included accessories | Mounting bracket, Power cable |
