Professional Amplifier with 8 Ceiling Speakers
Ideal for Cafe's & Small Restaurants, Salons, Small Retail and Home.
Product Code: 953.404-CD8
$1259.00
Pay it in 4 payments of $314.75 with
Professional Amplifier with 8 Ceiling Speakers - Ideal for Cafe's & Small Restaurants, Salons, Small Retail and Home.

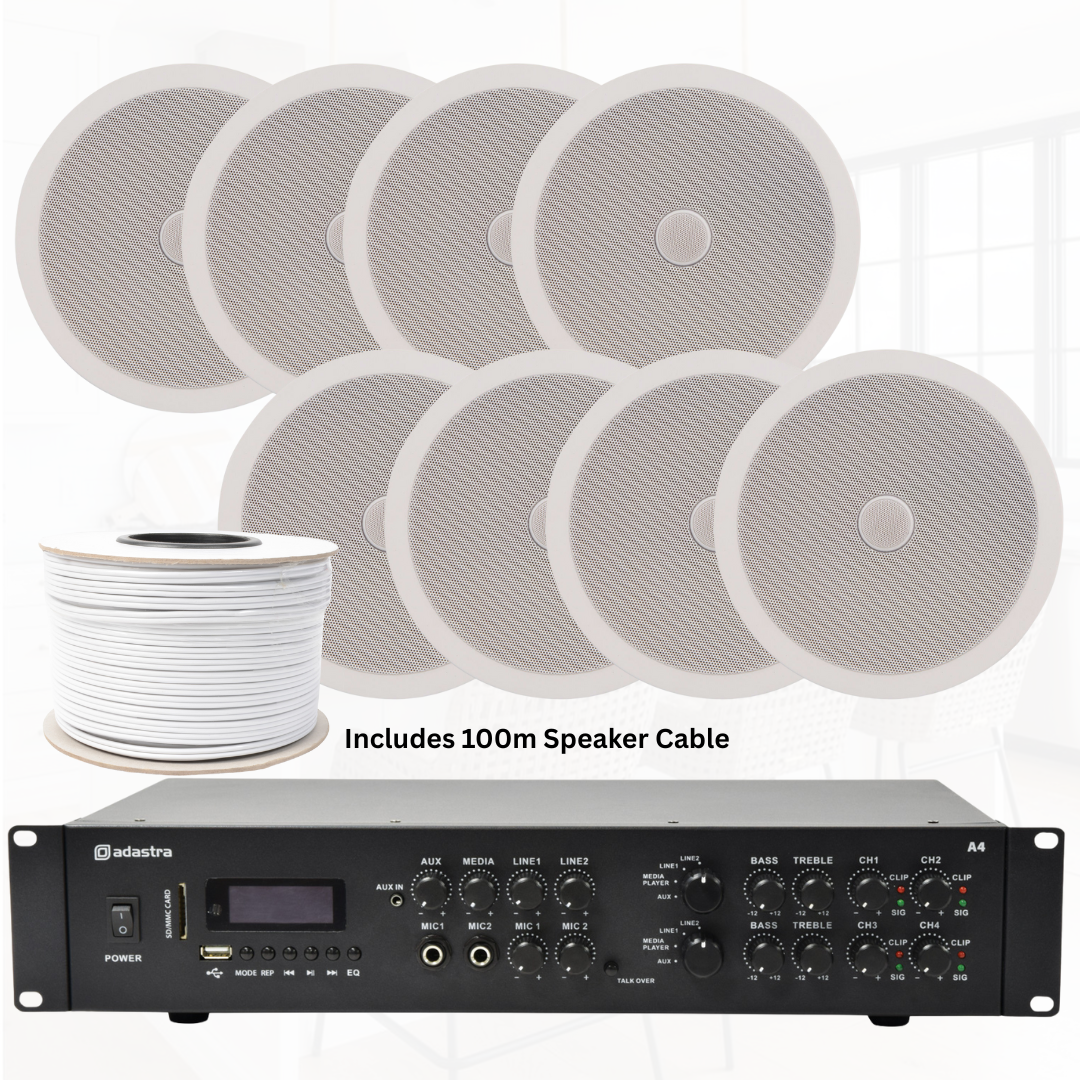

Package includes:
1 x Adastra A4 Amplifier
8 x 8" Full Range Ceiling Speakers with Inbuilt Tweeter
1 x 100m roll of Speaker Cable
Each of the 4 outputs can support 2 speakers, providing 4 separate speaker pair zones with individual volume control.

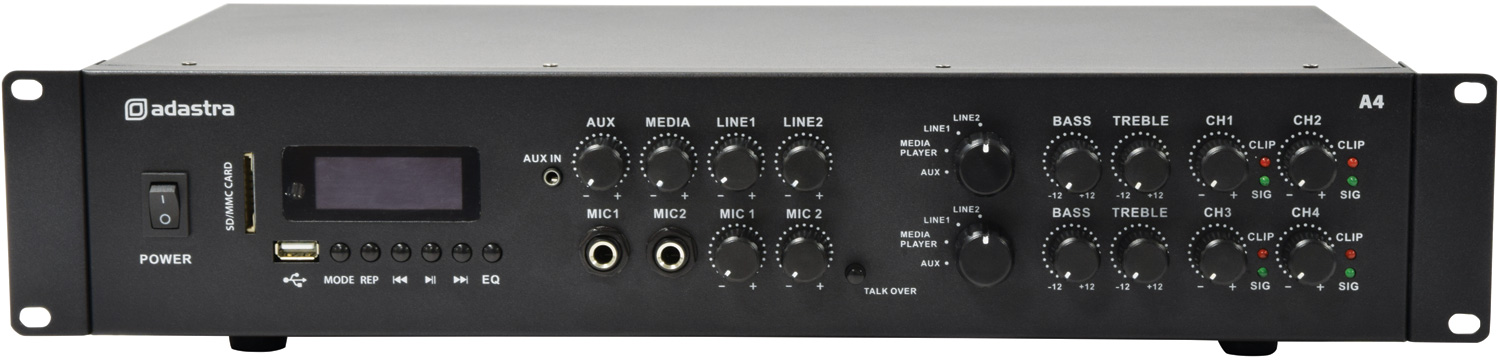

Amplifier Details:

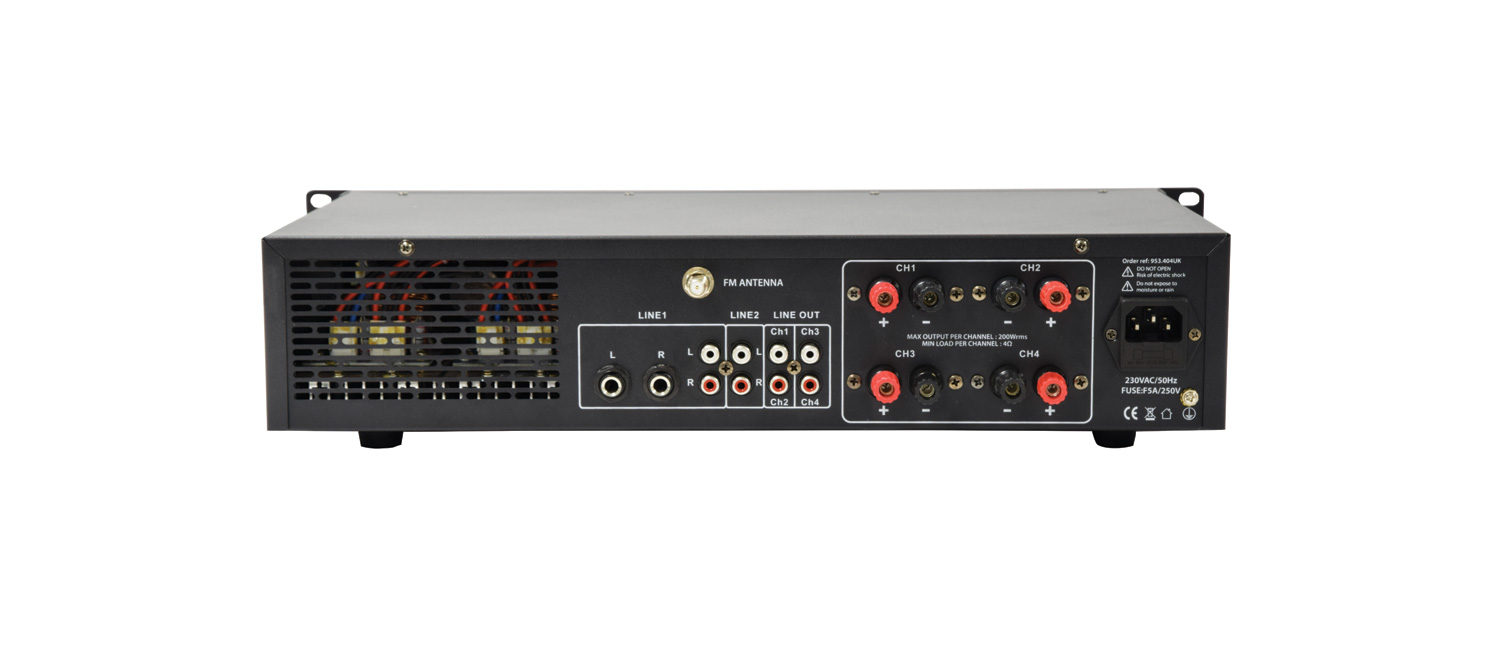

An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels to deliver up to 4 x 200W. Designed to offer installers a comprehensive dual zone PA for bars, restaurants and function rooms.
Independent stereo playback to 2 separate zones
Media player with USB/SD playback
FM radio tuner with external aerial connection
Bluetooth receiver
Specification
| Power supply | 230Vac, 50Hz (IEC) |
| Fuse | F5A, 250V |
| Output power rms | @ 4 Ohms 4 x 200W |
| Output power rms | @ 8 Ohms 4 x 100W |
| Amplifier : | construction Class D |
| Frequency response | 20Hz - 20kHz ±0.5dB |
| Microphone inputs | 2 x 6.3mm jack (mono) |
| Line inputs Line 1: | L+R (6.3mm jack/RCA), Line 2: L+R (RCA) |
| Input sensitivity : | line 0.775Vrms |
| Auxiliary input | 3.5mm stereo jack |
| Input sensitivity : | aux 0.480Vrms |
| Input impedance | 20k Ohms (balanced), 10k Ohms (unbalanced) |
| Audio source | USB/SD mp3 playback, FM tuner, BT receiver |
| Bluetooth version | 2.3 |
| Input controls | Aux, Media, Line1, Line2, Mic1, Mic2, Talkover |
| Line output | 4 x RCA |
| Speaker outputs | 4mm binding posts (4 channels) |
| Antenna connection | F type (FM tuner) |
| Output controls | 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4 |
| Dynamic range | 92dB |
| THD | +N <0.1% |
| Protection | Thermal, over-current, over-voltage, short-circuit |
| Dimensions | 482 x 240 x 88mm |
| Weight | 5.98kg |
Speaker Details:

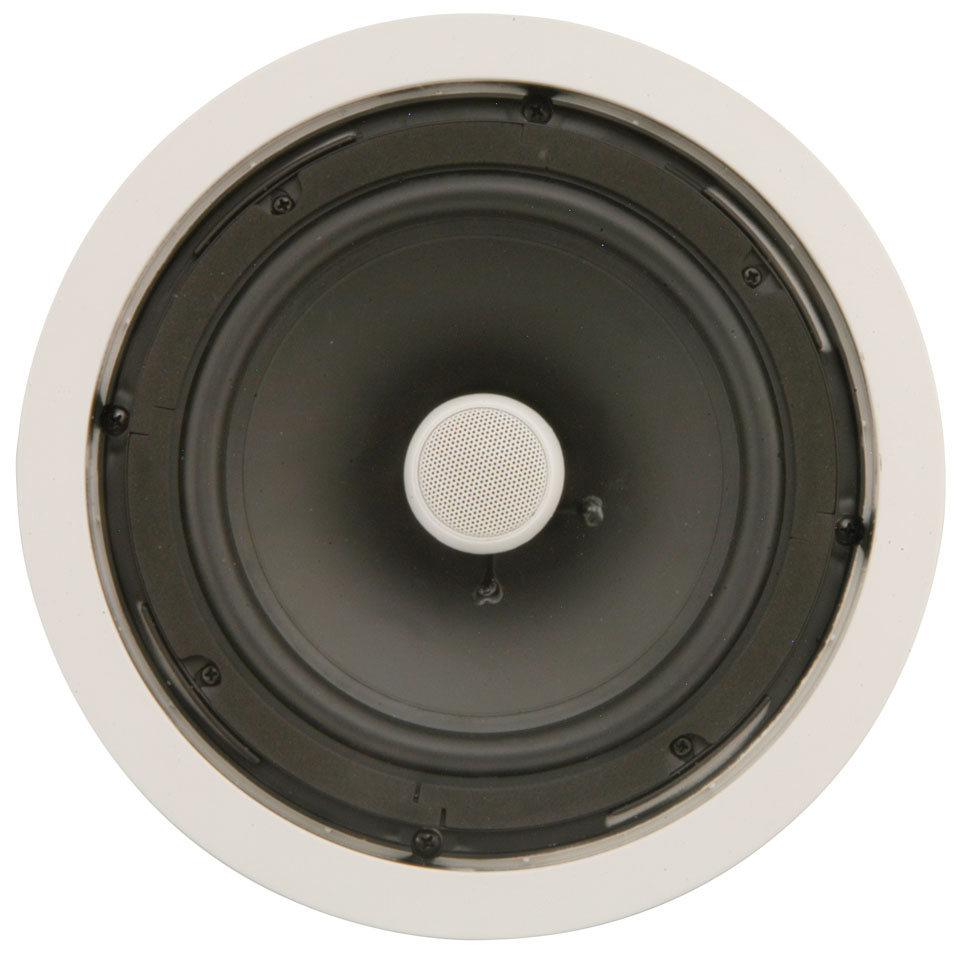

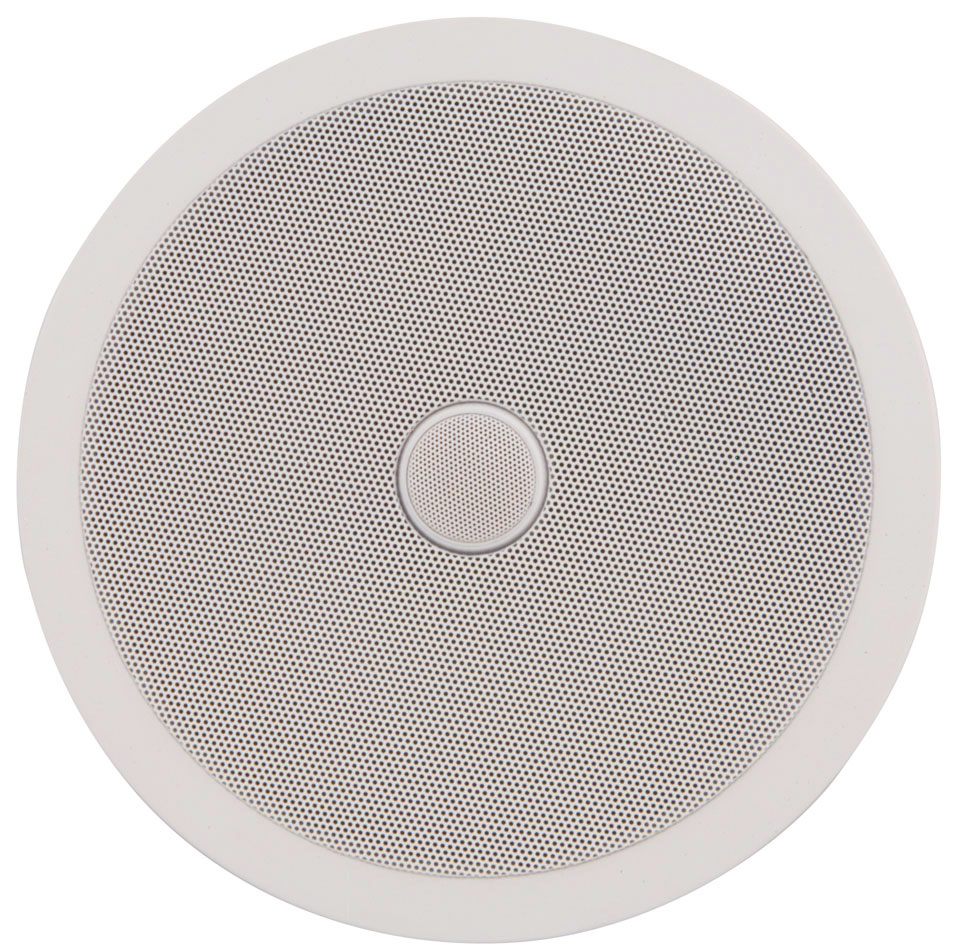

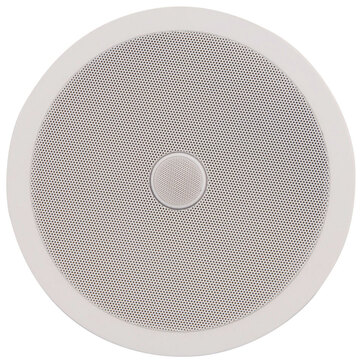

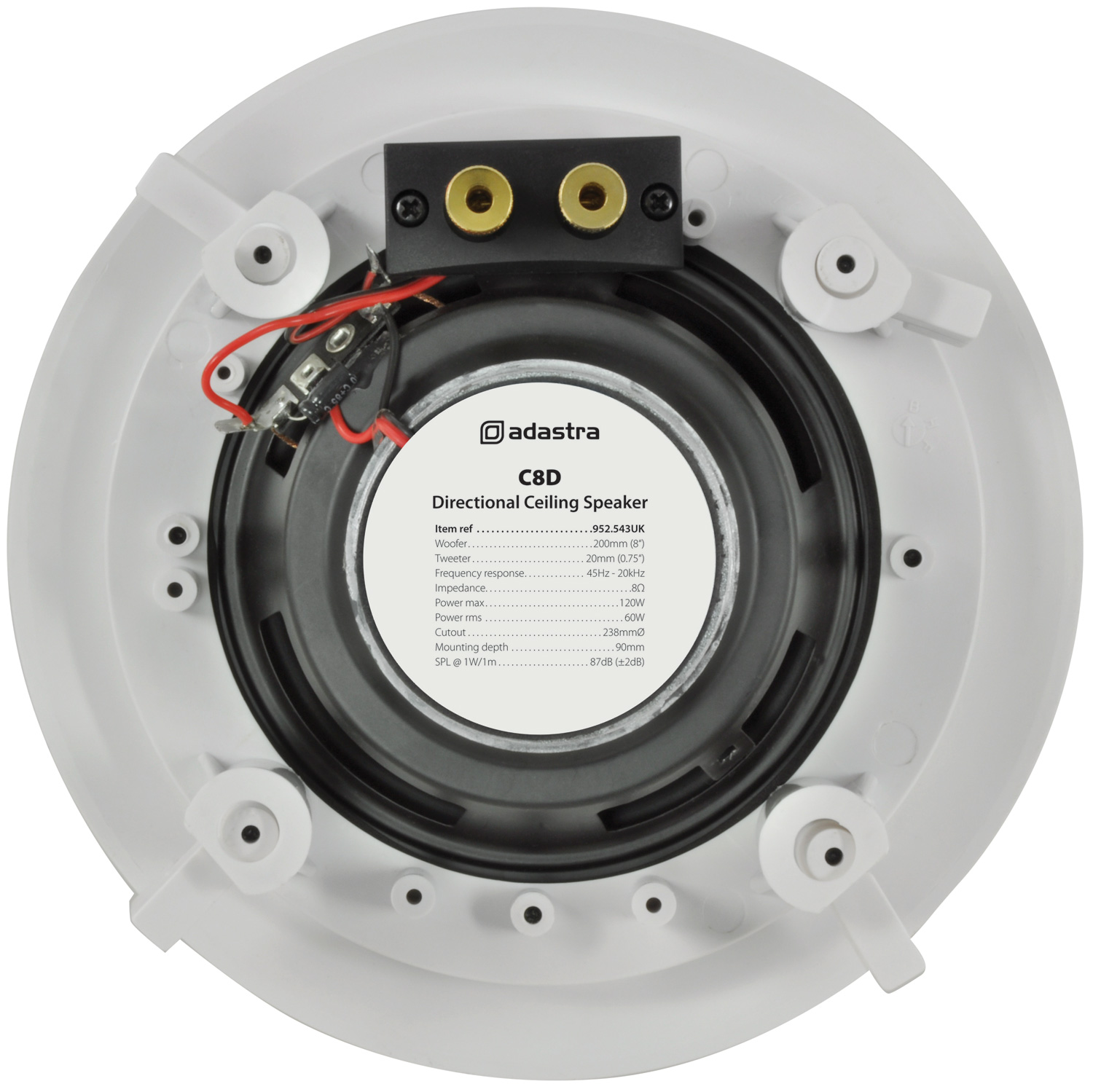

These easy fit ceiling speaker isideal for main speakers, surround sound or remote speaker applications. The two-way design includes a Ferrofluid cooled silk dome tweeter and Polypropylene woofer with rubber surround to deliver the highest level sonic performance. The adjustable tweeter allows for the high frequencies to be focused in the direction of the listening area, this increases the flexibility when locating the speakers off-axis from the listeners.
- 2-way easy fit ceiling speakers
- Polypropylene woofer with rubber surround and Ferrofluid cooled silk dome tweeter
- Adjustable directional tweeter
- Spring-loaded terminal connections
- Fitted with "dog-ear" mounts
| Size | 200mm (8") |
|---|---|
| Woofer | 200mm (8") |
| Tweeter | 25mm (1") |
| Frequency response | 45Hz - 20kHz |
| Impedance | 8 ohms |
| Power max. | 120W |
| Power rms | 60W |
| Sensitivity @ 1W/1m | 87dB (±2dB) |
| Cutout | 238mmØ |
| Mounting depth | 90mm |
| Dimensions | 101 x 271mmØ |
| Weight | 1.7kg |
| Packed quantity | Single |
Cable Details:

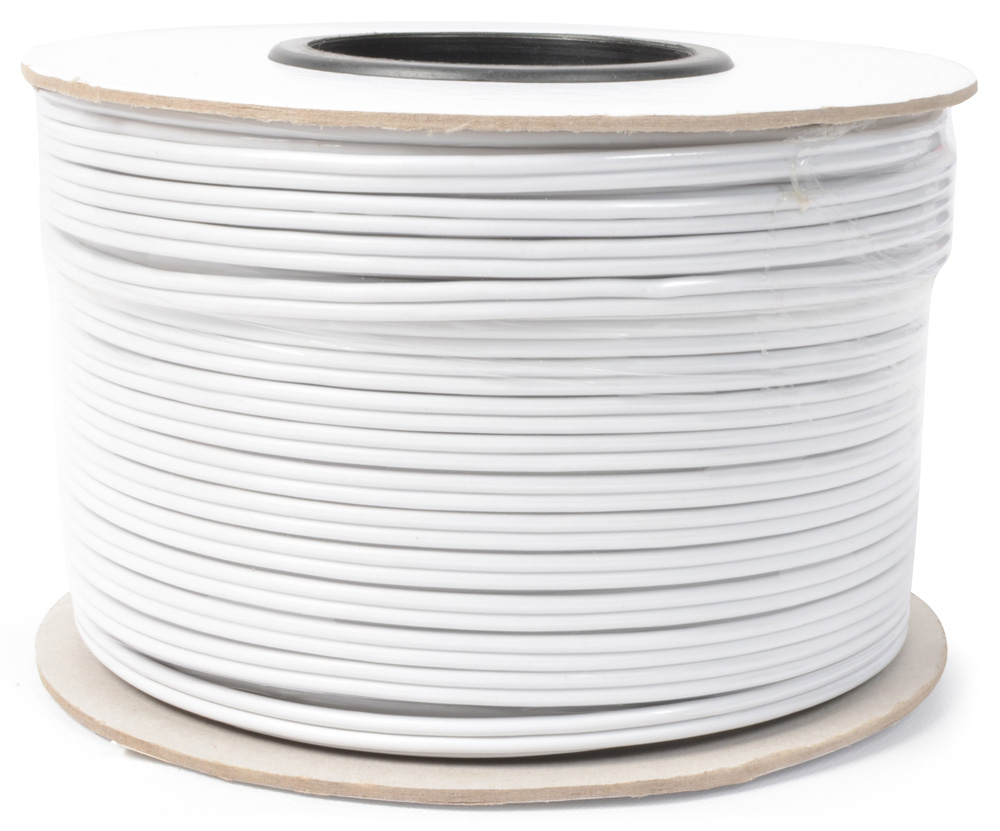

Speaker Cable 1.5mm White 100m Reel
Flexible, heavy duty speaker cable with polarity line indicator. Supplied on reels of 100m.
| CSA | 1.5mm² |
|---|---|
| Conductor | 48x0.2mm |
| Sheath | White |
| Outer diameter | 3.2 x 6.6mm |
| Weight | 3,20 |
