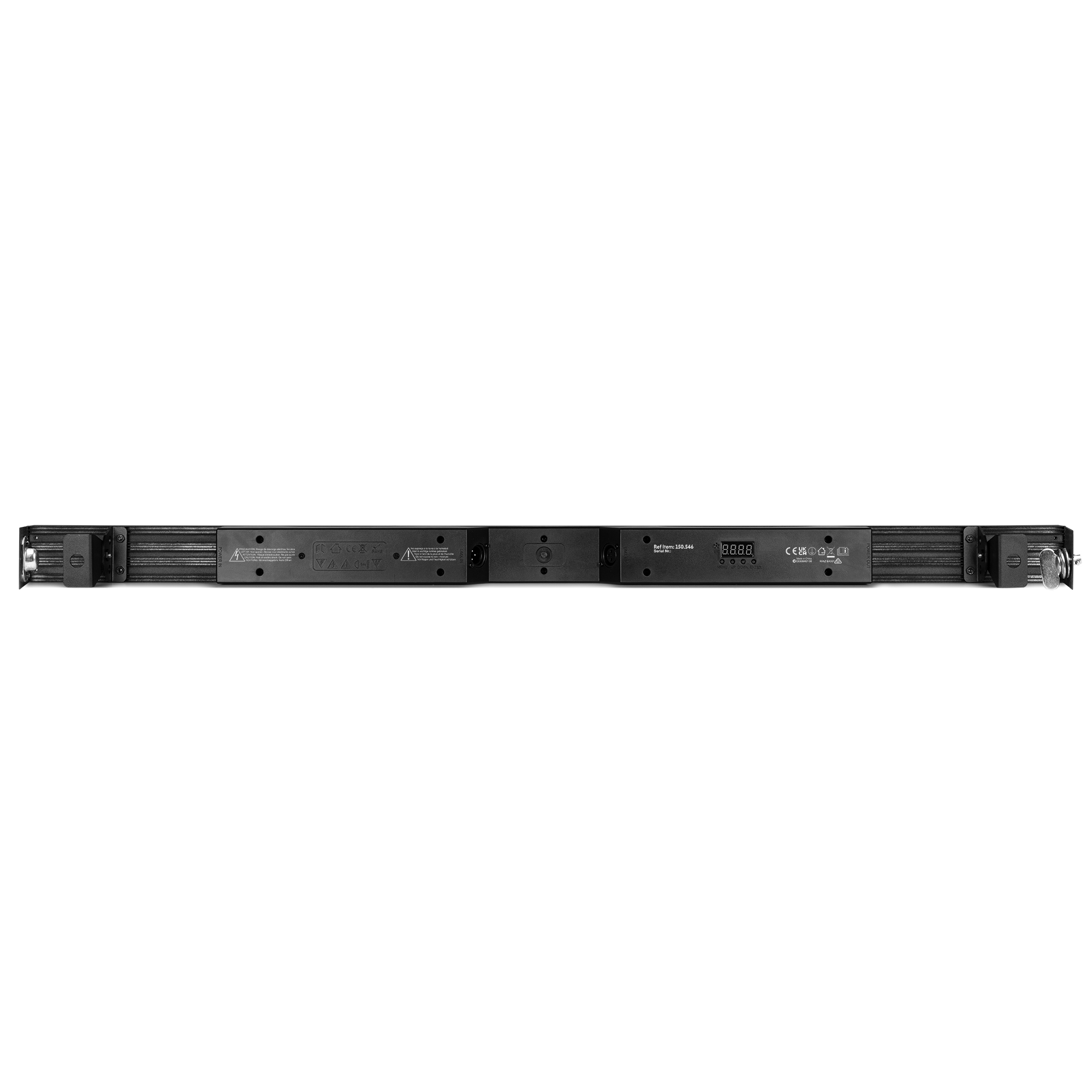

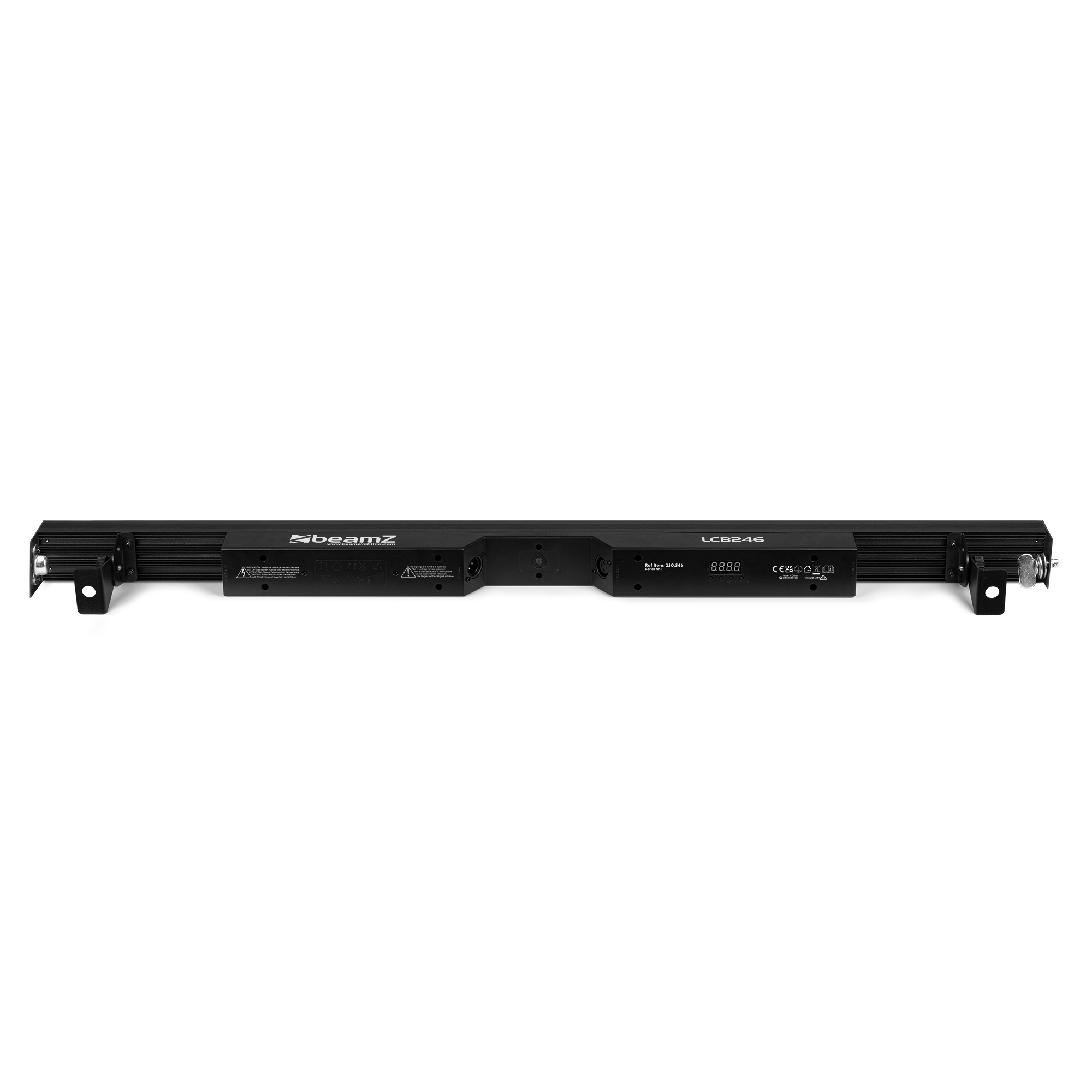

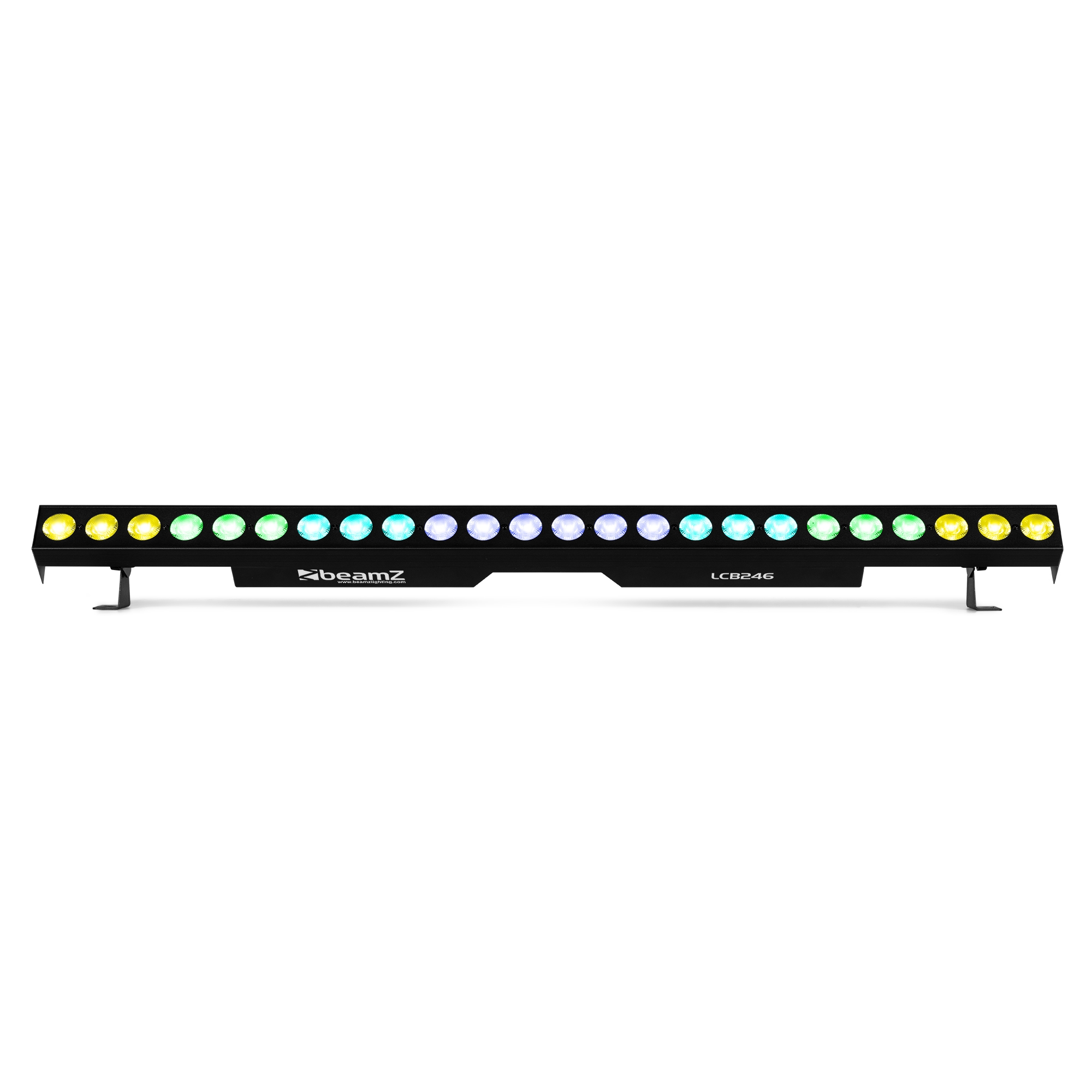

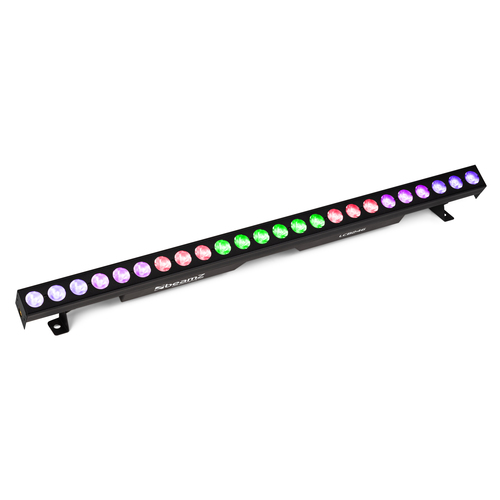

LCB246 LED BAR 24x6W RGBAW-UV
Product Code: 150.546

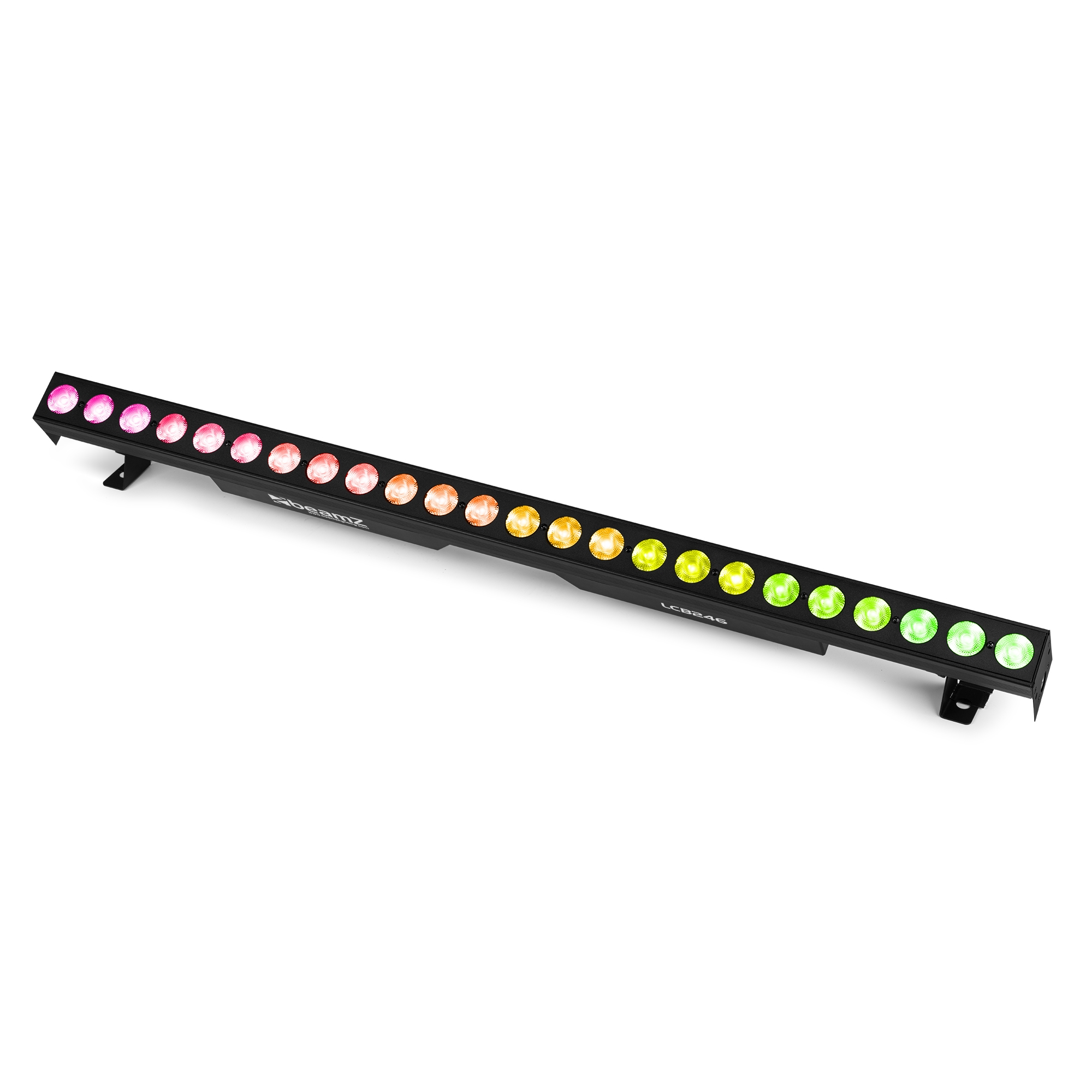

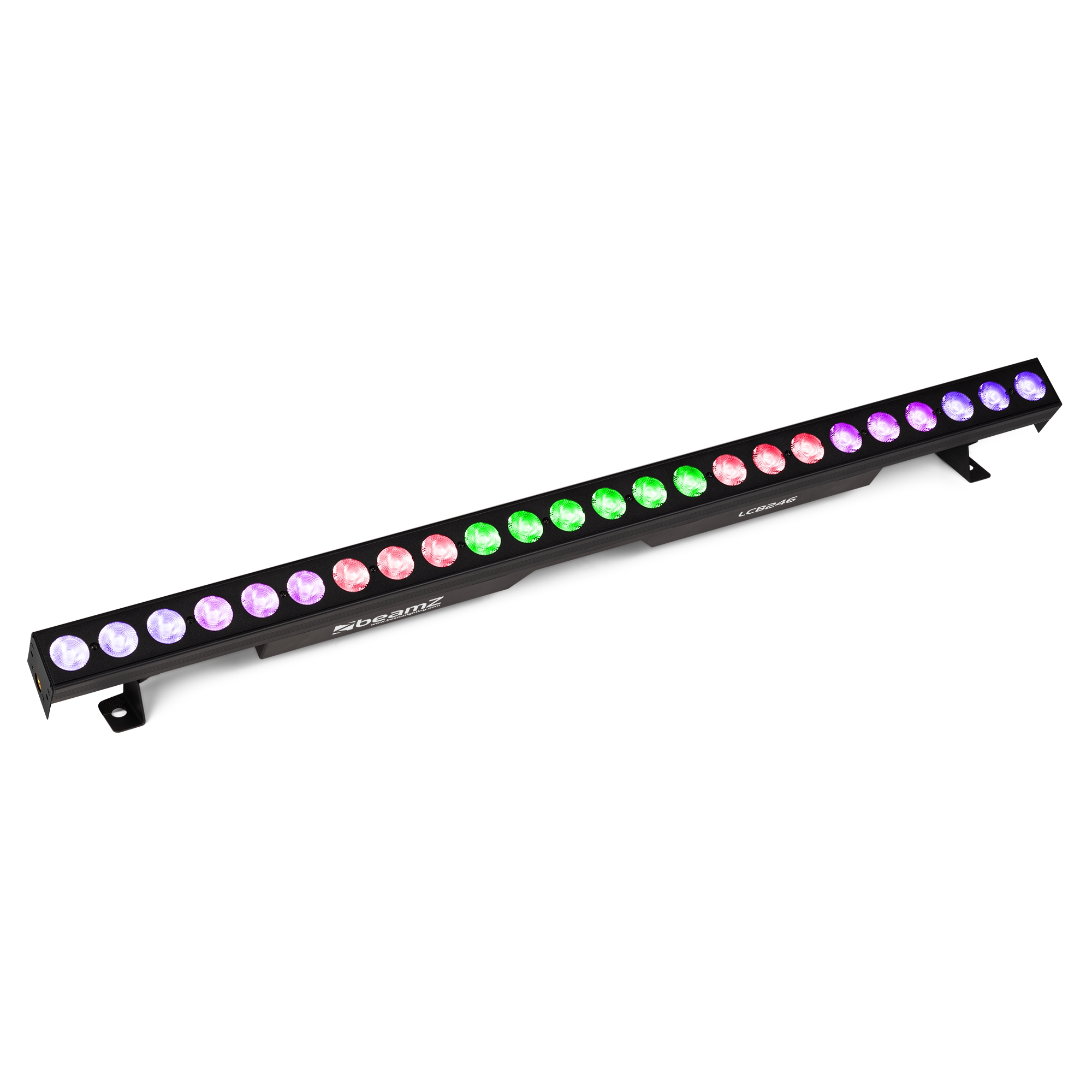

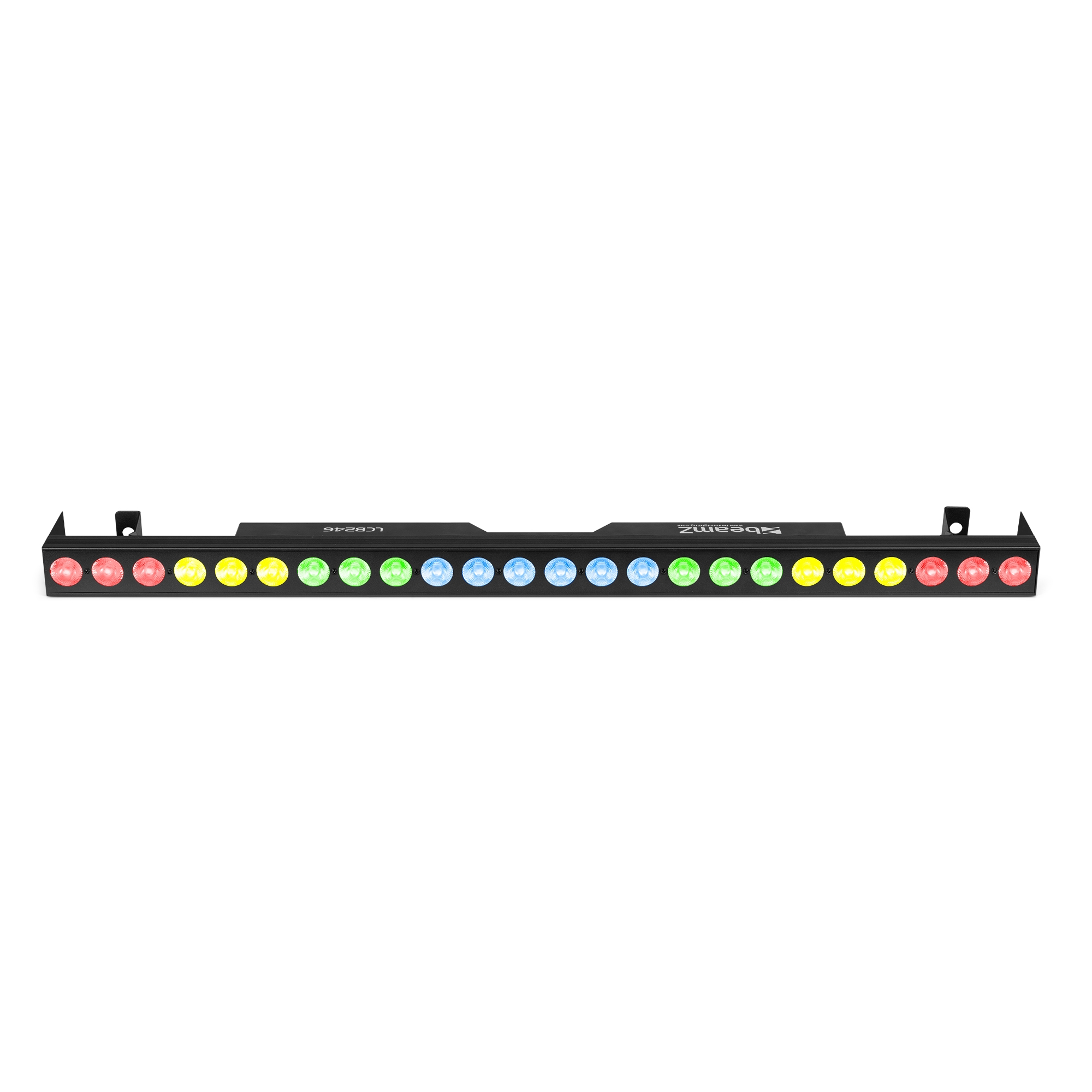

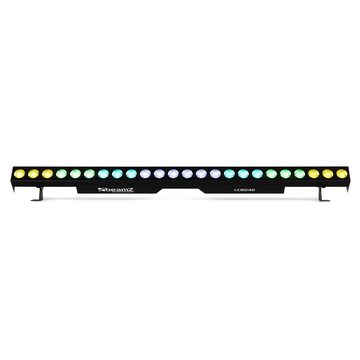

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.

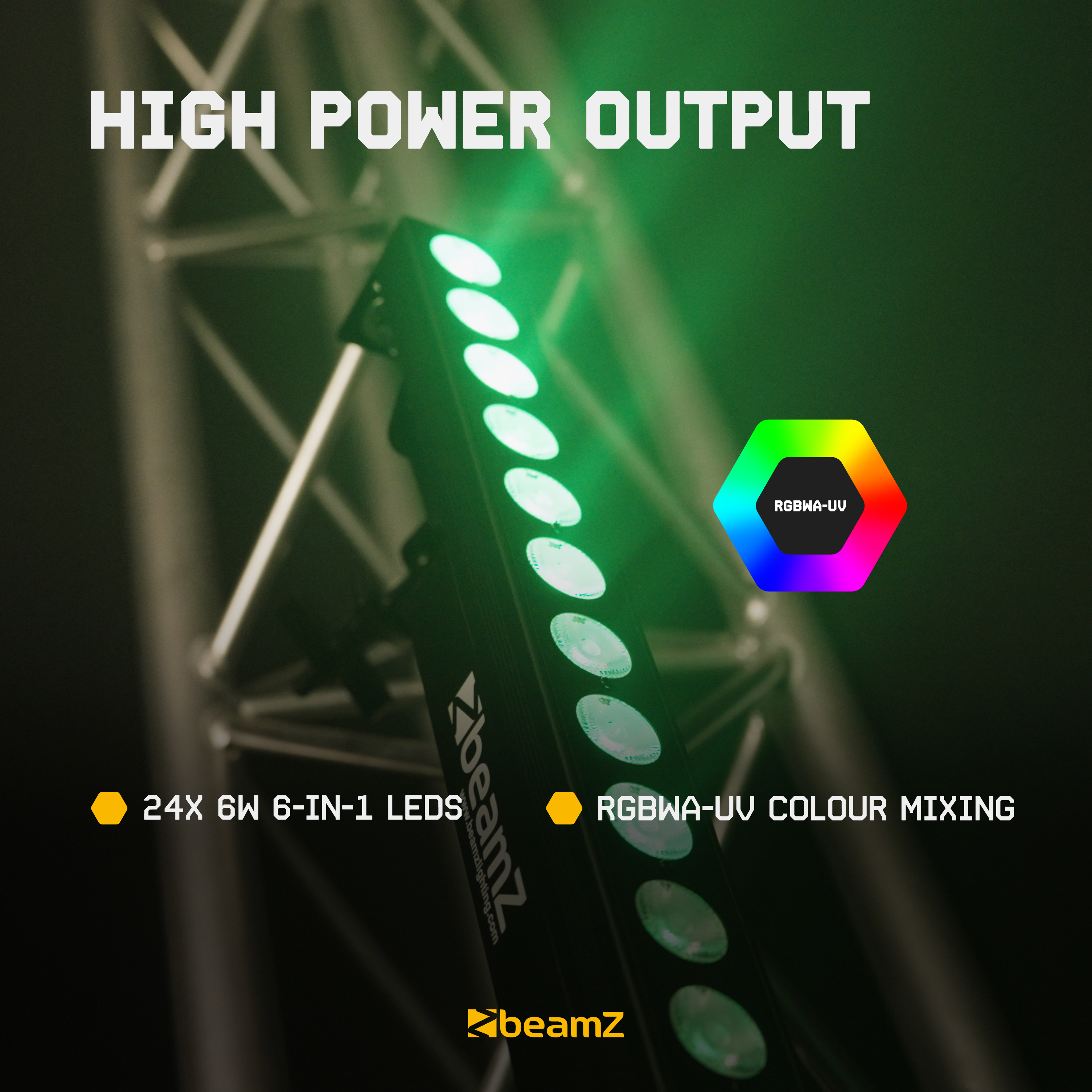

- 24x 6W 6-in-1 LEDs
- RGBAW-UV colour mixing

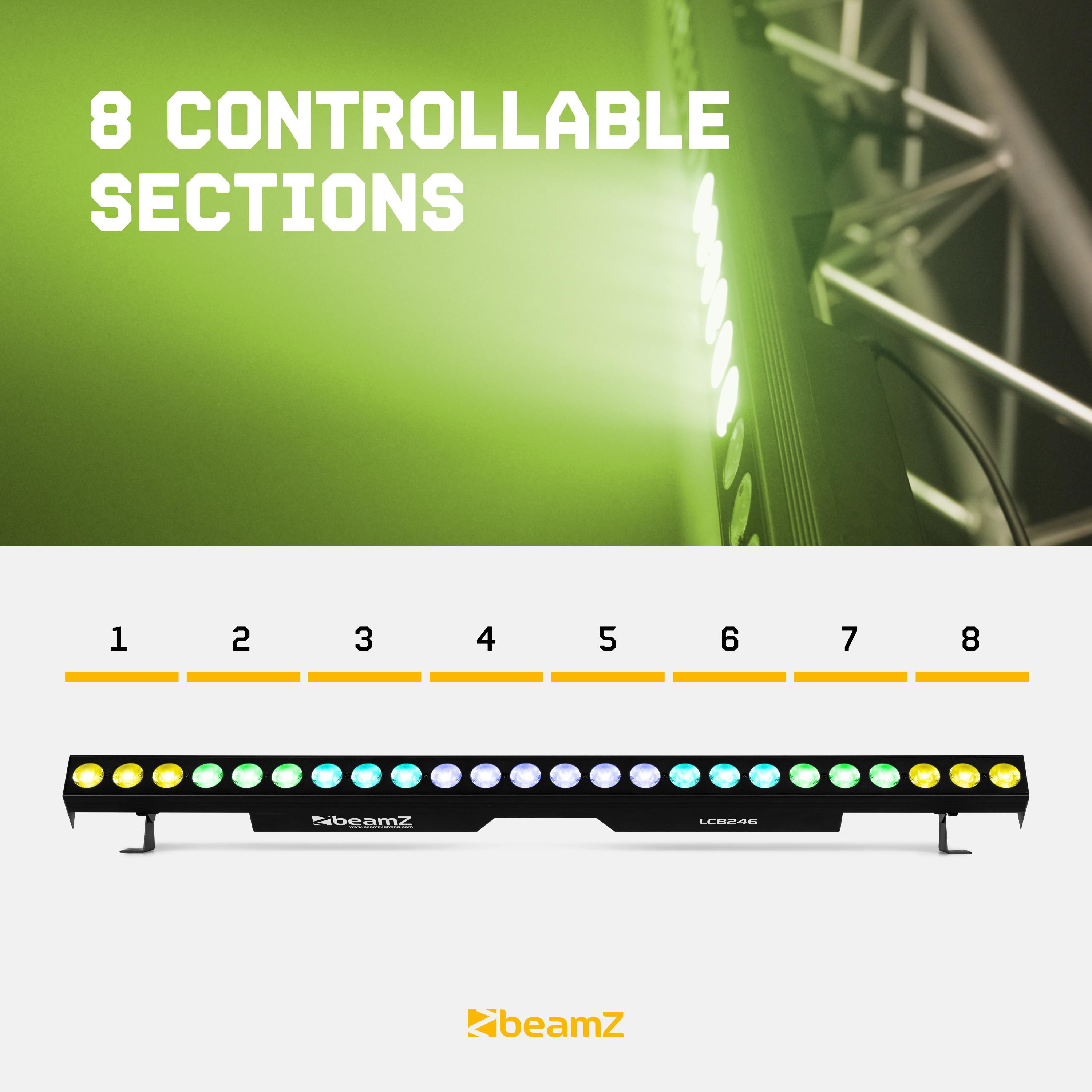

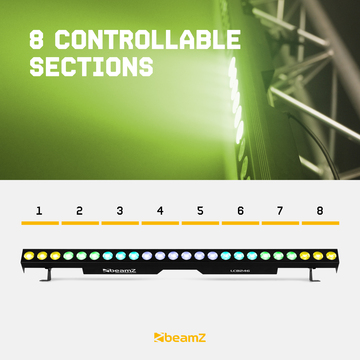

- 8 separate controllable sections
- 54 Pre-programmed shows
- Auto mode programs
- Sound activated
- DMX and Stand-alone mode
- Master/slave function
- DMX in/output via 3-pin XLR
- Control panel with LED display
- Aluminium housing

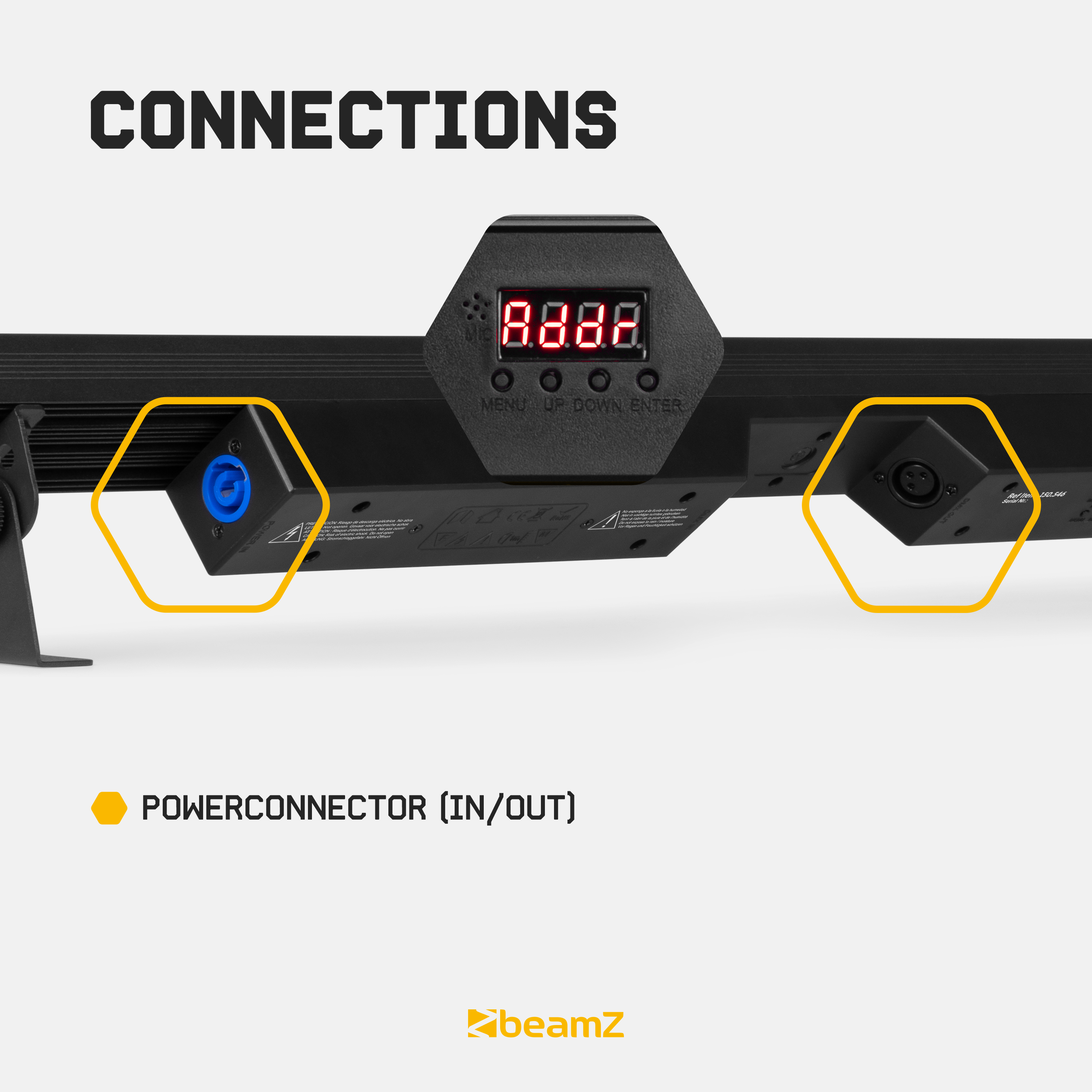

- Powerconnector in/output

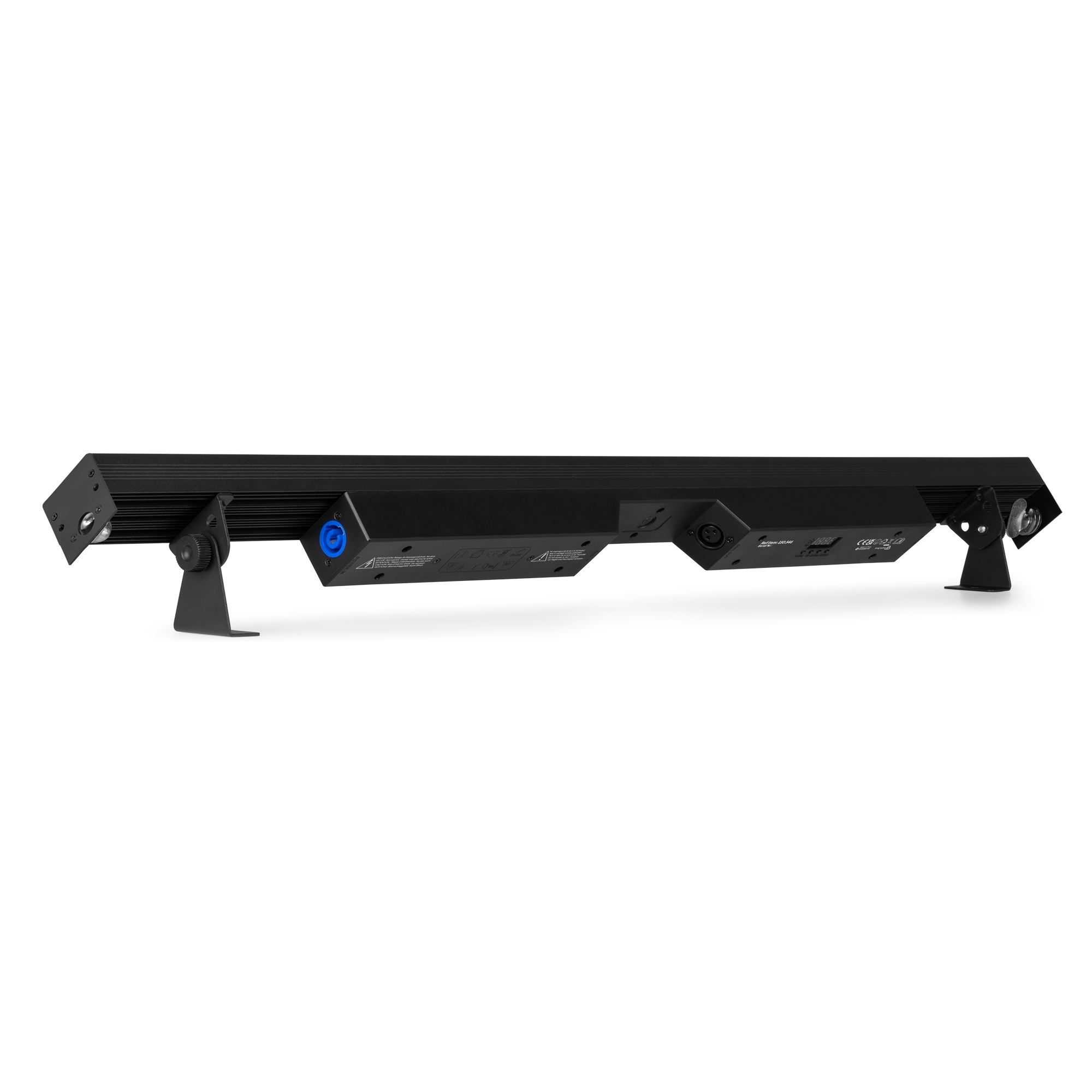

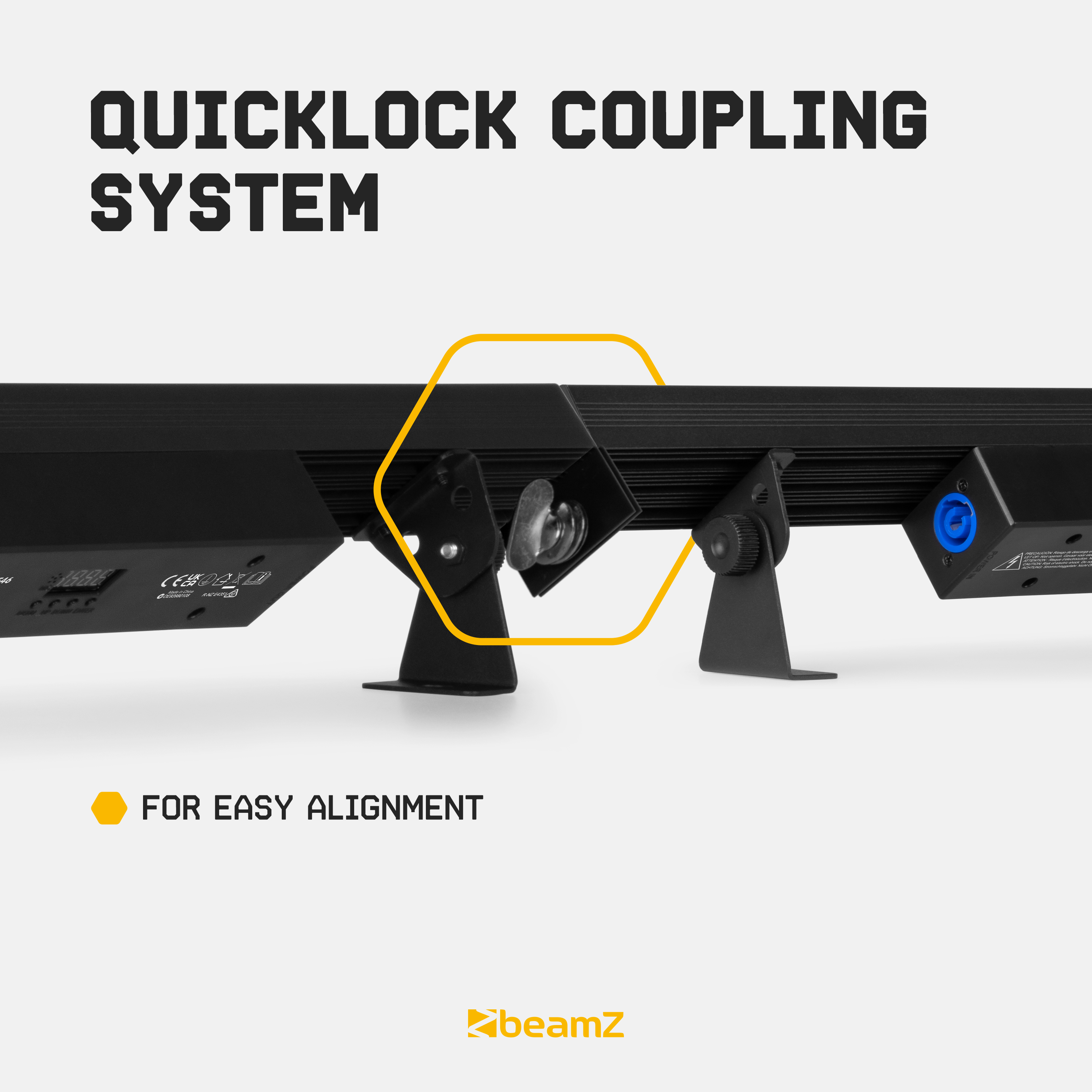

- Incl. Quick Lock Brackets
| Product colour | Black |
|---|---|
| Light source | 6-in-1 LED |
| Colours | Red, Green, Blue, Amber, White, Ultra Violet |
| LED power (single LED) | 6W |
| Quantity of LEDs | 24 |
| Beam angle | 11° |
| Field angle | 24° |
| Illuminance | 7.613 lx @ 1m |
| Flash rate per second | 1 - 23Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to light mode | Yes |
| RDM | Yes |
| DMX channels | 6, 8, 11, 48, 52 |
| DMX connection | 3-pin XLR |
| Daisy chain | Yes (max. 6 bars) |
| IP rating | IP20 |
| Cooling | Convection |
| Display | LED |
| Power plug | P-Con |
| Power consumption | 1.635 - 0.771A |
| Power supply | 240VAC 50Hz |

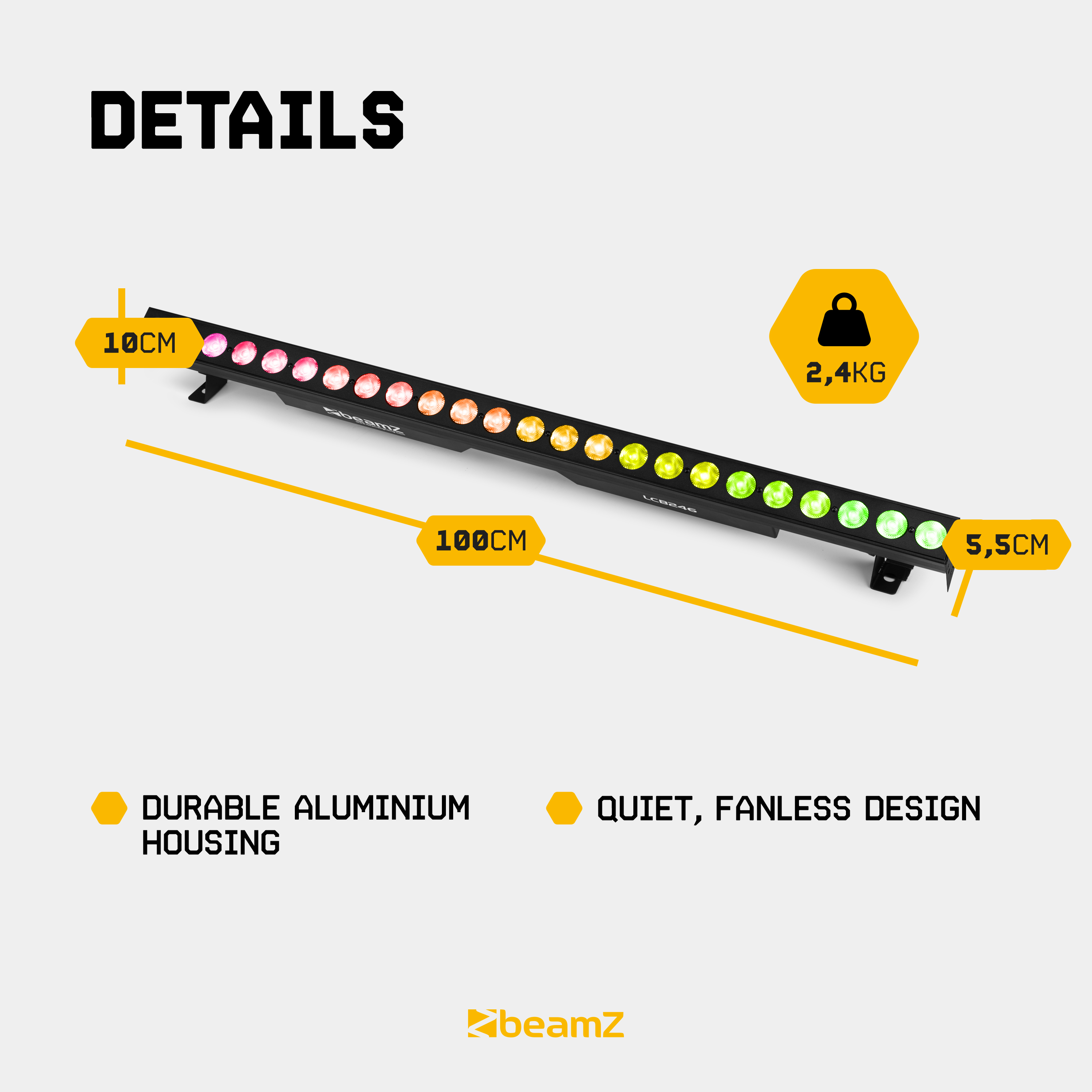

| Dimensions (L x W x H) | 1000 x 55 x 105mm |
| Weight (kg) | 2,10 |
| Included accessories | Mounting bracket, Power cable |
