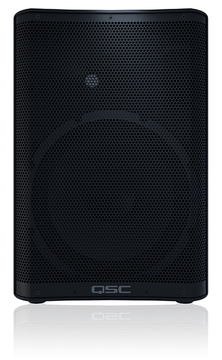

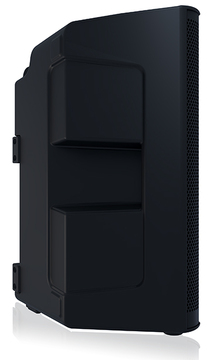

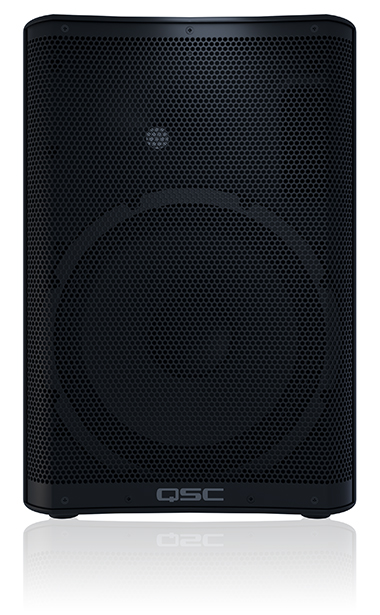

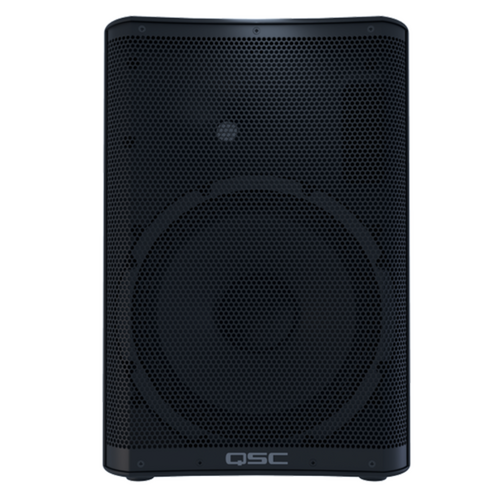

QSC CP12
12-inch Compact Powered Loudspeaker
Product Code: QSCCP12
High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier

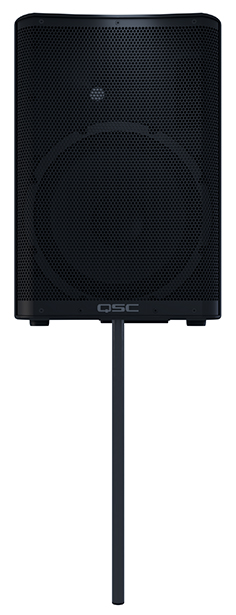

- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 6 Year Warranty when registered within 30 days of purchase
| Model | CP12 |
|---|---|
| Configuration | Two-way active loudspeaker |
| LF Transducer: | 305 mm (12 in), cone |
| HF Transducer: | 35.6 mm (1.4 in) compression driver |
| Frequency Response (-6 dB) | 49 - 20 kHz |
| Frequency Range (-10 dB) | 47 - 20 kHz |
| Nominal Coverage Angle: | 75° Axisymetric |
| Maximum Rated SPL1: | 126 dB |
| Amplifier: | Class D Peak: 800 W (LF), 200 W (HF) |

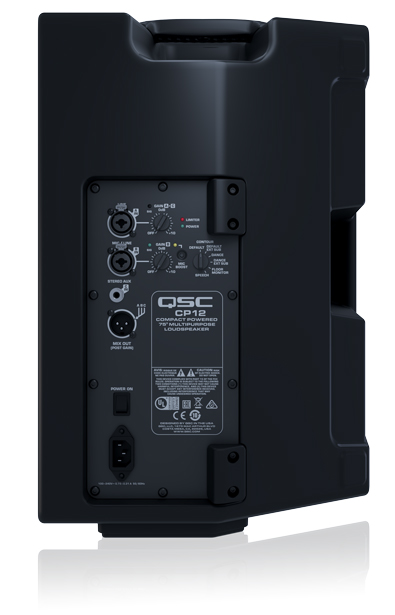

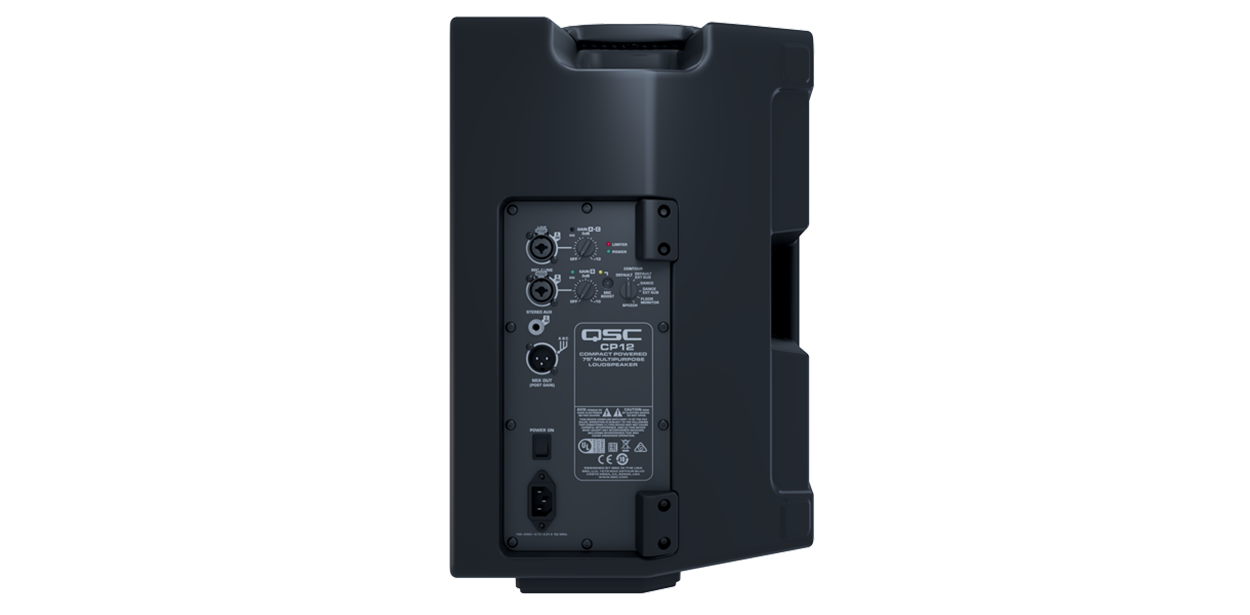

| Controls: | Power 2 × Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators: | Power LED 2 × Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors: | 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 × 3.5 mm TRS (Stereo Input) 1 × XLR/M (Mix Output) 1 × IEC power connector |
| AC Power Input: | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption (1/8th Power): | 100 VAC, 0.75A - 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M8 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |
| Speaker Dimensions (H×W×D): | 516 × 350 × 323 mm 20.3 × 13.8 × 12.7 in |
| Carton Dimensions (H×W×D): | 430 × 430 × 604 mm 17 × 17 × 23.8 in |
| Net Weight: | 13.7 kg / 30.3 lb |
| Shipping Weight: | 16.5 kg / 36.4 lb |
| Regulatory: | EMC, UL, CB |
| Optional Accessories: | CP12 Tote, CP12 Outdoor Cover, CP12 Yoke |
1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise
*Preliminary specifications are subject to change.
