LCBP450 Combi LED Panel PIX
Product Code: 150.673

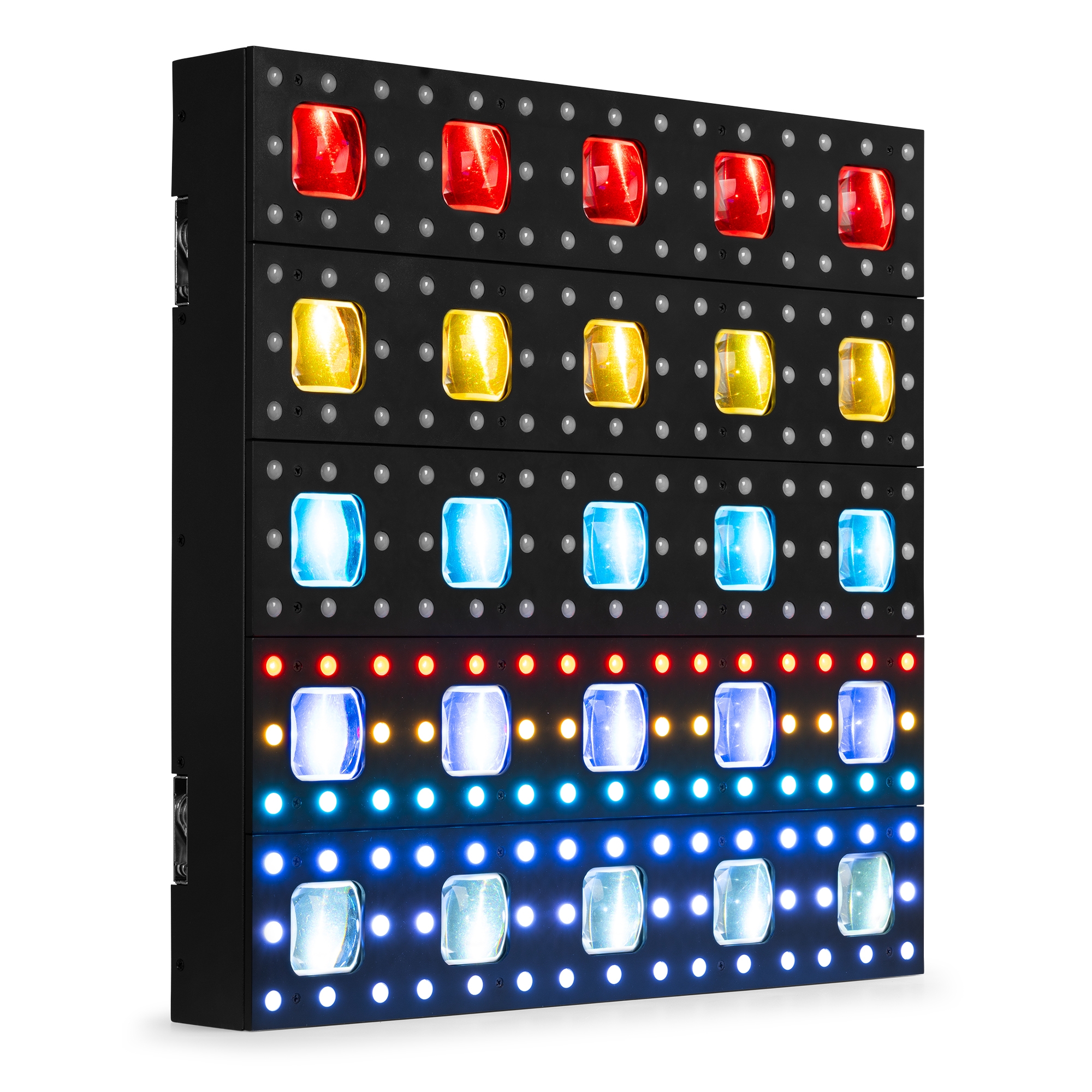

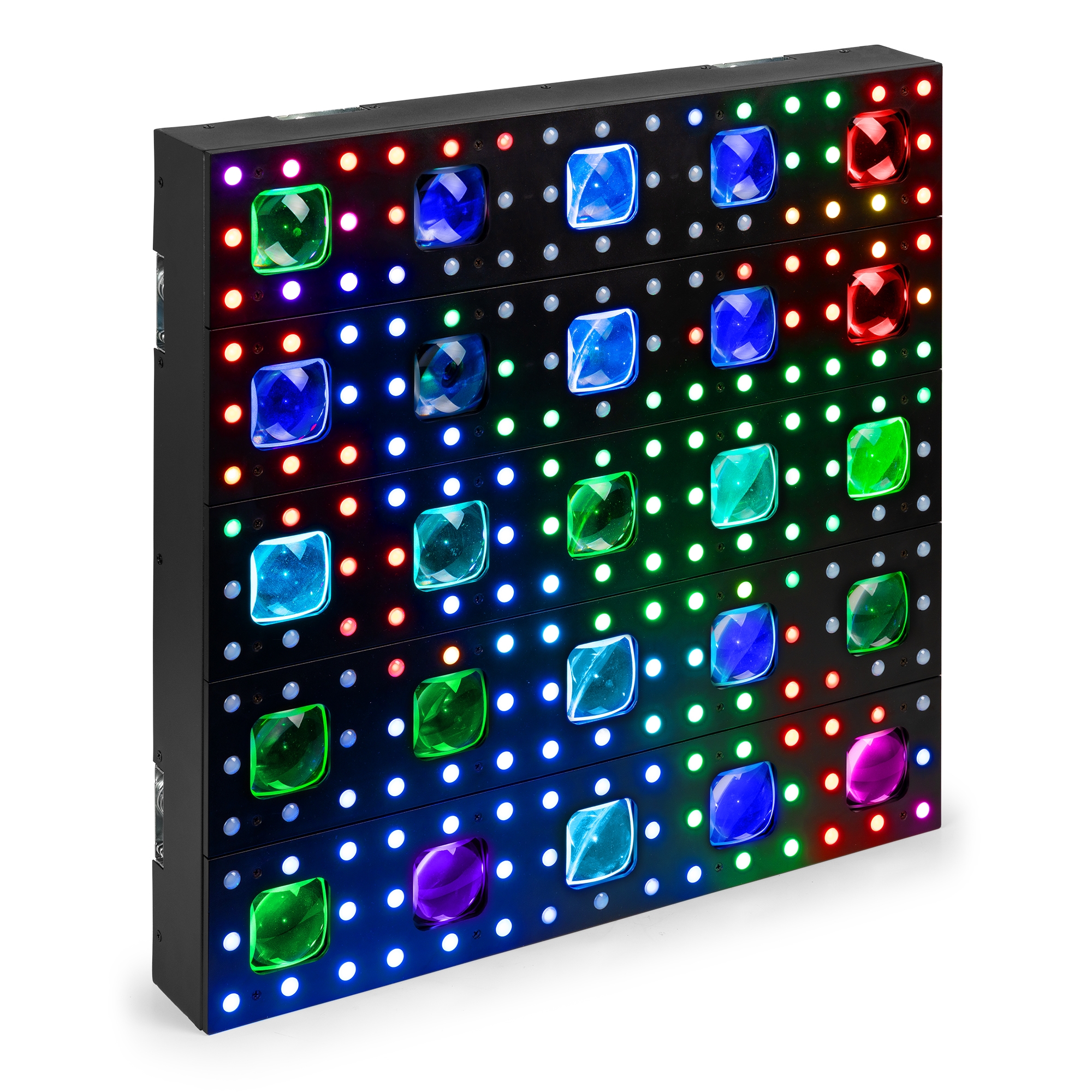

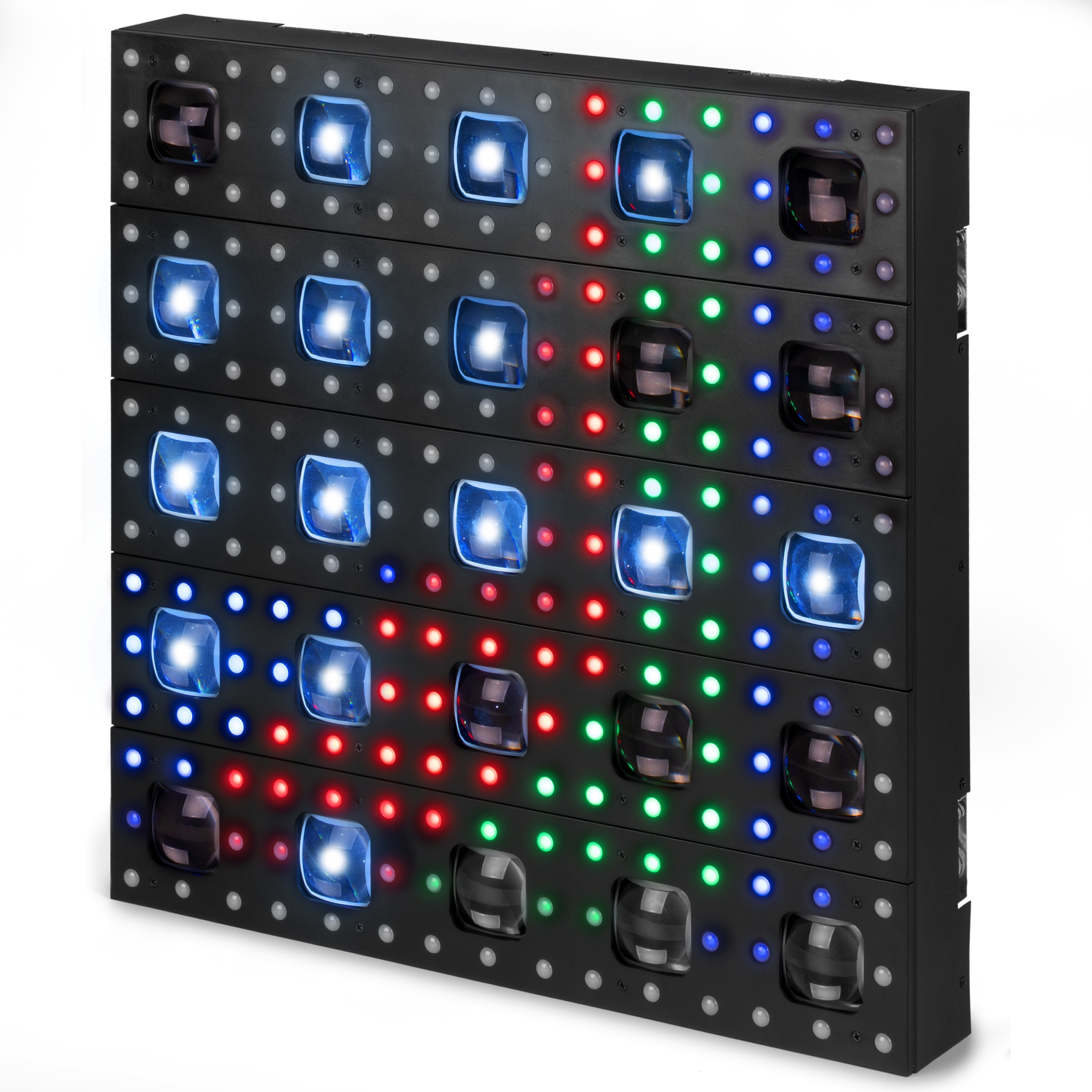

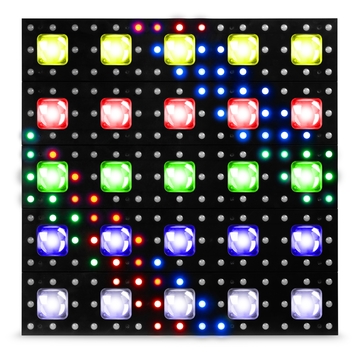

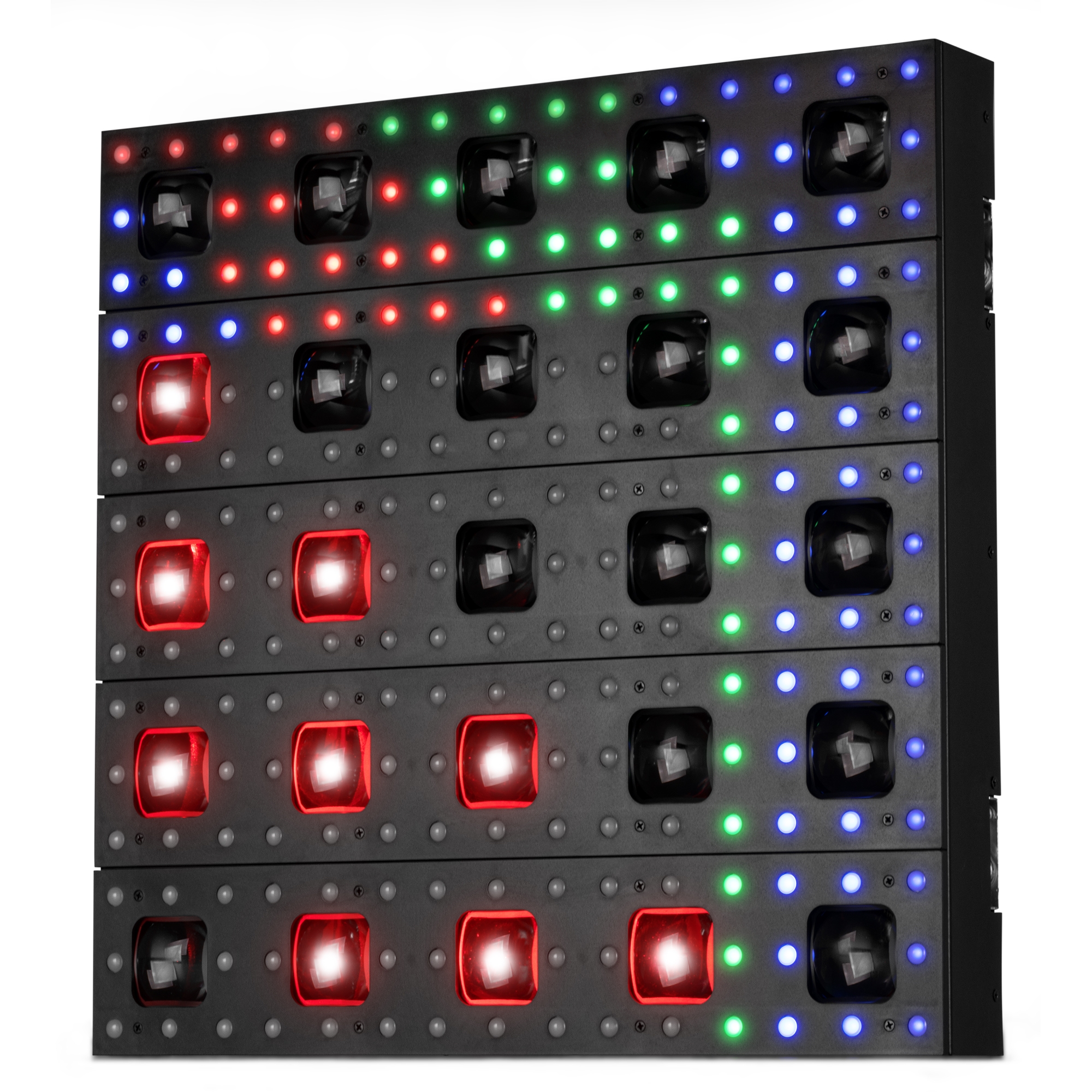

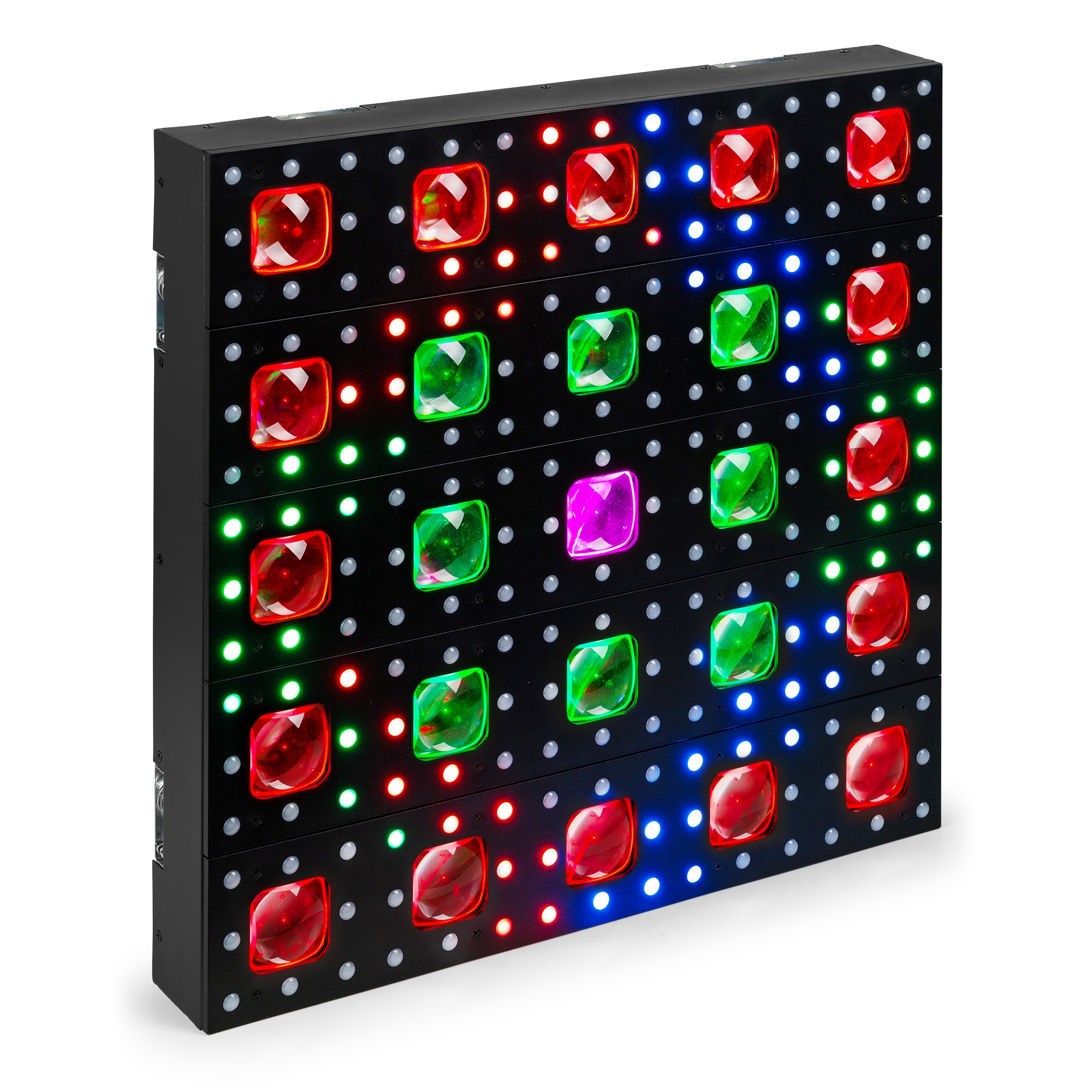

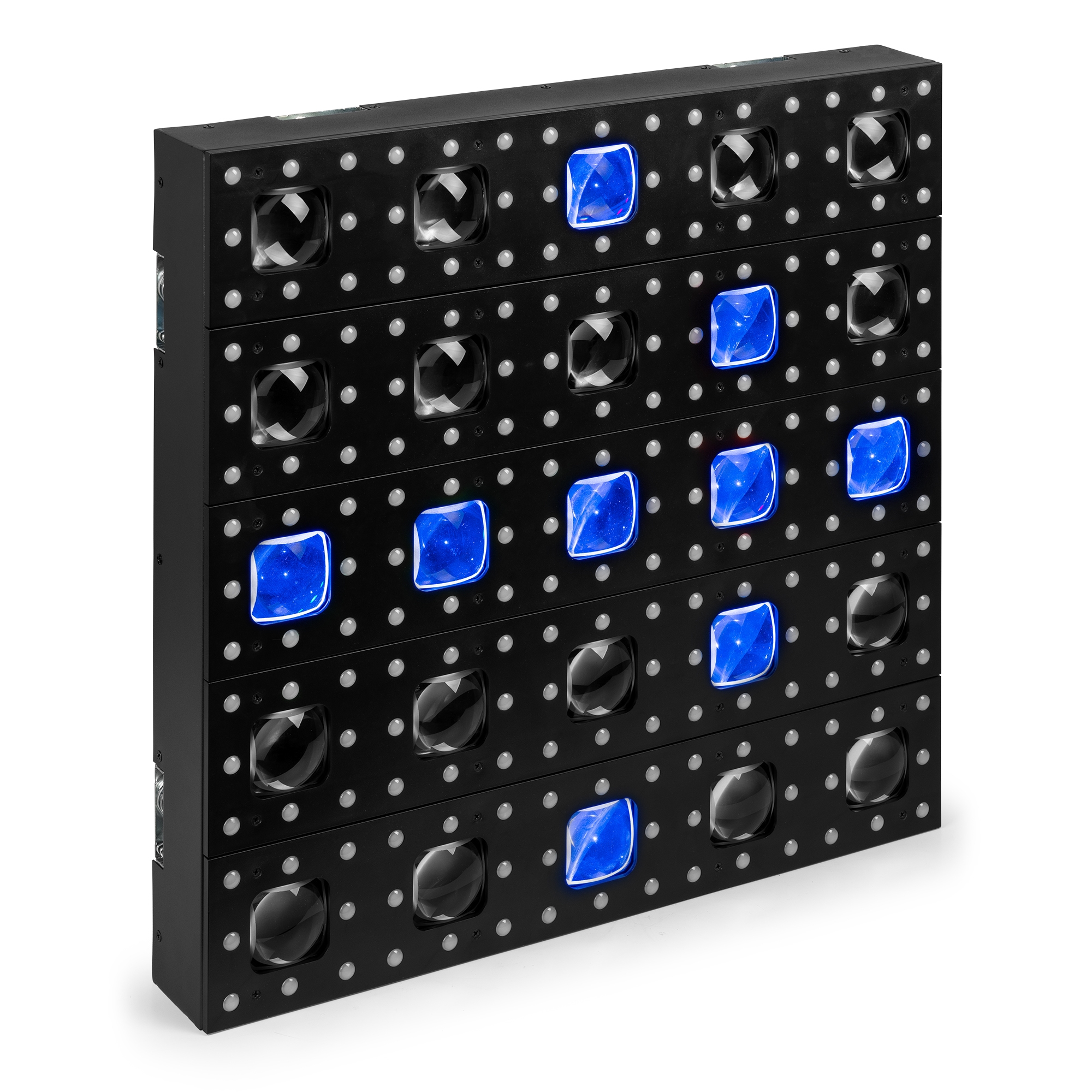

The LCBP450 is an impressive hybrid LED panel featuring 25 powerful 10W RGBW LEDs behind precision lenses and 200x RGB SMD LEDs for a stunning backlight effect. With customizable patterns and dynamic chase effects, this fixture creates a visual spectacle for any event. In stand-alone mode, you can choose from pre-programmed shows that run automatically or react to sound. Additionally, the RGB mode allows you to create your own colour combinations for background lighting. The built-in power connector output makes it easy to link multiple units together in series, simplifying setup and optimizing cable management.
- Multifunctional Hybrid LED Panel
- 25x RGBW LEDs with lenses
- 200x RGB SMD LEDs
- RGB + WW colour mixing
- DMX512, stand alone and Master/slave Mode
- Also controllable with Madrix software through the RJ45 connection
- 30 Automatic programs with adjustable speed
- 30 Sound programs with adjustable speed
- Adjustable speed
- Fan cooled metal housing
- Various dimmer curves adjustable

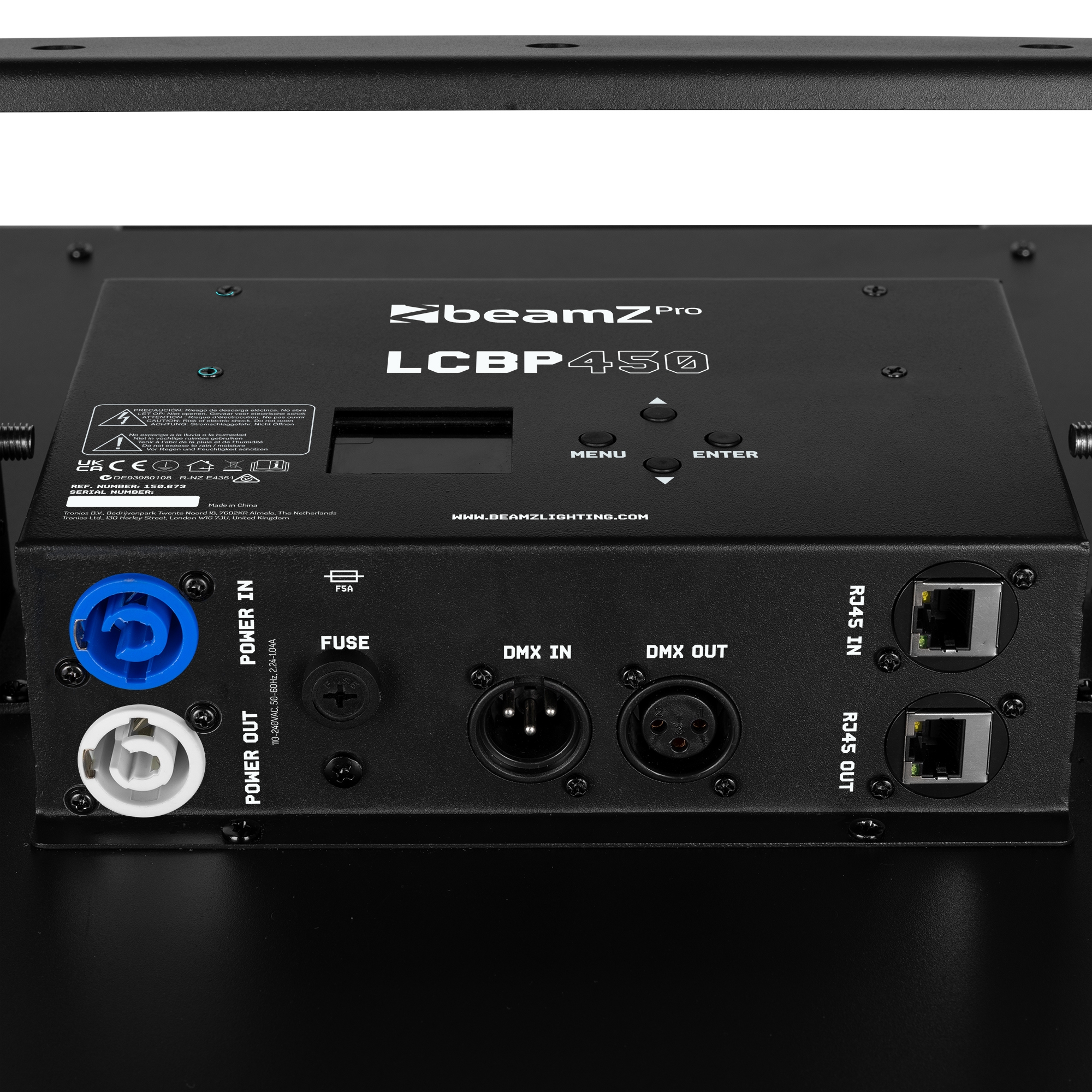

- P-Con Powerconnector in/output

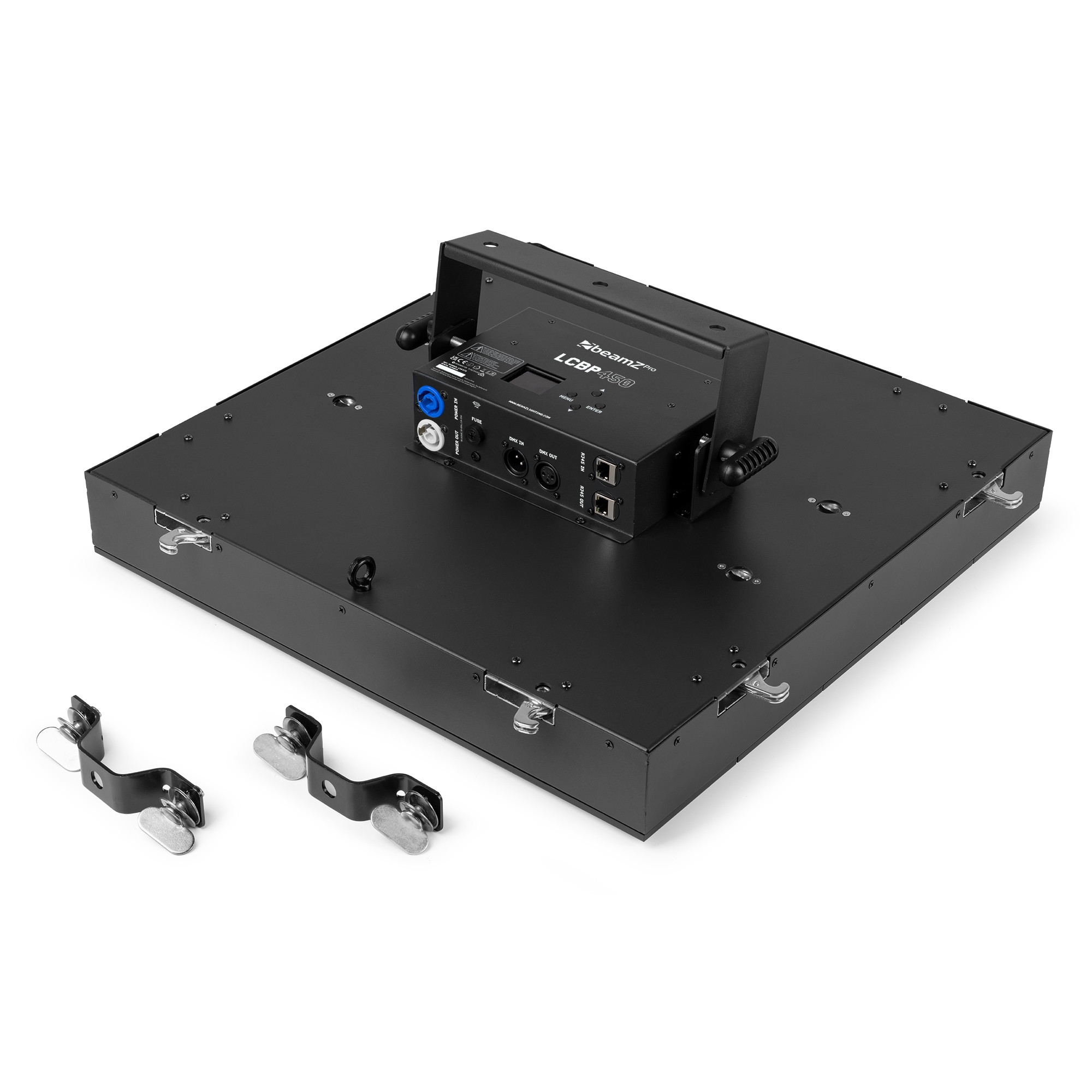

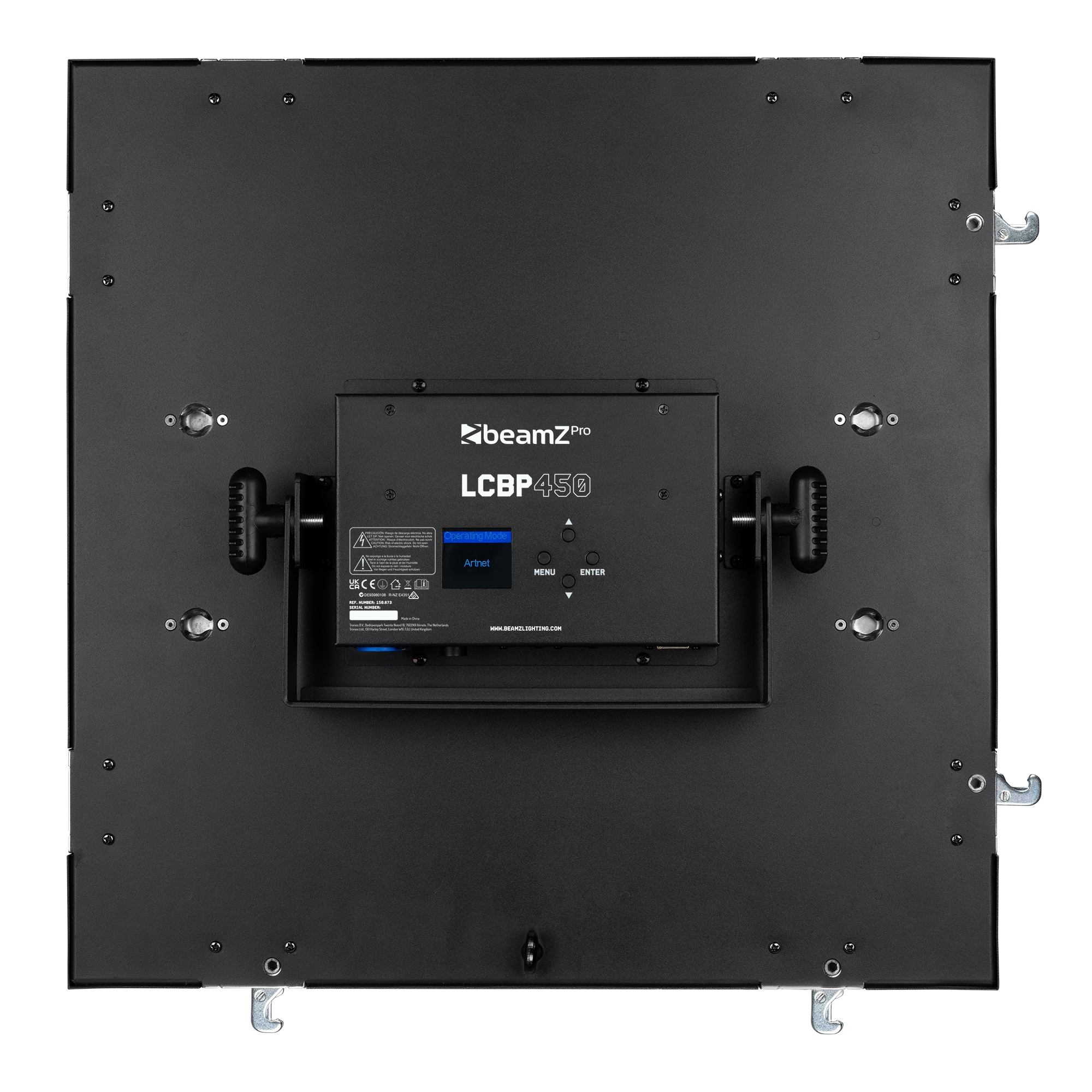

- Easy locking system to connect multiple devices
| Product colour | Black |
|---|---|
| Light source | 3-in-1 LED, 4-in-1 LED |
| Colours | Red, Green, Blue, White |
| LED power (single LED) | 10W |
| Quantity of LEDs | 25 |
| Quantity of backlight LEDs | 200 |
| Flash rate per second | 1 - 20Hz |
| DMX channels | 27, 175 |
| DMX connection | 3-pin XLR |
| Modes | Automatic programs, DMX, Master/Slave |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Display | LCD |
| Power plug | P-Con |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 200 x 500 x 500mm |
| Weight (kg) | 8,80 |

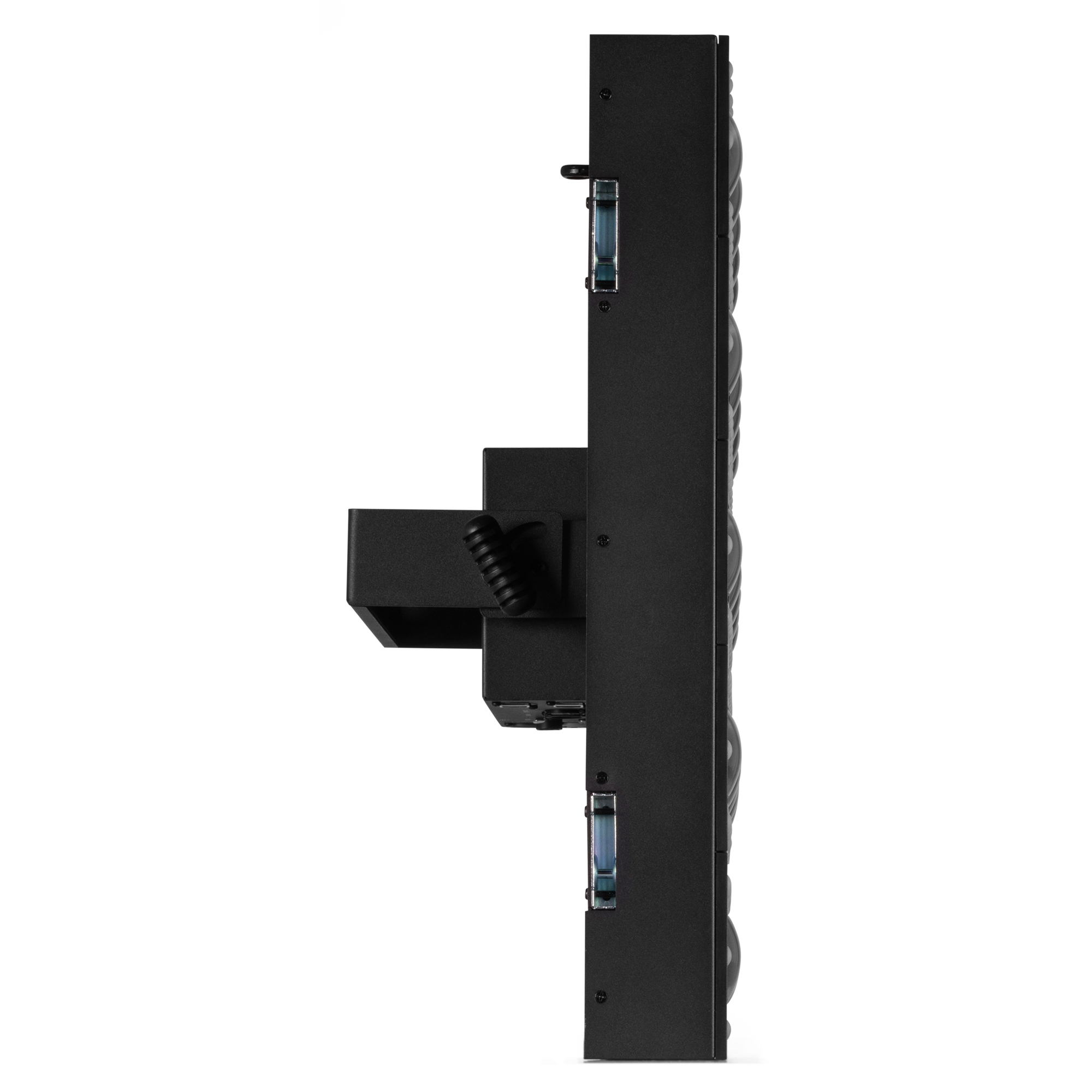

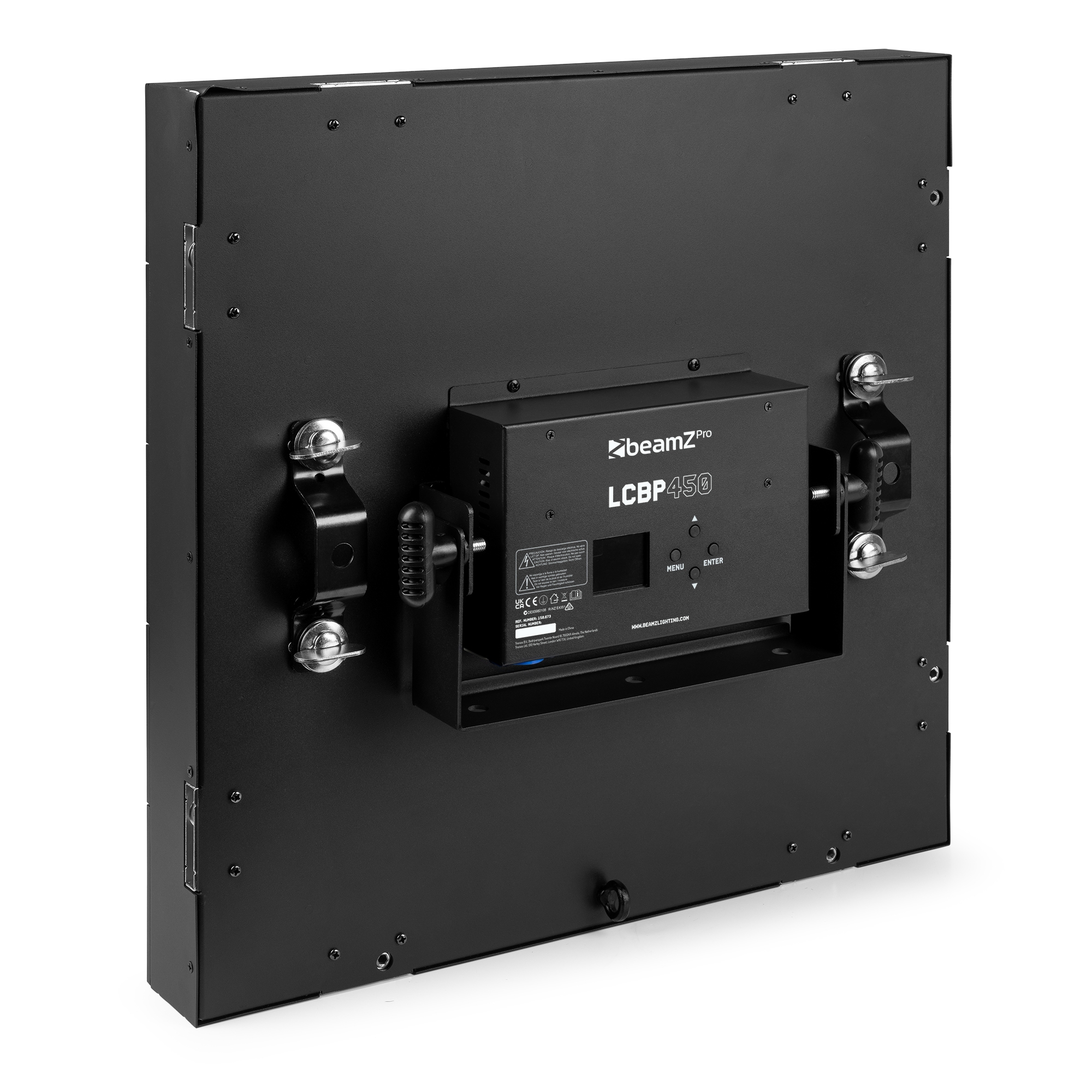

| Included accessories | Mounting bracket, Power cable |
