Ultra Compact Mixer-Amplifiers 100V

UM Series Ultra Compact Mixer-Amplifiers 100V

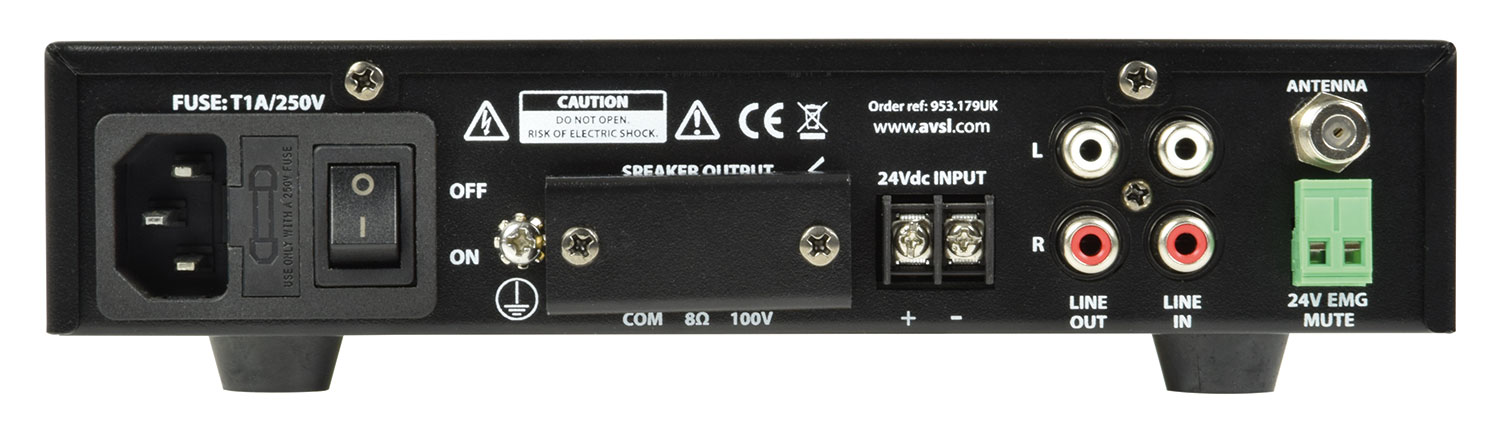

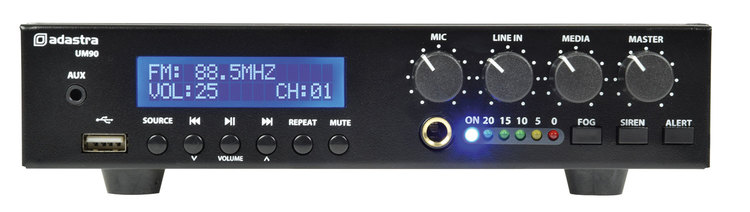

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

Ultra compact form factor

Efficient class D amplifier design

Internal USB/FM/BT audio player

100V line or 8 Ohms operation

Bluetooth with programmable ID

Weight   3.02kg

Dimensions   300 x 210 x 44mm

Alarm output   Fog, siren & alert generator

Output power : rms   90W (80W @ 24Vdc power)

Power supply   170-264Vac, 50Hz (IEC) or 24Vdc

Amplifier : construction   Class D + transformer output

Audio source   Internal USB/FM/BT player

Bluetooth version   5.0

Inputs   1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)

Line output  2 x RCA (mono)

Speaker outputs   Screw terminals - 100V / 8 Ohms / Com

DC power   24Vdc screw terminals

Mute   24V relay contacts

THD   <0.4% @ 1kHz

Input impedance   1k Ohms (mic/line)

Input sensitivity   -10dB (line), -45dB (mic)

SNR   80dB (line), 75dB (mic)

Frequency response   100Hz - 18kHz
