100V Mixer-Amplifier with WiFi
RM-series 240W
Product Code: 953.235

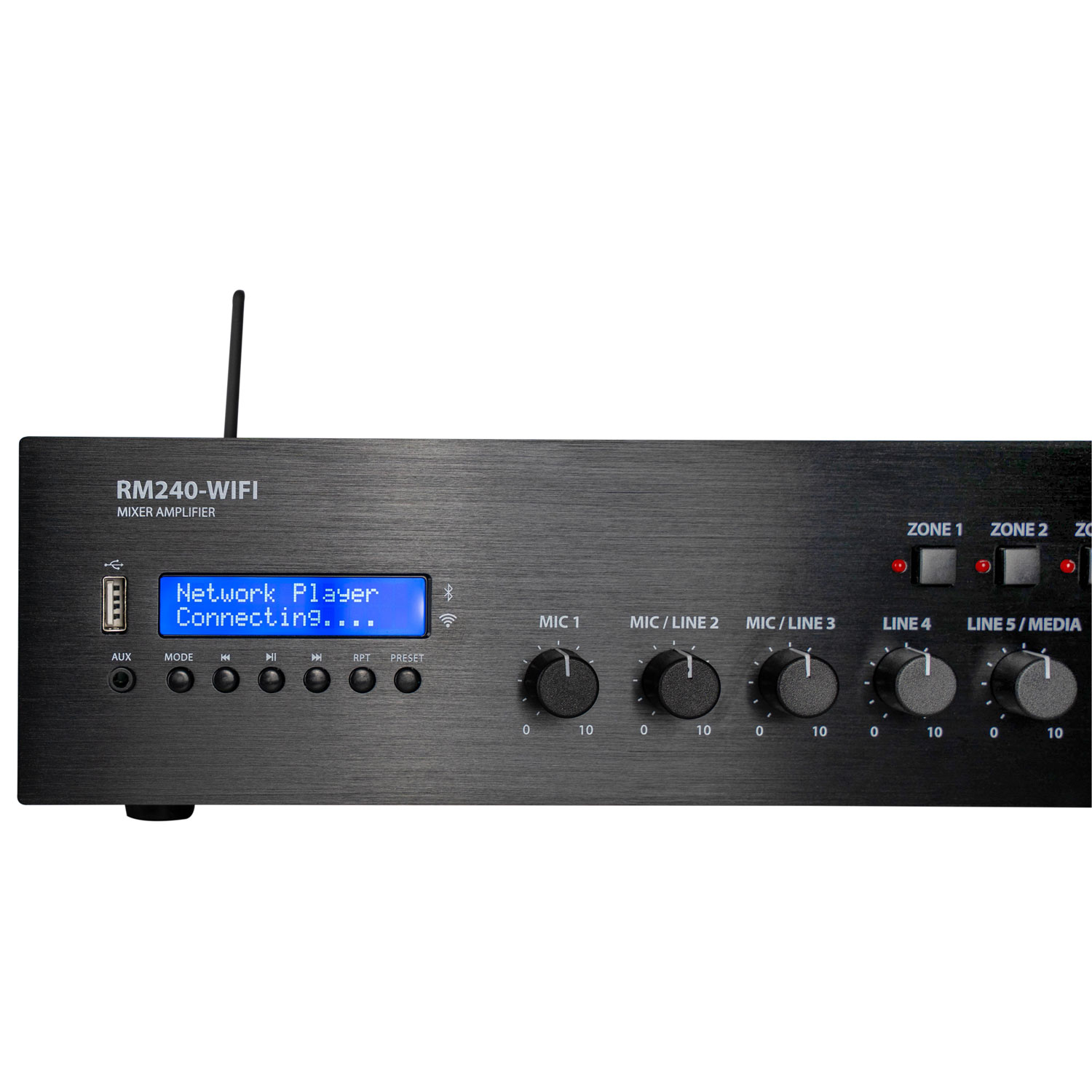

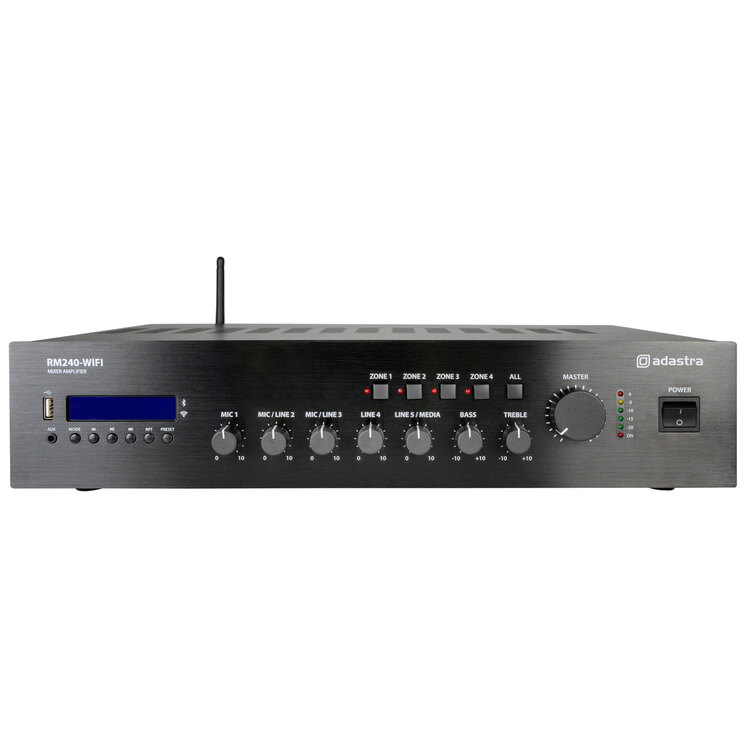

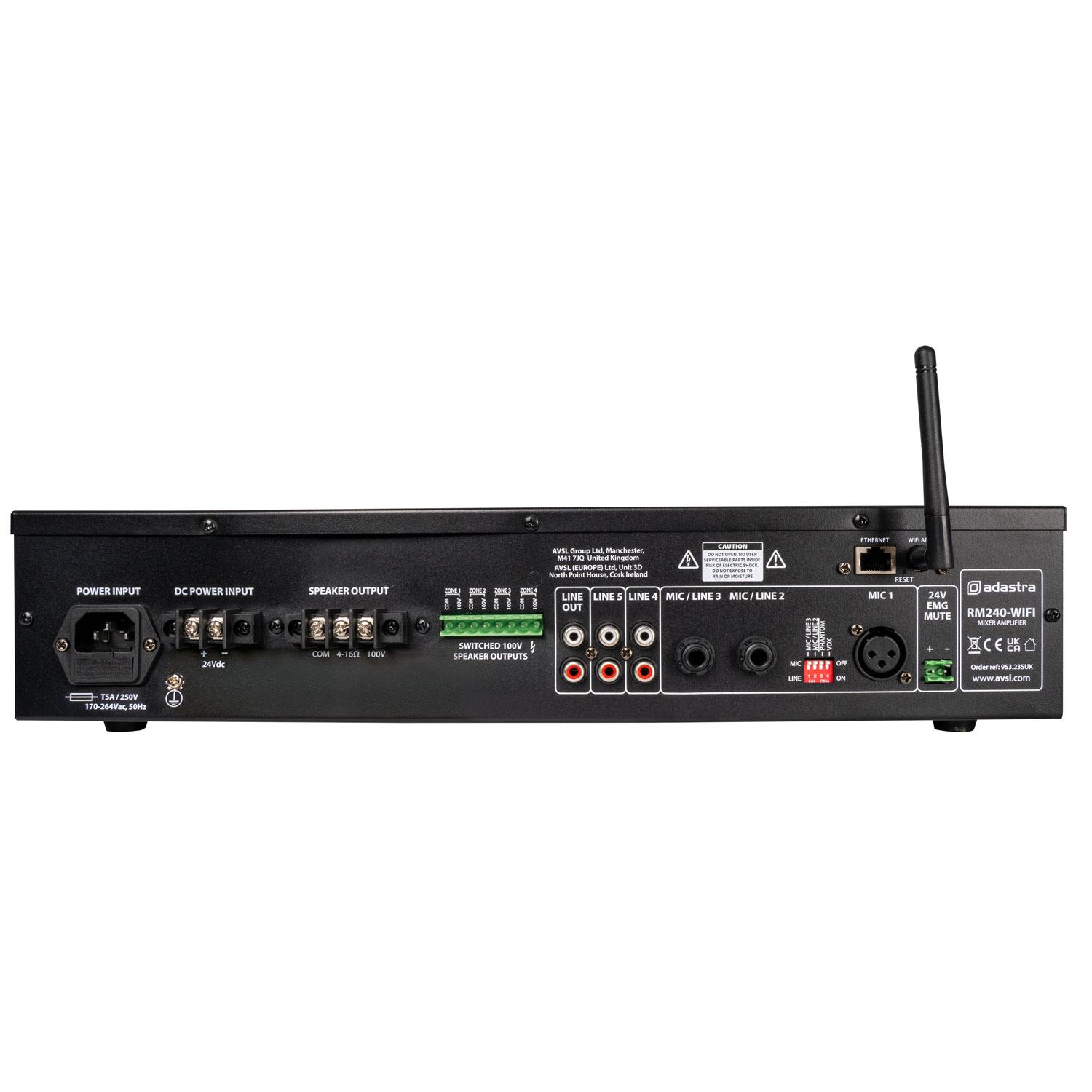

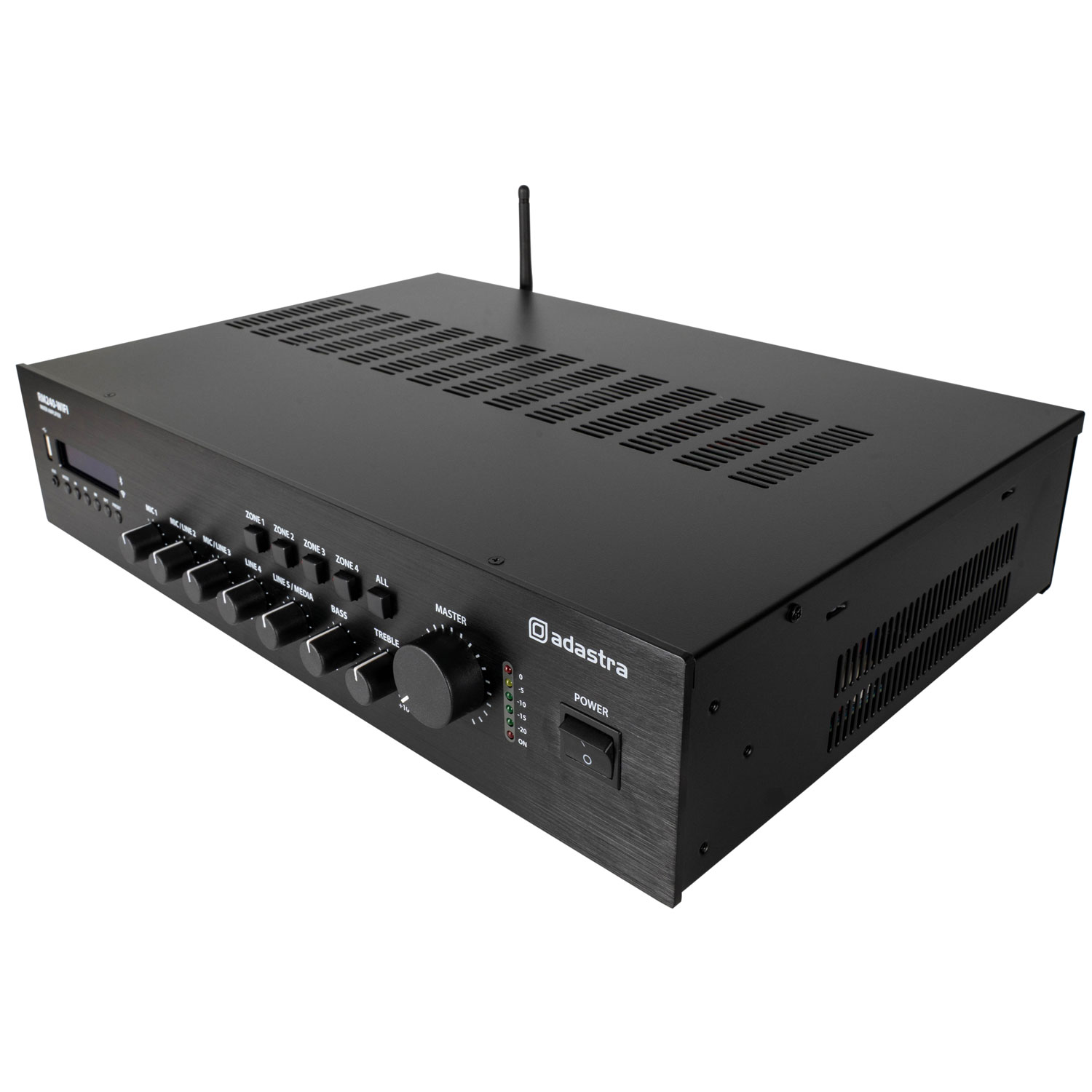

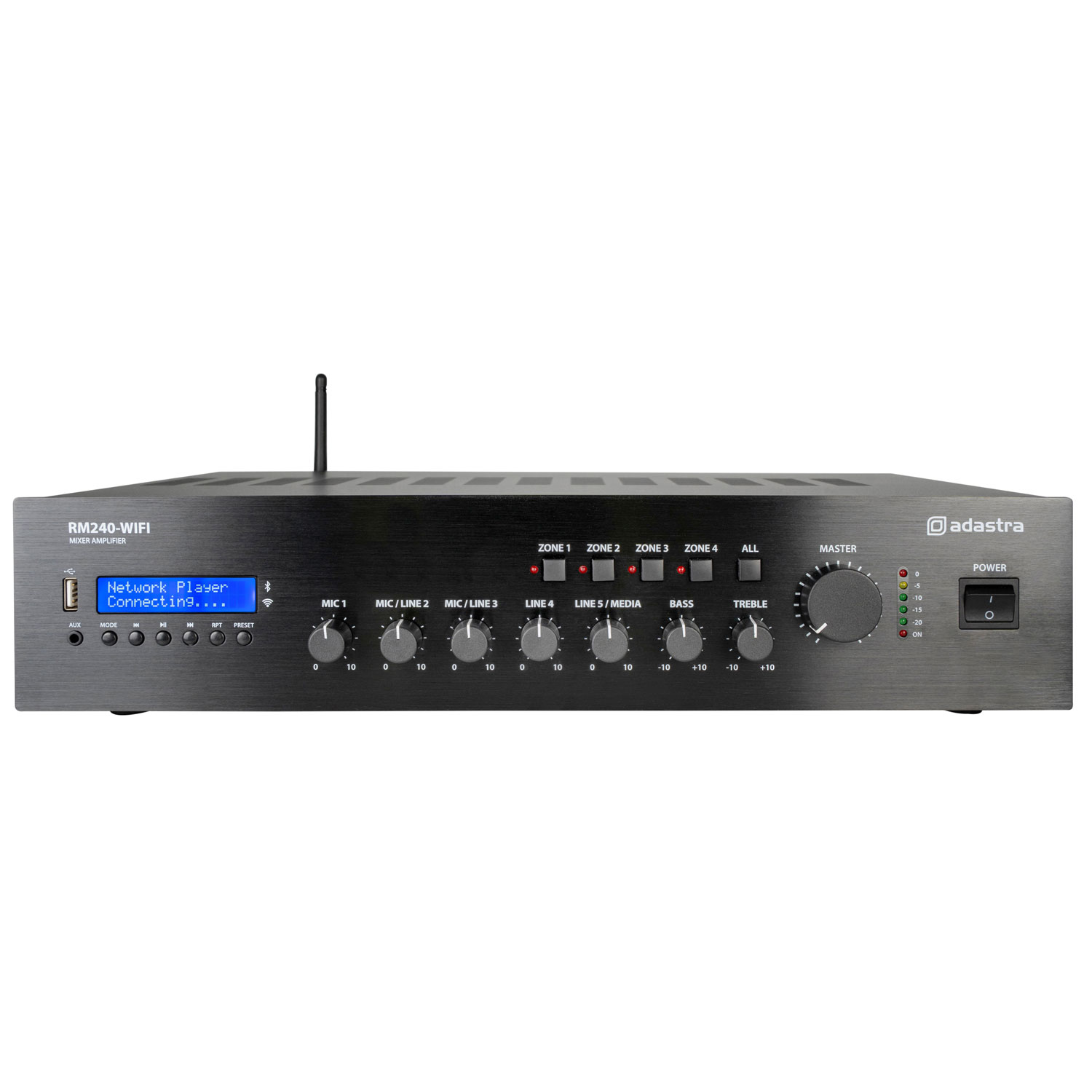

5-channel 19" rack-mountable mixer-amplifier, designed for commercial sound installations to power 100V line speakers or standard low impedance speakers. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. A built-in audio player section can play mp3 files from a USB or stream audio wirelessly from Bluetooth®. A main feature of the RM-WIFI models is the ability to connect to a wired or wireless network for streaming audio from internet radio, playback services or even from a local NAS drive. Setup and control for this function is entirely via the WiiM Home smart phone app with a choice of streaming services embedded. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.
- Internet radio or audio streaming from WiFi or LAN connection
- Free WiiM Home Player app for Android or iOS
- USB player and Bluetooth receiver
- 4 switchable 100V outputs and 1 unswitched output
- Optional 4-16 Ohm output
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
- Weight7.37kg
- FuseT5A
- Output power : rms240W
- Power supply 170-264Vac, 50Hz (IEC)
- DC power24Vdc (screw terminals)
- InputsMic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced)-53dBV
- Input impedance : mic 15k Ohms
- Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-51k Ohms
- Line output RCA
- Speaker outputs4 switched + 1 non-switched 100V / 4-16 Ohms / COM
- Bluetooth version 5.0
- Network connection RJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
- Remote control via WiiM Home app for iOS or Android
- Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser : bass100Hz ±10dB
- Equaliser : treble10kHz ±10dB
- Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
- Phantom power +20V (mic 1 XLR, switchable)
- Audio source Network audio, USB player, Bluetooth receiver
- Emergency control 24V contacts - mute all except Mic.1 when triggered
- THD<1.0%
- Dimensions 433 x 320 x 88mm
