DRV8833 Dual H-bridge Motor Driver

Product Code: MOT0425

$5.50

Pay it in 4 payments of $1.38 with Afterpay

Store Stock:
Henderson In Stock
Albany Out of Stock

The DRV8833 is a dual H-bridge motor driver, ideal for low-voltage (2.7V to 10.8V) robotics and DIY projects, capable of driving two DC motors or one stepper motor with up to 1.5A per channel (2A peak). It acts as a compact, efficient alternative to the TB6612FNG (MOT0420) and L298N drivers, featuring built-in current limiting and over-current/thermal protection.



Key Features and Specifications:

Channels: Dual H-bridge (control 2 DC motors independently or 1 stepper).

Voltage Range: 2.7V to 10.8V motor power.

Current Rating: 1.5A continuous per channel (up to 2A peak).

Protection: Built-in over-current, short circuit, under-voltage lockout, and thermal protection.

Controls: PWM-compatible inputs for speed and direction.

Sleep Mode: Low-power sleep mode included.

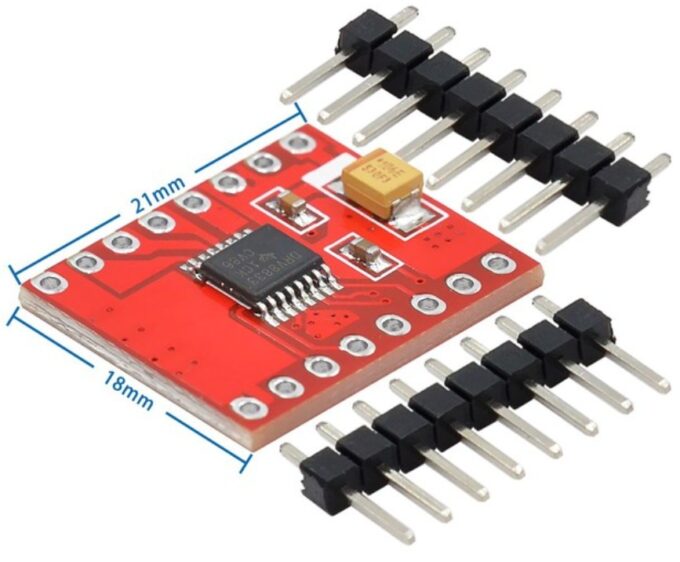

Size: 18mm x 21mm.

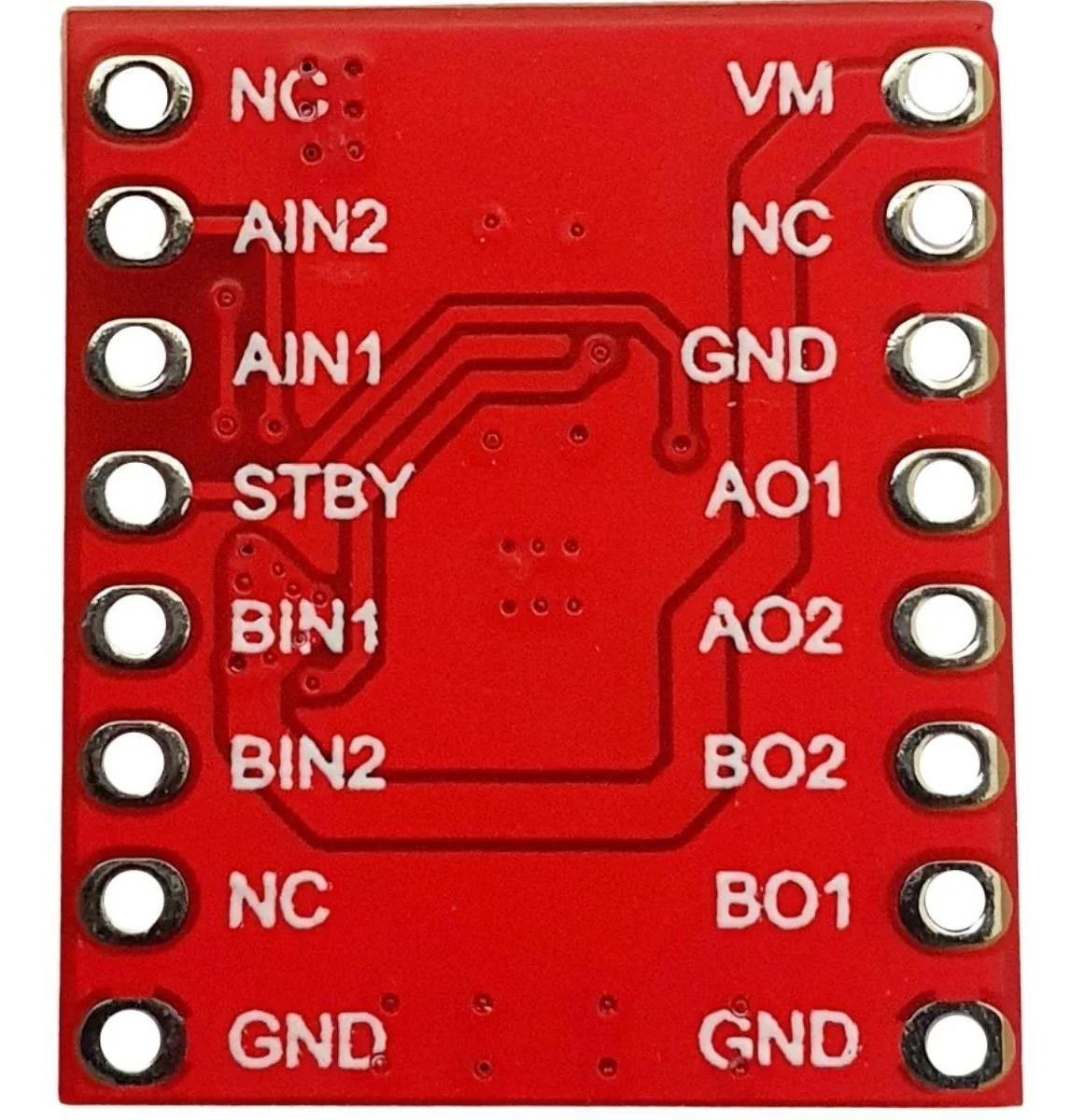

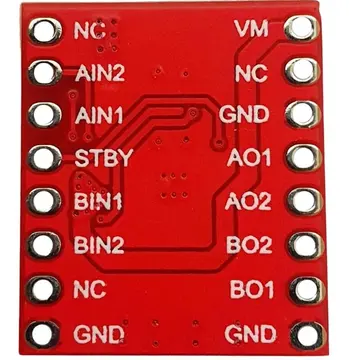

Pinout Breakdown:

VM: Motor Voltage (2.7V - 10.8V).

GND: Ground.

AIN1/AIN2: Control inputs for Motor A (Speed/Dir).

BIN1/BIN2: Control inputs for Motor B (Speed/Dir).

AO1/AO2: Output for Motor A.

BO1/BO2: Output for Motor B.

STBY: Standby mode (High to enable, Low to sleep).
