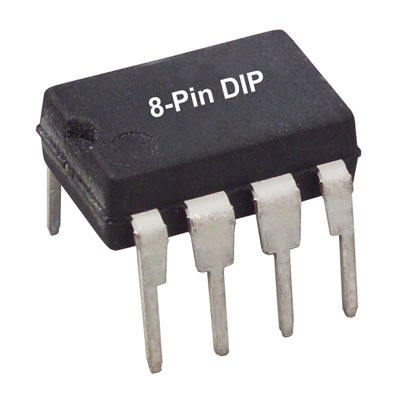

MC33039P
CLOSED LOOP BRUSHLESS MOTOR ADAPTOR
Product Code: CT1090
The MC33039 is a high performance closedloop speed control adaptor
specifically designed for use in brushless DC motor control systems.
Implementation will allow precise speed regulation without the need for a
magnetic or optical tachometer. This device contains three input buffers
each with hysteresis for noise immunity, three digital edge detectors, a
programmable monostable, and an internal shunt regulator. Also included is
an inverter output for use in systems that require conversion of sensor
phasing. Although this device is primarily intended for use with the MC33035
brushless motor controller, it can be used cost effectively in many other
closedloop speed control applications.
Digital Detection of Each Input Transition for Improved Low
Speed Motor Operation
TTL Compatible Inputs With Hysteresis
Operation Down to 5.5 V for Direct Powering from MC33035 Reference
Internal Shunt Regulator Allows Operation from a NonRegulated
Voltage Source
Inverter Output for Easy Conversion between 60/300 and 120/240
Sensor Phasing Conventions
