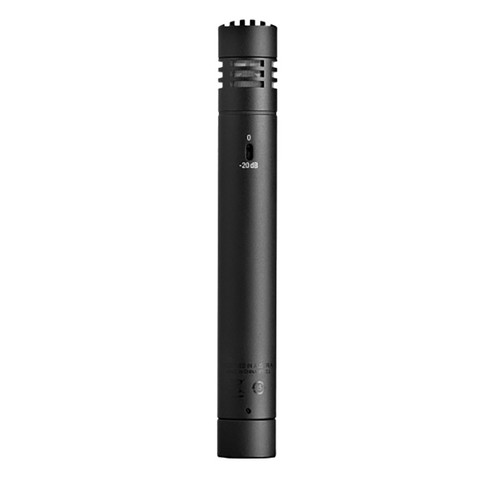

AKG P170 Instrument Condenser Recording Mic
For project studios, home recording & stage
Product Code: AKG-P170
AT THE POINT
For project studios, home recording & stage
The P170 is a small-diaphragm condenser microphone for recording of overheads, percussions, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response.
The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.
Rugged all-metal body and robust design withstands tough day-to-day use
Switchable attenuation pad for high SPL applications up to 155 dB SPL
TECHNICAL SPECIFICATION
General
Audio frequency bandwidth 20 to 20000 Hz
Equivalent Noise Level 19 dB-A
Sensitivity 15 mV/Pa
Signal to Noise 75 dB-A
Preattenuation Pad -20 dB
Electrical Impedance <= 200 Ohms
Recommended Load Impedance >=1000 Ohms
Polar Patterns
Cardioid
Powering Interface
Voltage 44 to 52 V
Current <= 3 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Dimensions / Weight
Height 160 mm
Diameter 22 mm
Net Weight 130 g
