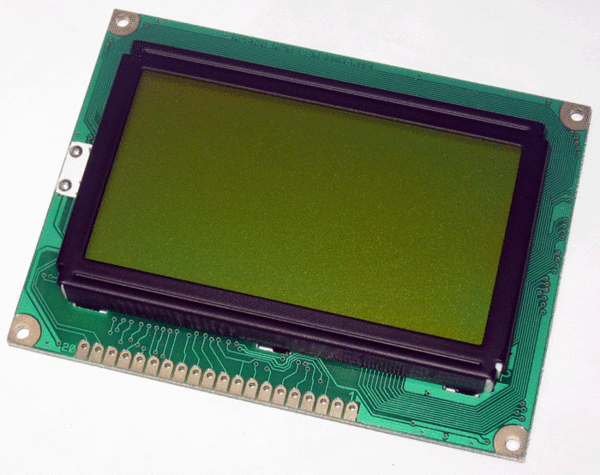

128 x 64 Full Dot Matrix Graphic LCD Module

Standard Pins

Product Code: LA0335

$14.50

Pay it in 4 payments of $3.62 with Afterpay

Store Stock:
Henderson In Stock
Albany In Stock
Jump to:
Manuals and Downloads

Note: These modules require an external LCD driver circuit. See this page for an example schematic.



AG1286401 Standard 128 x 64 Full Dot Matrix Graphic LCD Module. Uses the KS0108B driver chip, which can be used with Arduino.

Made by Agena



Key Specifications/Special Features



  • Viewing area: 70.7(W) x 38.8(H)mm



  • Module size: 93(W) x 70(H)mm



  • Dot size: 0.48(W) x 0.48(H)mm



  • Total thickness:



10.0mm (MAX) without LED



15.0mm (MAX) with LED



External contrast adjustment (Standard)

Pin No Symbol Level Description



1 Vss 0 V Ground



2 Vdd 5.0 V Power Supply for Logic Circuit



3 Vo - Operating Voltage for LCD Driving



4 D/I H/L Data Input/ Instruction Code Input



5 R/W H/L Data Read / Data Write



6 E H, H/L Enable Signal



7 DB0 H/L



8 DB1 H/L



9 DB2 H/L



10 DB3 H/L Data Bus Line



11 DB4 H/L



12 DB5 H/L



13 DB6 H/L



14 DB7 H/L



15 CS1 H Chip Selection for IC1(First KS0108)



16 CS2 H Chip Selection for IC2(Second KS0108)



17 RES L Reset



18 Vout - Power Supply for LCD Driving
