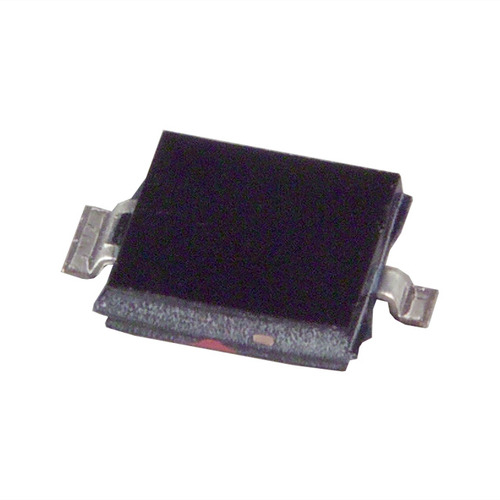

Photodiode BPW34FAS

 Silicon PIN Photodiode

Description The BPW34FAS E9087 is a high speed and high sensitive PIN
photodiode in a miniature flat plastic package. Its top view construction makes it ideal as  a low cost replacement of TO5 devices in manyapplications.Due to its waterclear epoxy the device is sensitive to
visible and infrared radiation. The large active area
combined with a flat case gives a high sensitivity at a
wide viewing angle. Features
_ Large radiant sensitive area (A=7.5 mm2)
_ Wide angle of half sensitivity j = 65_
_ High photo sensitivity
_ Fast response times
_ Small junction capacitance
_ Suitable for visible and near infrared radiation



Applications

High speed photo detector



Absolute Maximum Ratings

Parameter Test Conditions Symbol
Value Unit



Reverse Voltage VR 60 V

Power Dissipation Tamb _ 25 _C PV 215mW

Junction Temperature Tj 100 _C
StorageTemperatureRange Tstg 55...+100 _C
Soldering Temperature t _ 3 s Tsd 260 _C
Thermal Resistance Junction/Ambient
RthJA 350 K/W
