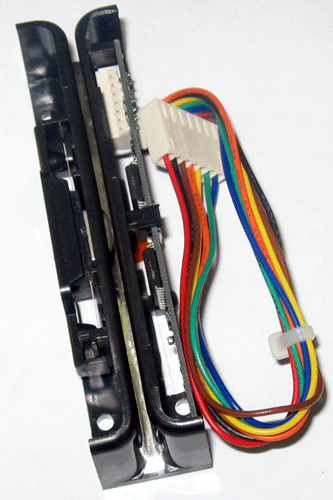

Card Reader - Magnetic Swipe

JSR-1250

Dual wipe
Manual Swipe Type Magnetic Stripe Card Reader

Features
Wide speed range [ custom low power BICMOS LSI ]
Wide operating voltage [ 3.0V ~ 5.5V ]
Wide operating temperature range [ -20~ 50 ]
User selectable out polarity [ RDD, RCP, CPD ]

Card Standard : ISO 7811 / 2
Power Supply : wide operating voltage [ 3.0V~5.5V ]
Power Consumption : Less 4mA [Dual ]
Reading Track Width : 1.5 mm
Operation locus :Indoors only
Card Feeding Speed : 10~150 cm/sec [ 4~60 inch/sec ]
Interface Type : TTL Interface
Life Time : 500,000 passes [ min ]
Weight : JSR-1250 40g [ non-cover type ]
Output voltage level : High level 3.5V min. [ loh=6mA ]
.................................................Low level 0.4V max. [ lol=6mA ]

Applications:
POS terminal.

Banking system.
ID verification.
Time and attendance terminals. etc.
