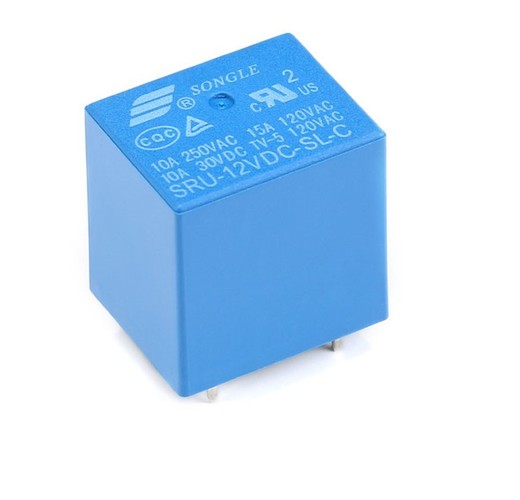

PCB Mount Relay 5V DC Coil, 10A 230v AC Contact SP/ST N/O N/C

5 Volt, 22 x 17.5 x 15mm

Product Code: RL0230

$3.00

Pay it in 4 payments of $0.75 with Afterpay

Buy 1+ $3.00 (incl. GST)
Buy 5+ $2.85 (incl. GST)
Buy 10+ $2.70 (incl. GST)
Buy 25+ $2.40 (incl. GST)
Store Stock:
Henderson In Stock
Albany Low Stock - call to confirm
Detail Parameter
Outline Dimensions 20.3x 16.8x 20.2 mm
Contact Arrangement
(China) 1H, 1D, 1Z
(International) 1A, 1B, 1C
Contact Rating 10A/220VAC TV-8
Contact Resistance or Voltage drop <=100 meg Ohm
Max. Switching Power 420W 1800VA
Max. Switching Voltage 100Vdc 380Vac
Max. Switching Current 15A
Mechanical Operation life 1 107
Electrical Operation life 1 105
Coil resistance 0.36, 0.45W
Coil Rated Voltage 5
Pickup voltage VDC(max) 75% rated voltage
Release voltageVDC(min) 10% rated voltage
Operate Time <=15ms
Release Time <=5ms
Coil Maximan VoltageVDC 130% rated voltage
Insulation Resistance 100 M(at 500V)
Dielectric Strength
(Between contacts) 50Hz, 750V
(Between contact and coil) 50Hz, 1500V
Shock Resistance 10G
Vibration resistance 10~55Hz 10G double amplitude 1.5mm
Ambient Temperature

-40 ~ 70

Relative Humidity 85% (at 40C)
Mass 13g
Cross Reference ORIGINAL SRU
