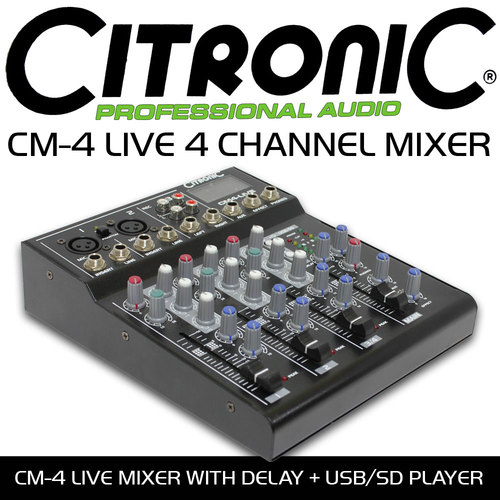

4Ch Live Compact Mixer + USB/SD Player with Delay
4 Channel - Sale Price !!
Product Code: 170.800
This product was discontinued on .
Jump to:
Discontinued
CM-LIVE COMPACT MIXERS WITH DELAY + USB/SD PLAYER
Compact format live mixing console with mic/line inputs (jack/XLR) and a stereo line channel which can be fed from an internal USB/SD audio player. Mic/line channels have individual inserts and all channels have 3-band EQ, Aux and Effect controls. Phantom power of +48V is switchable to the XLR inputs for condenser microphones. Applications range from sub-mixing to main live PA console.
| Model | CM4 LIVE, 4-channel |
|---|---|
| Mic/Line inputs | 2 x balanced XLR/jack |
| Dimensions | 60 x 190 x 230mm |
| Weight |
2.09kg
|
- Compact, accessible design
- Channel inserts for Mic/line inputs
- Switchable +48V phantom power
- 3-band EQ for each channel
- Internal delay effect (or FX loop)
- Integral USB/SD player
- Rack-mount ears supplied with CM8 and CM10 models
| Power supply | 12Vac 1000mA (included) |
|---|---|
| Phantom power | Switchable +48V (XLR inputs) |
| Frequency response: Inputs | 20Hz - 20kHz |
| Stereo input | 6.3mm jack/RCA (-8 to +15dB / +13 to +60 parallel) |
| SNR: Mic inputs | 120dB E.I.N. |
| SNR: Line inputs | 95dB E.I.N. |
| SNR: Stereo input | 96dB E.I.N. (or 104dB E.I.N. in parallel) |
| EQ: High | 10kHz, ±15dB |
|---|---|
| EQ: Mid | 700Hz, ±15dB |
| EQ: Low | 50Hz, ±15dB |
| Outputs: Main (L+R) | 6.3mm jack (+28dBu balanced / +22dBu unbalanced) |
| Aux send, Effects send, Tape out | unbalanced 6.3mm jack (+22dBu) |
| Phones output | +15dBu stereo 6.3mm jack |
