Accelerometer Gyroscope GY521 module MPU6050
MPU-6050 module
Product Code: MOD0100

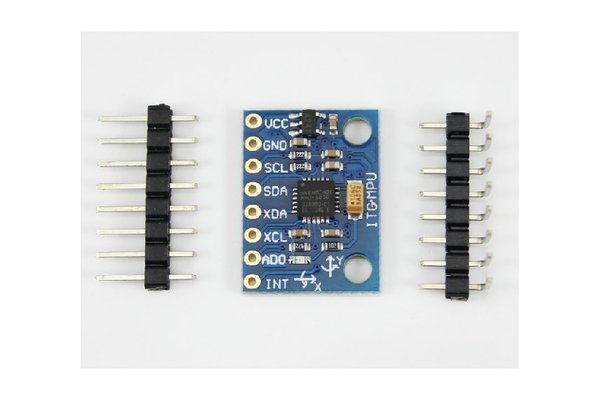

Triple Axis Accelerometer and Gyroscope - MPU-6050 - GY-521 module
• I2C Digital-output of 6 or 9-axis data
• Input Voltage: 2.3 - 3.4V
• Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
• Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
• Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
• Embedded algorithms for run-time bias and compass calibration. No user intervention required
• Digital-output temperature sensor
• After sales support
The MPU-6050 is a serious little piece of motion processing tech! By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.
Includes the auxiliary master I2C bus which allows the MPU-6050 to access external magnetometers and other sensors.
