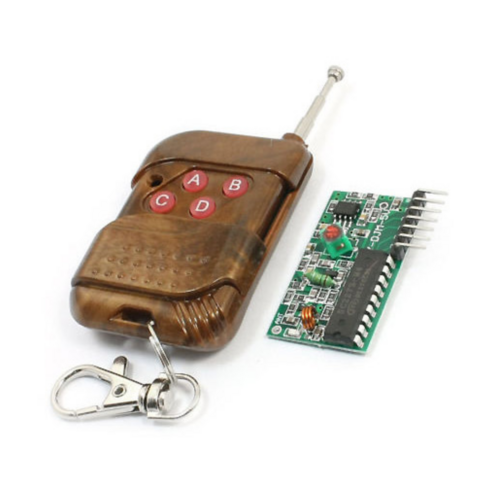

Wireless Remote Control Switch Transmitter and Receiver Module
ASK Decoding 5V DC 4 Button
Product Code: MOD0200
4 Channel RF Remote Transmitter and Receiver allows to remotely control four appliances. RF Remote Control provides 4 momentary outputs that can be wired to relays and control home appliances, lights, motors, light dimmers, robotic devices, RC cars, computer, etc. RF transmitter provides up to 150m range. Selection of custom address codes (by soldering pins) allows to operate more than one remote control system in the same area or to control one receiver with multiple transmitters. If required momentary outputs can be converted to toggle with low cost digital 4013 IC. 12V (27A) alkaline battery is included.
Features:
4 Momentary Outputs
150m Transmission Range
Small Size
Rock-solid oscillator provides reliable operation
Valid transmission LED status through VT connection
High noise immunity
Terminal pins provide simple connection to power supply and four devices
Selection of custom address codes (by soldering pins) allows to operate more than one unit in the same area
RF Transmitter Specifications:
Voltage Supply: 12V (Included 27A Alkaline Battery)
Transmission Frequency: 433MHz
Transmission Range: 150m
Dimensions: 62 mm x 38 mm x 14 mm
RF Receiver Specifications:
Voltage Supply: 5V
Transmission Frequency: 315MHz
Output Mode: Momentary
Power Consumption: 5 mA
Receiving Sensitivity: -101 dbm
Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
Dimensions: 41 mm x 22 mm x 6 mm
