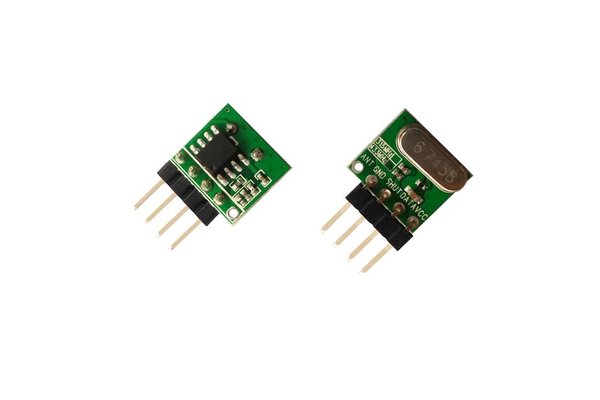

Dorji ASK 433 MHz ASK Receiver DRA887RX
For Arduino and Picaxe
Product Code: PICASKR
This product was discontinued on August 19, 2020.
Jump to:
Discontinued
DRA887RX
HIGH SENSITIVE ASK RECEIVER MODULE
V1.01
DESCRIPTION
DRA887RX is a type of high sensitive ASK
receiver module which is based on RFIC. It
features high stability and strong anti-interference
ability. It can be used together with ASK
transmitter modules in wireless door opener, robot
control, security alarm and related applications.
Range: 433.92MHz
Sensitivity:-108dbm @1k bps
Rx current: 5mA
Temperature: -20~+70C
Supply voltage: 3.6~5.5V
Stan swan has produced a very good overview of the previous simalar version here
http://www.picaxe.orconhosting.net.nz/DORJI_433ASK.pdf
Manuals and Downloads
