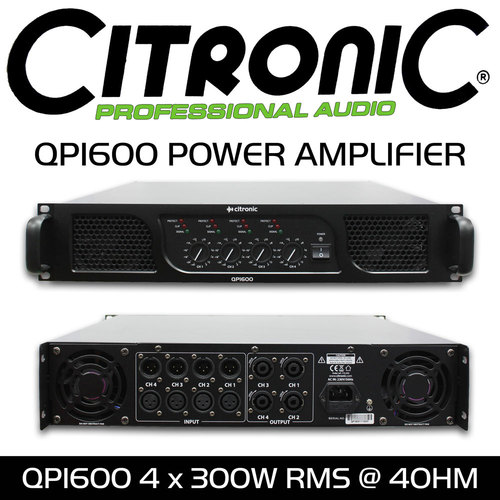

QP1600 Quad Power Amplifier - 4 x 300 Watts RMS
Product Code: 172.241
$899.00
Pay it in 4 payments of $224.75 with
Jump to:
QP Series Quad Power Amplifiers
A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
- Fully balanced signal path
- Stable down to 2 Ohms
- 2U rack-mountable
- Power supply230Vac, 50Hz (IEC)
- Input : line4 x XLRF balanced
- Output : line4 x XLRM (parallel from inputs)
- Input impedance 20k Ohms
- Frequency response 5Hz - 50kHz
- THD 0.05%
- Slew rate 40V/usec
- S/N ratio 103dB
- Controls 4 x channel gain
- Speaker outputs 4 x SPK connectors
- Circuit protection Short-circuit, DC, overload, soft-start
- Dimensions 483 x 439 x 88mm
| 172.241 | 172.243 | |
|---|---|---|
| Fuse rating | F8A | F12A |
| Power rms @ 8 Ohms | 4 x 200W | 4 x 300W |
| Power rms @ 4 Ohms | 4 x 300W | 4 x 450W |
| Power rms @ 2 Ohms | 4 x 400W | 4 x 580W |
| Weight | 22kg | 23.5kg |
