UT118B Multimeter Pen Type Twin Probe Full Range - 3000 Count
While stocks last, final clearance RRP $69.99
Product Code: TT0118
$49.50
Pay it in 4 payments of $12.38 with
Jump to:
Clearance

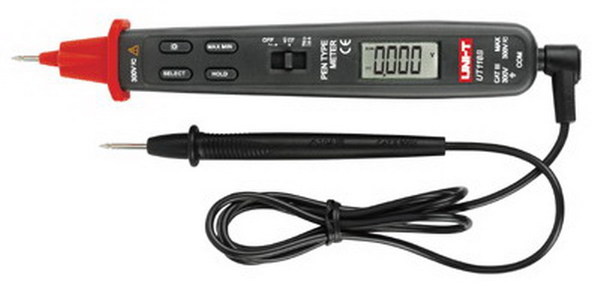

UNI-T UT118B Pen Type Digital Multimeter
Features :
New UNI-T UT118B Pen Type Meter Digital Multimeter, outstanding performance and quality.
The Model UT118B is a 3000 count pen type digits millimeters.
The Meter has full range overload protection.
- AC/DC voltage
- EF Function (UT118B only)
- Resistance
- Diode
- Continuity
- Capacitance
- Auto ranging
A very handy piece of equipment to have in your tool kit
| Specifications | Range | Best Accuracy | |
| Model | SCAN Mode | AUTO Mode | UT118B |
| DC Voltage (V) | 3V/30V/300V | 3V/30V/300V | ±(1%+3) |
| AC Voltage (V) | 3V/30V/300V | 3V/30V/300V | ±(1%+4) |
| Resistance (Ω) | 300Ω/3kΩ/30kΩ/300kΩ/3MΩ | 300Ω/3kΩ/30KΩ/300kΩ/3MΩ/30MΩ | ±(1%+3) |
| Capacitance (F) | 3nF/30nF/300nF/3μF/30μF/300μF | 3nF/30nF/300nF/3μF/30μF/300μF/3mF | ±(3%+5) |
| Features | |||
| Display Count | 3000 | ||
| Auto Range | √ | ||
| EF Function | √ | ||
| Diode | √ | ||
| Auto Power Off | Around 10 Minutes | √ | |
| Continuity Buzzer | √ | ||
| Low Battery Indication | √ | ||
| Data Hold | √ | ||
| MAX Mode | √ | ||
| MIN Mode | √ | ||
| LCD Backlight | √ | ||
| Penlight | √ | ||
| Input Impedance for DCV | ≥10MΩ | √ | |
| General Characteristic | |||
| Power | 3V Li-MnO2 Cion Cell Battery | ||
| LCD Size | 28mm×14mm | ||
| Product Color | Red and Grey | ||
| Product Net Weight | 90g | ||
| Product Size | 20mm×27mm×182mm | ||
| Standard Accessories | Battery, Test Lead | ||
| Standard Individual Packing | Blister, English Manual |
