Audio Technica AT-VM95SP/H Dual Moving Magnet Cartridge on Headshell
for 78 Speed Records
Product Code: N 906

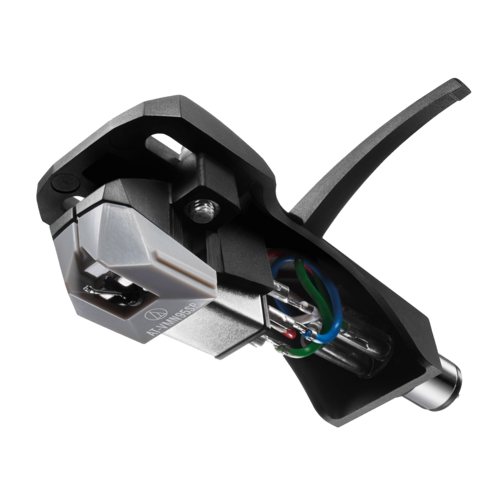

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.
This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 20,000 Hz |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 4.5 to 5.5g (standard 5.0g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 2.7 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | SP 3 mil Conical Bonded |
| Cantilever | Aluminium Pipe |
| Static Compliance | 12 x 10 – 6 cm / dyne |
| Dynamic Compliance | 2 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers |
| Model | AT-VM95SP |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95SP |
| Stylus Size | 3 mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
