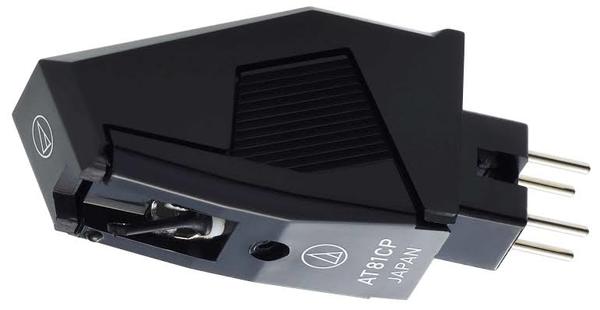

Audio Technica AT81CP P-Mount Dual Moving Magnet Cartridge
Conical stylus
Product Code: N 910
The AT81CP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer. Also suitable replacement for discontinued cartridges: AT3472P, AT3482P, EPC310MC, EPC-P24, SL10 and SL15.
Designed specifically for the linear format, the AT81CP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.
Specifications:
Type: Dual Magnet
Mounting: P-Mount
Frequency Response: 20 - 20,000Hz
Channel Separation: 18dB at 1kHz
Output Channe Balance: 2.5dB
Output Voltage: 3.5mV (mV at 1kHz, 5cm/sec)
Vertical Tracking Angle: 20o
Vertical Tracking Force Range: 1.0 -1.5g
Stylus Shape: Conical
Stylus Size: 0.6mil
Stylus Construction: Bonded Round Shank
Cantilever: Carbon Fibre Reinforced ABS
Coil Inductance: 400mH (1kHz)
Recommended Load Impedance: 47KΩ
Recomended Load Capitance: 100 - 200pF
Weight: 6.0g
Dimensions: H10.0 x W15.3 x D35.1mm
Replacement Stylus: ATN81CP
Catalogue Ref: AU-AT81CP
