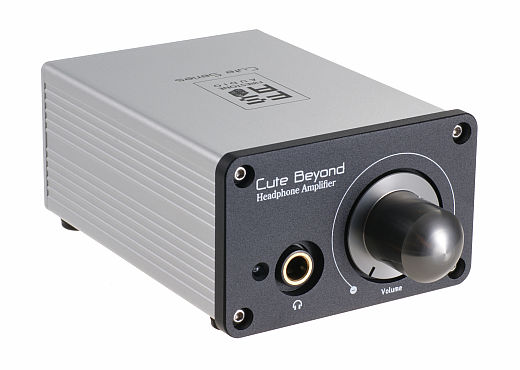

Firestone Audio Cute Beyond Headpone Amp

Pure Class-A Headphone Amplifier with low noise

Product Code: AE0640

This product was discontinued on .

"Cute Beyond"- Class A - Headphone Amplifier
This class A, Single Ended Circuit amplifier is optimized for a wide range of load impedances, suitable almost all the headphones. This high bandwidth, extreme low noise design (lower than -104db) yields greater than 104 dB of dynamic range and exceeds the capabilities of the human ear, ensuring to handle any difficult headphone.

Beyond HD Applications
  • Can be used with most headphones regardless of Impedance.
  • The CB adds a dose of control and smoothness to the equation without cutting back on the detail at all. In fact, there’s more to be heard in the way of textures and subtleties, while the presentation is more refined and the low end tows the line right up to eardrum creaking levels.
Beyond HD Features
  • Line Input : 1 of RCA jack
  • Line Output : 1 of 6.4mm phone jack
  • System Requirements
  • Using in any equipment with Line-out or Pre-out function
Beyond HD Specifications
  • Amplifier Structure : Coupling capacitor less, Single-End with Class-A
  • Power Structure : Virtual-Ground power supply
  • Gain Control : Low (attenuation 20dB) / High (normal)
  • Volume Control : Series / shunt mode selectable
  • Headphone Impedance : 32 ohm to 600 ohm
  • Circuit Protect : Output short / over current protect
  • Main OPAmp : TI – OPA2604
  • Servo OPAmp : TI – TL072
  • Audio Performance (1kHz sine wave, 2Vrms output)
  • Frequency response (From 40Hz to 15kHz) : 40Hz +0.01dB, 15kHz -0.02dB
  • Noise level (1kHz, A-Weighted) : -104.7dB
  • Dynamic range (1kHz, A-Weighted) : 104.6dB
  • THD% : 0.0018%
  • Stereo crosstalk : -90.0dB

Connectivity

  • Line Input : 1 of RCA jack
  • Line Output : 1 of 6.4mm phone jack
  • System Requirements
  • Using in any equipment with Line-out or Pre-out function

Package Contents

  • Beyond HD
  • DC24V 0.5A power adapter
  • User manual
  • Warranty card
  • Wrench
