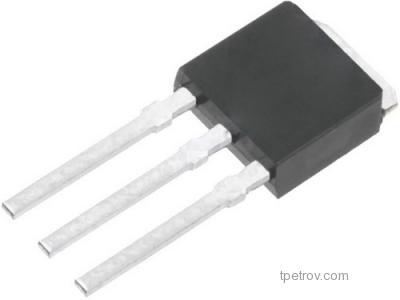

MTD3055VL Power MOSFET 12 Amps, 60 Volts N − Channel

DPAK − 3

Product Code: CT01055

$1.40

Pay it in 4 payments of $0.35 with Afterpay

Store Stock:
Henderson In Stock
Albany In Stock
Jump to:
Manuals and Downloads

Mororola

Power MOSFET
12 Amps, 60 Volts
N Channel DPAK−3

This Power MOSFET is designed to withstand high energy in the
avalanche and commutation modes. Designed for low voltage, high
speed switching applications in power supplies, converters and power
motor controls, these devices are particularly well suited for bridge
circuits where diode speed and commutating safe operating areas are
critical and offer additional safety margin against unexpected voltage
transients.

Product Information

    Transistor Polarity:N Channel
    Continuous Drain Current Id: 12A
    Drain Source Voltage Vds: 60V
    On Resistance Rds(on): 180mohm
    Rds(on) Test Voltage Vgs: 5V
    Threshold Voltage Vgs Typ: 1.5V
    Power Dissipation Pd: 48W
    Operating Temperature Min: -55°C
    Operating Temperature Max: 175°C
    Transistor Case Style: TO-252
    No. of Pins: 3
    SVHC: No SVHC (20-Jun-2013)
    Current Id Max: 12A
