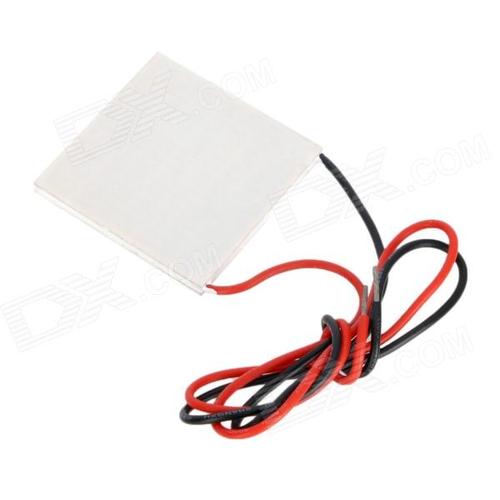

Peltier Thermoelectric Module 5 Amp
TEC1 12705
Product Code: COM0610
A thermoelectric module is a solid state device which can operate as a heat pump to transfer heat utilising the "Peltier effect."
Gets ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
Key Specifications:
Model: TEC1-12705
Dimensions: 40mm x 40mm x 3.6mm to 4.0mm
Operating Voltage: 12V (Max 15V-15.8V)
Rated Current: 5A (Max 5.2A-5.3A)
Cooling Capacity:
~45W - 57W
Max Temp Difference: 61°C - 75°C
Internal Resistance: 2.4 - 2.7
Wire Size: 16AWG or similar (~21cm length)
Sealant: Typically sealed with silicone rubber
Operational Notes:
Hot Side Marking: The side with text/numbers is generally the hot side.
Heat Sinking: Essential. Do not run for more than a few seconds without a heat sink on the hot side, or it will burn out.
Sides: One side gets very cold while the other gets hot. Apply thermal paste to both sides during installation.
Power Supply: A stable 12V DC, 5A+ power supply is required.
