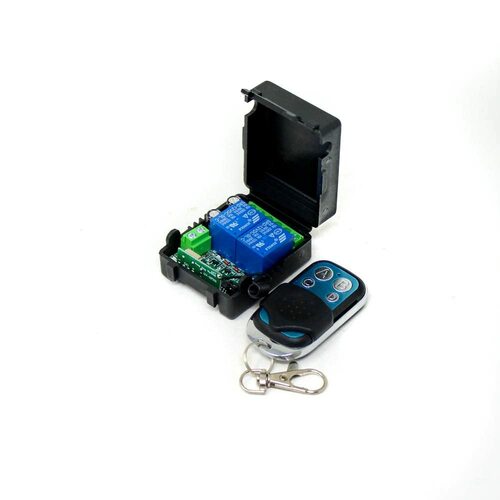

Remote Control Transmitter & Receiver - 12V, 2CH RF Wireless

2 Relays - 1 Remote - No battery

Product Code: MOD0215

$26.50

Pay it in 4 payments of $6.62 with Afterpay

Store Stock:
Henderson In Stock
Albany In Stock

Set to momentary

Remote Button A - Relay 1

Remote Button B - Relay 2

Product SPECIFICATION:

Input Power: DC 12V

Standby Current: <5MA

RF Frequency:  433M

RF working mode: superheterodyne

Receive sensitivity: >97dbm

Transmitting distance: 50 meters above

Decoding mode: MCU software decoding

Remote storage: 20 pcs

Support remote type: Learning code, Fixed code(Rolling code can be design)

Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

Wiring type: fixed terminal

Output Terminal: NO , NC , COM

Additional Remote:

Additional remotes can be codeded and added to this module see MOD0215

You can set the Remote Control to operate in 4 modes:

Momentary/Jog

Press and hold one key->ON; Release the key->OFF

Toggle/Self-Lock

Press one Key->ON; Press the same key again->OFF

Latched/Inter-Lock

Press one Key once->ON; Press another key once->OFF

Time delay mode

Press and hold one key->ON; Release the key->OFF(after 5 seconds, or 10 seconds, or 15 seconds, 3 ways of the time delay can be chosen)

How to   Delete the existing remote controls data?

Press the learning key on the Receiver Switch Module board 8 times, then wait for the LED indicator on the board  flash for 7 times, the existing data are deleted successfully. ( if the LED indicator on the board doesn’t Flash, Please check the Power Supply status, make it right, and try more times)



How to Set the Remote Mode:

1-Momentary/Jog Mode:

Press the learning key on the Receiver Switch Module board once , The ON-board Led indicator will Flash simultaneously .

Then press any of the remote key (Or which one your want to use) , the on-board LED indicator will flash 5 times to inform that the setting of momentary mode is successful .



2-Toggle/Self-Lock:

Press the learning key on the Receiver Switch Module board 2 times.The ON-board Led indicator will Flash simultaneously .Then press any of the remote key (Or which one your want to use) , the on-board LED indicator will flash 5 times to inform that the setting of toggle mode is successful .



3-Latched/Inter-Lock:

Press the learning key on the Receiver Switch Module board 3 times.The ON-board Led indicator will Flash simultaneously .

Then press first remote key (Like Key A), then press the  a second Key (Like Key B), the on-board LED indicator will flash 5 times to inform that the setting of latched mode successful . The first pressed key stands for on(Like Key A ), and the second pressed Key stands for off (Like Key B).



4-Time Delay

Press the learning key on the Receiver Switch Module board forth times, the time delay for 5 seconds .

Press the learning key on the Receiver Switch Module board fifth times, the time delay for 10 seconds .

Press the learning key on the Receiver Switch Module board sixth times, the time delay for 15 seconds .

The LED indicator will be off after the learning key operations.

Then Press one of the remote keys, LED flashes and turn off .

After 3 seconds, the LED indicator will be on again, delay mode set successfully .
