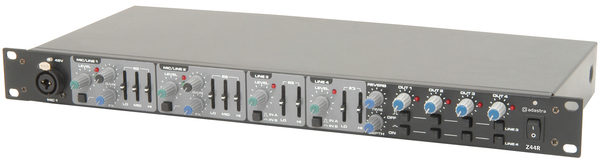

Z44R - Zone Mixer with DSP Reverb
1U Rack High
Product Code: 953.020
Z44R - MULTI-PURPOSE 1U MIXER
1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone. Applications vary from additional vocal mixing for DJ set-ups to multi-room zoning for venues and many other scenarios.
- Switchable 48V phantom power
- Lo-cut rumble filter for mic channels
- 3-band EQ for mic channels
- 2-band EQ for stereo channels
- Foot-switchable internal DSP reverb or ext. FX
- 4 stereo zone outputs with level controls
| Power supply | 230Vac, 50Hz (IEC) |
|---|---|
| Mic/line channel inputs | Ch 1 front combo and rear jack, Ch 2 combo (rear) |
| Mic/line channel controls | Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders |
| Line 3 + 4 stereo inputs | Input A (L+R) 6.3mm jack / Input B (L+R) RCA |
| Line 3 + 4 stereo controls | Level, In A/B and Lo/Hi EQ faders |
| Output connections | Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack |
| Output controls | Level, Line 3 on/off, Line 4 on/off |
| FX connections (6.3mm jack) | Footswitch, Send (defeats onboard reverb), L+R Return |
|---|---|
| FX controls | Reverb time, Depth (onboard or external level) |
| Indicators (LED) | Power, 48V, Mic/line signal+peak, Line peak, Output peak |
| Fire alarm contacts | Modular terminal, make-to-mute all except Mic 1 |
| Dimensions | 483 x 44 x 220mm |
| Weight | 2.75kg |
