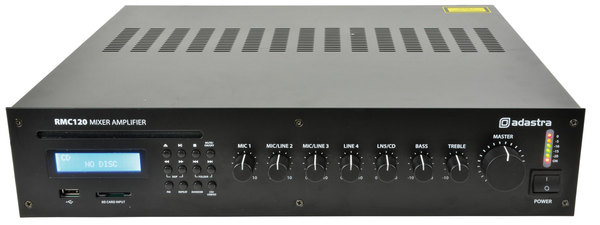

PA Mixer Amp - 5 Channel Input - CD/USB/SD/FM Radio
120 Watts - 100 Volt Line
Product Code: 953.141
$569.00
Pay it in 4 payments of $142.25 with
100V line mixer-amplifier with integral sound source. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A built-in CD player provides audio playback alongside a USB/SD media player with an integral FM radio tuner. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.
- 5 input channels
- USB/SD/FM audio player
- Slot load CD player
- External D.C. power option
- 8 Ohms or 100V line speaker output
- 2U 19" rack mountable
- Supplied with rack-mount ears
| Power supply | 240Vac, 50Hz (IEC) |
|---|---|
| DC power | 24Vdc (screw terminals) |
| Output power | 120Wrms |
| Output : signal | 2 x RCA |
| Inputs | Mic XLR, 2 x mic/line jack, 2 x RCA line |
| Controls | Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume |
| Audio source | Integral CD player & USB/SD/FM module |
| Equalizer : bass | 100Hz ±10dB |
| Equalizer : treble | 10kHz ±10dB |
|---|---|
| Rear panel switches | Phantom, Vox, Mic/Line (2 + 3) |
| Outputs : speaker | 100V / 8 Ohms / COM terminals |
| Phantom power | +20V (MIC 1 input) |
| THD | <1.0% |
| Dimensions | 433 x 320 x 89mm |
| Weight | 9kg |
