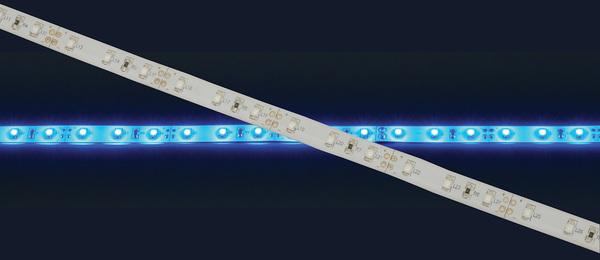

12V Single Colour LED Tape - 5m Reel - Blue

A range of IP65 single colour, super-bright LED tapes; supplied on 5m reels with a choice of 7 different colours, each with an adhesive back. The tape is easy to setup and quick to install, the low voltage supply and low power consumption makes them suitable for a wide variety of applications from homes to vehicles, shops to bars and even nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, this makes cleaning an easy task.

  • Can be cut to desired length (5cm intervals)
  • 60 ultra bright LEDs per metre
  • Available in 7 different colours
  • Self-adhesive backing for easy installation
  • Low voltage (12Vdc) and power consumption
  • Flexible and lightweight
  • Supplied with easy-to-use connection accessories
  • IP65 rated
  • Specification
  • Voltage12Vdc
  • Number of LEDs60/m
  • Beam angle140°
  • Cut intervals5cm
  • Reel length5m
  • LED spacing16mm
  • IP ratingIP65
  • Current400mA/m
  • Power consumption per metre4.8W/m
  • Cross-section10.5 x 2.55mm
  • Weight210g



Specification : Versions
  156.705UK 156.706UK 156.708UK 156.711UK 156.714UK 156.715UK 156.716UK
LED type SMD3528 SMD3528 SMD3528 SMD3528 SMD3528 SMD2835 SMD2835
Colour Red Pink Green Blue Yellow Cool white (6000K) Warm white (3000K)
Luminous flux (Lumens per metre) 60lm/m 120lm/m 130lm/m 30lm/m 45lm/m 720lm/m 720lm/m
Light intensity per LED (millicandelas) 600mcd 1000mcd 1200mcd 500mcd 600mcd 3996mcd 3996mcd

Pdficon Info / Manual
