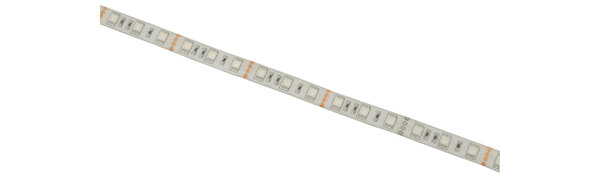

12V RGB LED Tape - 5 Meter Reel
RGB Colour
Product Code: 156.720
$99.00
Pay it in 4 payments of $24.75 with
12V RGB LED Tape 5.0m Reel
Super-bright IP65 rated RGB LED tape which when connected to a controller can produce any colour of the rainbow. Supplied on 5m reel with an adhesive back this tape is easy to setup and quick to install. Its low voltage supply and low power consumption makes it suitable for a wide variety of applications from homes to vehicles and from shops to bars and nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, making cleaning an easy task.
- 60 ultra bright LEDs per metre
- Self-adhesive backing for easy installation
- Low voltage (12Vdc) and power consumption
- Flexible and lightweight
- Supplied with solder connection accessories
- IP65 rated
For RBG controllers and power supplies, click here
For LED tape profiles, click here
Specification :
- Voltage12Vdc
- Beam angle140°
- LED type Epistar™ RGB5050
- Light intensity per LED (millicandelas)6000mcd
- Reel length5m
- IP ratingIP65
- Cross-section12 x 3mm
- Weight230g
Where more than 5m of tape is needed, an RGB repeater/amplifier should be used before each additional reel of 12V
tape, whereas 24V tape can be installed in 10m lengths between repeater/amplifiers by using the included 4-pin couplers
to connect 2 reels together in sequence. The amplifier repeater ensures that extension reels mimic the colour changes of
the original reel as dictated by the controller.
It is imperative that the power supply, controller and amplifier/repeater should have higher than the rated capacity in
Amps (A) for the current required to power the length(s) of LED tape installed. Please see the table below for reference
5m 6A
10m 12A
15m 18A
20m 24A
25m 30A
30m 36A
35m 42A
40m 48A
Specification : Versions
| 156.720UK | ||
|---|---|---|
| LEDs per metre | 60 | |
| Power consumption per metre | 14.4W | |
| Current | 1200mA per metre | |
| Cut intervals | 5cm | |
| LED spacing | 16mm | |
| Luminous flux (Lumens per metre) | 600lm/m |
