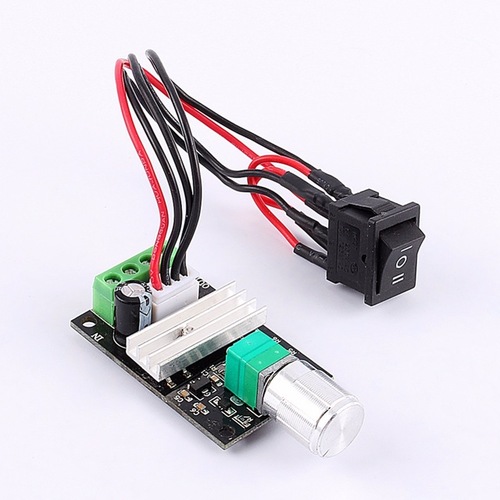

Motor Speed Control PWM DC6V12V24V Reverse Switch
3 Amp
Product Code: MOT0510
- DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
- The input power range is DC6-28V
- 3 Amp
- Duty Cycle adjustable range is 5%-100%
- Control the forward or reverse direction and the stop of DC motor by switch
- Potentiometer with switch function
- The switch cable length 16.5cm/6.49"
- Item Size: 32*50*15mm/1.25*1.96*0.59"
- Operating instruction:
- Before you attempt to wire the controller, make sure power is off
- WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER
- 1. Connect wires refering to the “wiring diagram”
- 2. Turn on the power, and adjust the potentiometer
- 3. The LED indicates the power up and the speed of motor
